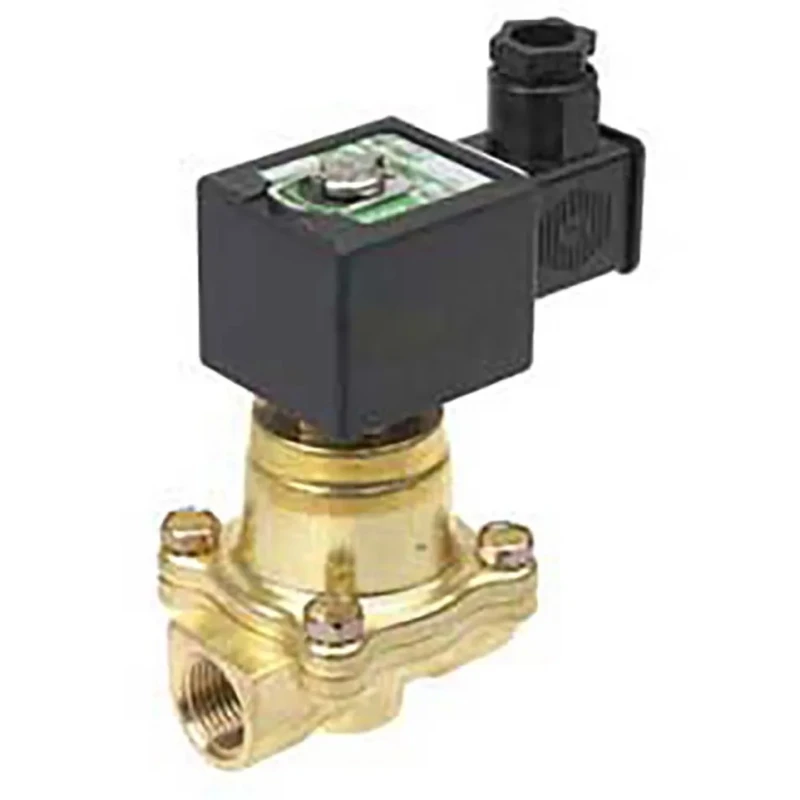

EMERSON ? ASCO 2 Port Normally Closed Solenoid Valve 110V AC Brass Body E222B004-004

EMERSON ASCO E222B004-004 is a high-quality 2 port solenoid valve designed primarily for hot water and steam service in industrial applications. It is normally closed (NC) with a pilot-operated design and a robust brass body providing durability and minimizing heat radiation loss. The valve operates from a 110V AC power supply and is built to handle maximum operating pressures up to 9 bar, with operating temperatures ranging between -20°C to 40°C.

This valve is engineered with servo assist technology to enable effective pilot operation and fast actuation within 1000 milliseconds for opening and 1 second for closing. The valve features Rp (ISO 7) threaded connections for both inlet and outlet, with a 25 mm orifice diameter to allow substantial fluid flow, with a flow factor Kv of 12 m³/h. Its compact design supports mounting in any position and includes DIN plug electrical connections for easy installation and maintenance.

Certified under stringent international standards including Pressure Equipment Directive 97/23/EC, CSA, IEC 335, UL, ISO 4400, and EN 175301-803, form A, this valve meets industrial reliability and safety requirements. It finds application across industrial, manufacturing, HVAC, and water treatment sectors for controlling fluid and steam flow. The valve body and operational features ensure energy efficiency and prolonged service life in demanding environments.

The valve's default position is normally closed, ensuring safety in control systems, and it is designed to operate efficiently within defined thermal and pressure limits. With its proven design and certifications, this valve suits a wide range of mechanical and fluid power use cases, delivering precise flow control in industrial valve assemblies.

The valve features a compact brass body minimizing heat radiation loss. Suitable for 2 port, normally closed valve operation in steam and hot water applications. Operates with a maximum pressure rating of 9 bar and temperature range from -20°C to 40°C.

Valve includes servo assist for efficient pilot operation providing fast response. Equipped with Rp (ISO 7) threaded inlet and outlet connections and 25 mm orifice diameter. Certified to Pressure Equipment Directive 97/23/EC, CSA, IEC 335, UL, and ISO 4400 / EN 175301-803, form A standards.

Maximum valve opening and closing times are 1000 ms and 1 second respectively to ensure precise flow control. Can be mounted in any position due to compact design and DIN plug connection. Explore EnvMart’s range of industrial Solenoid Valves for reliable fluid control solutions.
