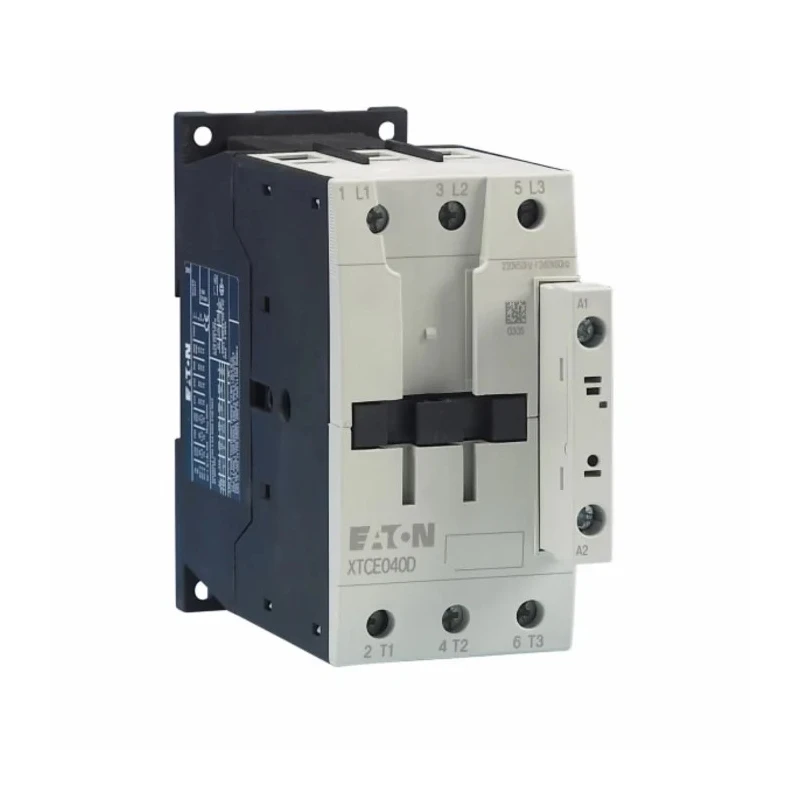

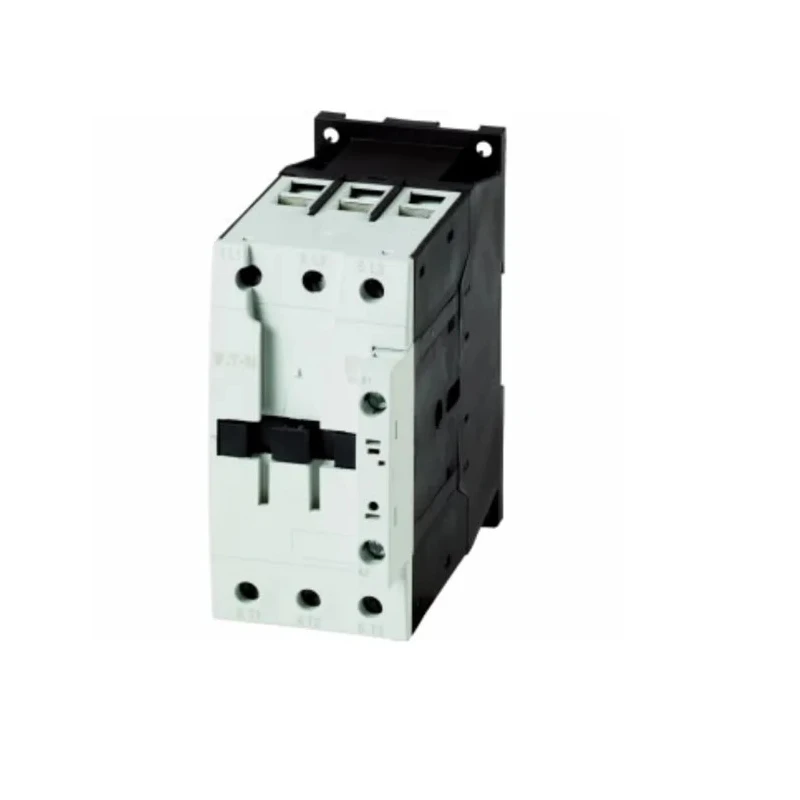

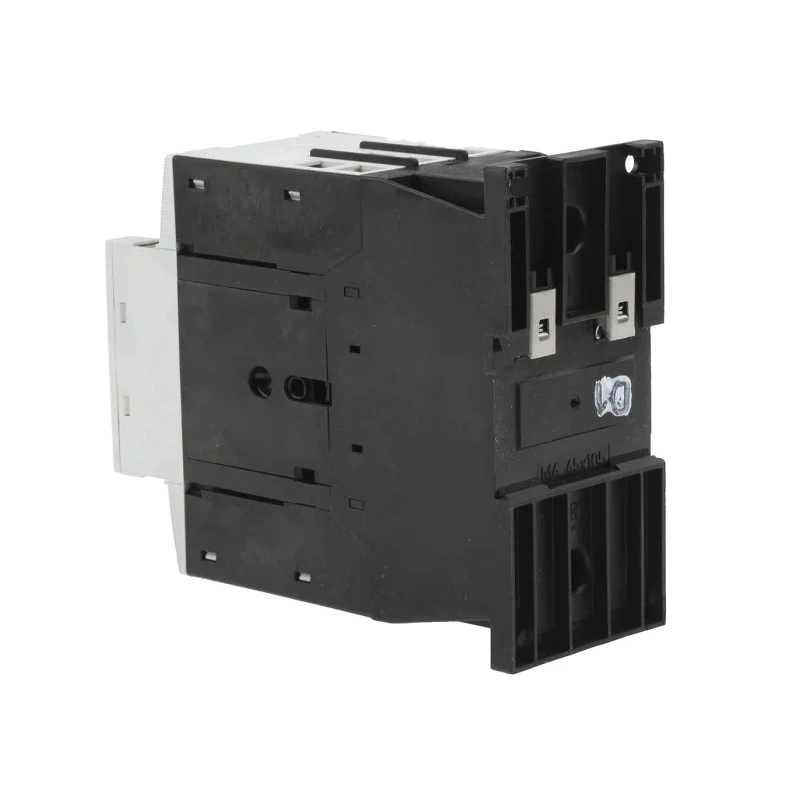

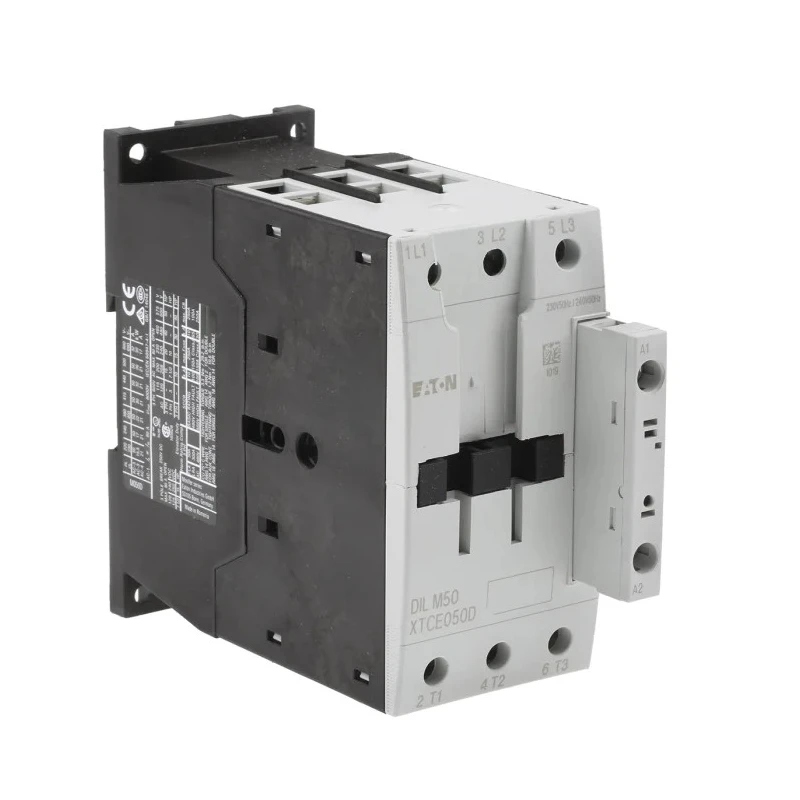

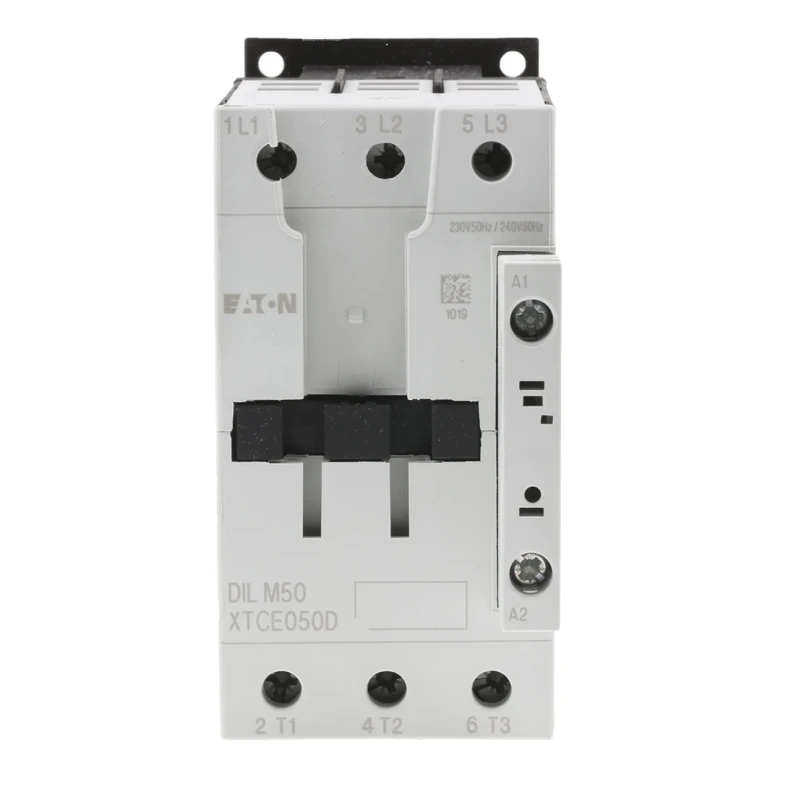

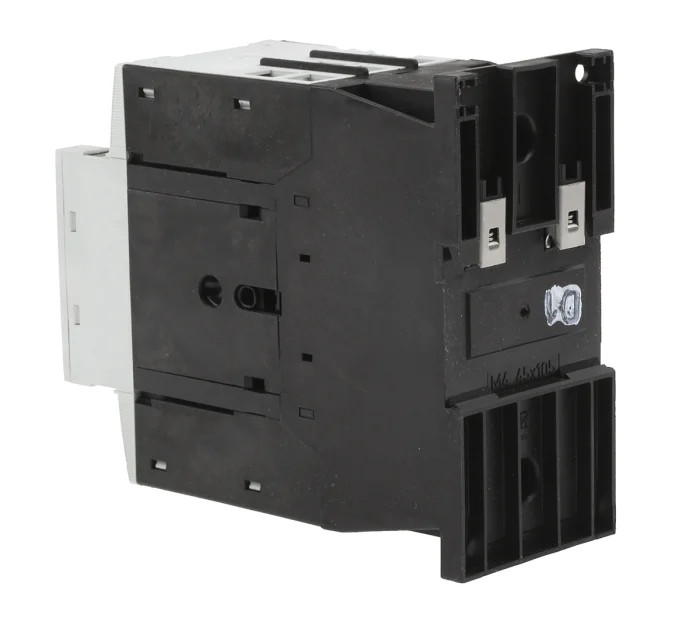

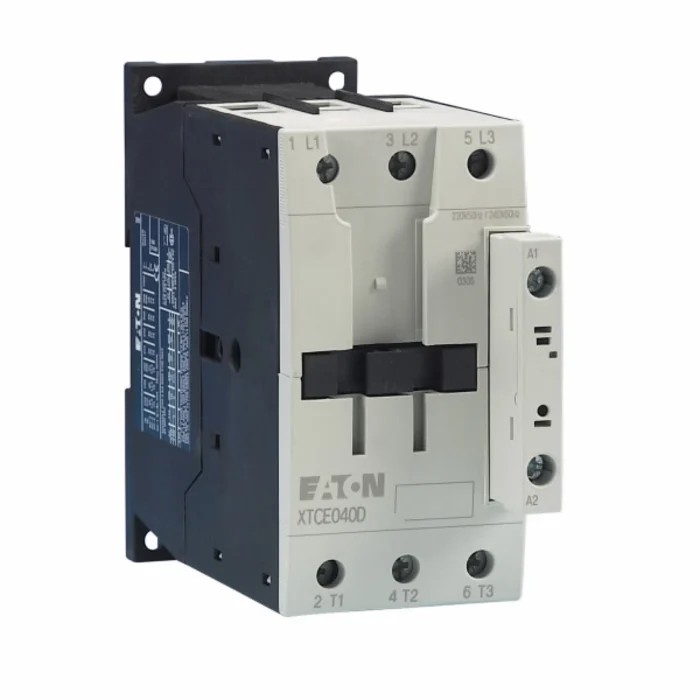

Eaton DILM Contactor Motor Control 3-Pole 50A 22 kW 230V AC Coil 277838 DILM50(230V50/60HZ)

Eaton 277838 DILM50(230V50/60HZ) contactor is engineered for motor control tasks, featuring a 3-pole design with a 230V AC coil and a contact current of 50A. This contactor offers a robust power rating of 22 kW suitable for heavy-duty electrical systems.

Its integrated design supports motor control and resistive load applications with three normally open main contacts and an auxiliary contact, facilitating reliable switching and circuit management in industrial environments.

Construction includes finger-proof and back-of-hand-proof safety features to minimize electric shock hazards during handling and maintenance. The screw clamp terminal type assures secure and stable electrical connections for system reliability.

The contactor maintains operational integrity across a wide temperature range from -25°C to 45°C, making it suitable for harsh industrial environments. Its compact dimensions of 115mm length, 77mm width, and 147mm depth allow flexible surface mount installation where space constraints exist.

Compliance with international standards including CSA, IEC/EN 60947, UL, and VDE 0660 guarantees high quality and safety for commercial and industrial use. Eaton contactors have a notable mechanical lifespan rated at 10 million operations, promising long-lasting reliability.

This device is primarily suited to controlling three-phase electric motors, enabling regulation of starting, stopping, and reversing functions in electrical control panels and motor management systems.

Equipped with a 230V AC coil voltage for reliable operation. Designed for motor control and resistive load applications with 3 normally open contacts. Features screw clamp terminals for secure electrical connections. Operates safely within a temperature range from -25°C to 45°C.

Compact dimensions of 115mm length, 77mm width, and 147mm depth facilitate surface mounting. Complies with CSA, IEC/EN 60947, UL, and VDE 0660 standards for safety and quality. Mechanical lifespan rated at 10,000,000 operations ensuring durability.

Includes 1 auxiliary normally open contact for enhanced control options. Manufactured in Romania to ensure high production standards. Explore the Eaton range of Contactors and control gear at EnvMart to find reliable solutions for industrial automation and electrical control applications.
