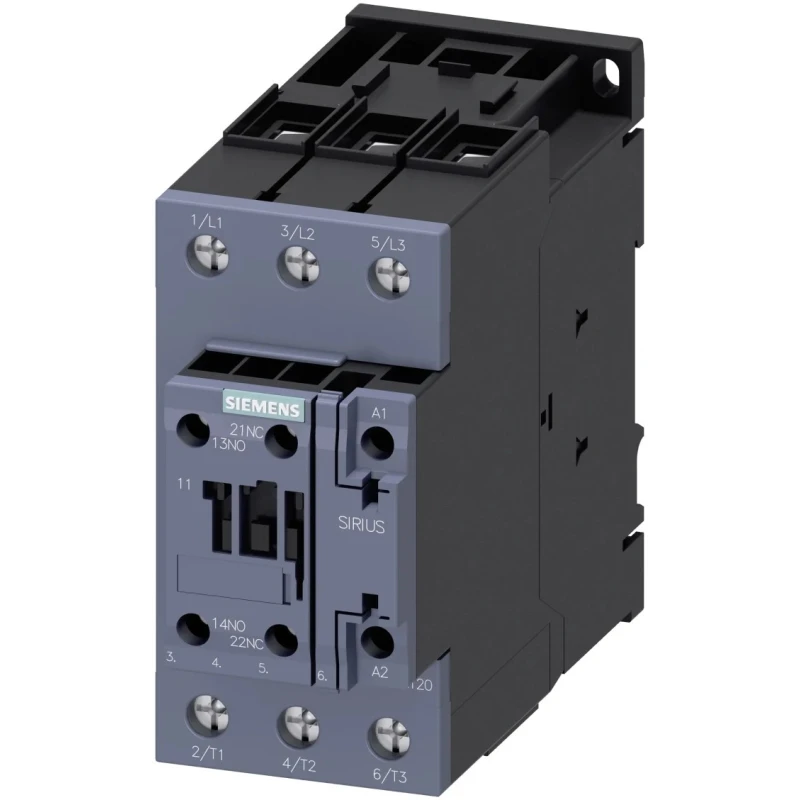

Siemens 3RT2 Contactor, 230V AC Coil, 3-Pole, 40 A, 18.5 kW, 220V Control Voltage, 3 NO, 690V AC 3RT2035-1AP60
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Function | Motor Control |
| Length | 55mm |
| Model | 3RT2035-1AP60 |
| Depth | 113.4mm |
| Width | 130mm |
| Mount Type | DIN Rail |
| Series | 3RT2 |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, VDE, UL, UKCA, RoHS, EAC, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Low Carbon Manufacture |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 220V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3PST |
Key Features
- Operates with a coil voltage of 230V AC for reliable switching.
- Supports a control circuit voltage of 220V for auxiliary operations.
- Equipped with 3 normally open (NO) main contacts for efficient power control.
- Rated for contact current of 40A and power rating of 18.5 kW at 220V.
- Mounts easily on DIN rail for compact installation.
- Designed to operate within a temperature range of -25°C to 60°C.
- Features screw clamp terminals ensuring secure connections.
- Manufactured in Germany with compliance to multiple international standards.
Product Description
Siemens 3RT2035-1AP60 is a 3RT2 series contactor designed for industrial motor control applications. It features a 230V AC coil voltage and supports a control circuit voltage of 220V, making it suitable for various automation and control gear installations. This device includes 3 poles with 3 normally open contacts capable of handling a contact current of 40A and a power rating of 18.5 kW at 220V.
The contactor is equipped with 2 auxiliary contacts configured as 1 normally open and 1 normally closed, enabling extended control and signaling capabilities in complex circuits. Installation is simplified with a DIN rail mount and screw clamp terminals that provide secure and reliable electrical connections.
Operating temperatures range from -25°C to 60°C, allowing use in diverse environments. Its compact dimensions (130mm width, 55mm length, 113.4mm depth) contribute to efficient space management in control panels or electrical enclosures. This contactor adheres to numerous international certifications including CCC, VDE, UL, UKCA, RoHS, EAC, and CSA, ensuring compliance with global safety and quality requirements.
Manufactured in Germany, it is part of Siemens' commitment to high-quality, reliable components engineered for demanding industrial, manufacturing, electrical automation, and HVAC applications. The robust 3RT2 range is known for excellent reliability and low carbon footprint, placing it among environmentally conscious products.
Operates at 230V AC coil voltage for effective switching performance. 3 poles and 40 A contact current rating support medium power motor control tasks. Auxiliary contacts enhance control options with 1 NO and 1 NC configuration.
Compact DIN rail mount design and screw clamp terminals ensure ease of installation and durability. Wide operating temperature and global certifications guarantee resilience and safety.
This Siemens contactor is ideal for automation systems, factory and process control, HVAC motor switching, and industrial electrical panels. Browse more Siemens Contactors and automation components at EnvMart for comprehensive solutions to your electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens 3RT2035-1AP60 operates with a coil voltage of 230V AC.
This model has a maximum contact current rating of 40A.
It has a power rating of 18.5 kW at 220V.
The contactor features 3 poles with 3 normally open (NO) contacts.
The dimensions of the contactor are 130mm in width, 55mm in length, and 113.4mm in depth.
It operates within a temperature range of -25°C to 60°C.
It is equipped with screw clamp terminals for secure connections.
This model includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The contactor supports a control circuit voltage of 220V.
It is designed for DIN rail mounting, allowing for compact installation.
It complies with multiple international standards including CCC, VDE, UL, UKCA, RoHS, EAC, and CSA.
The Siemens 3RT2035-1AP60 is manufactured in Germany.
