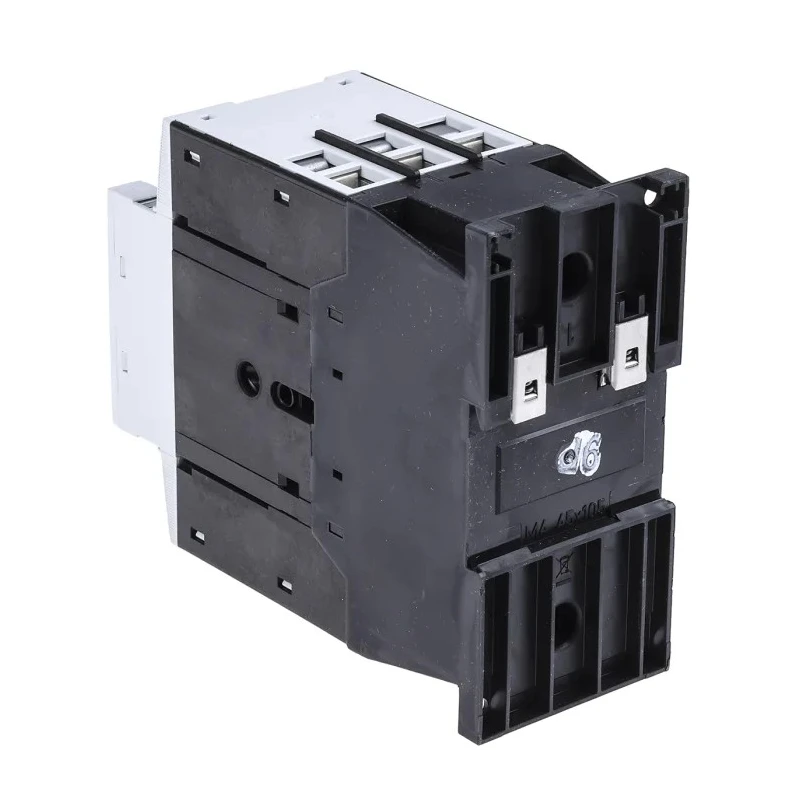

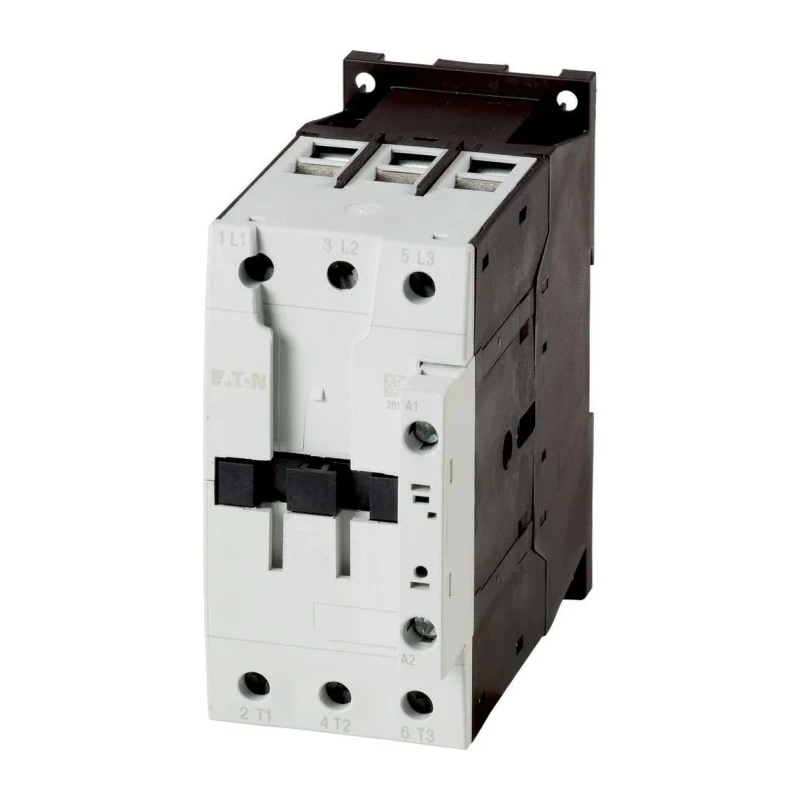

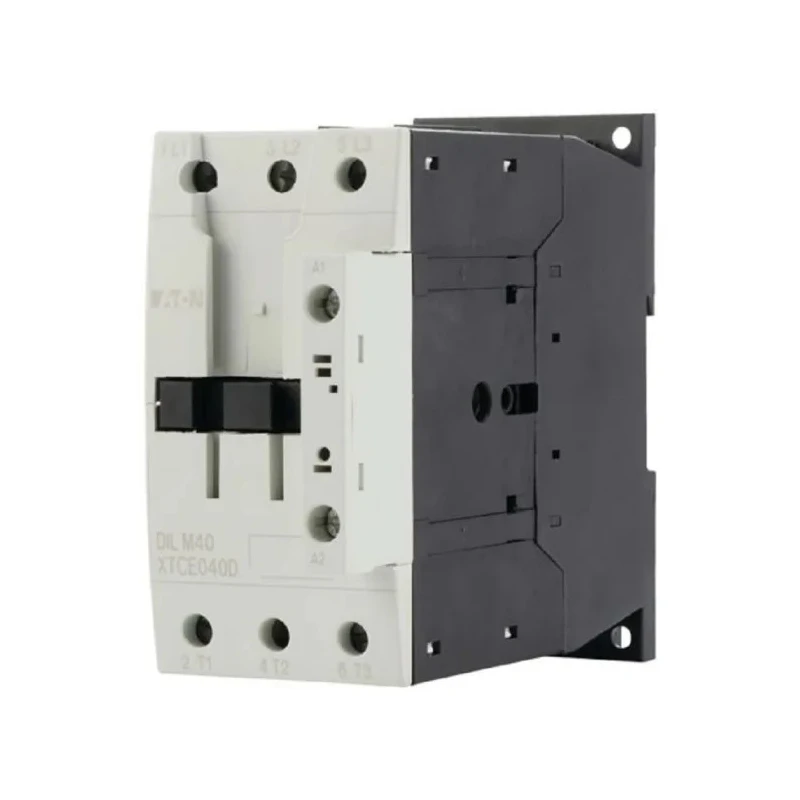

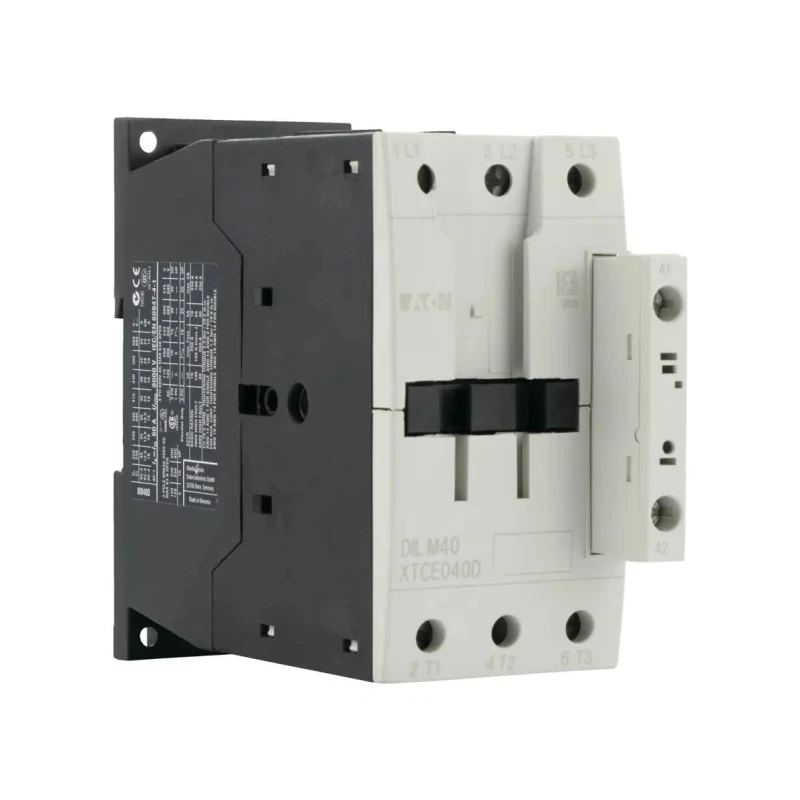

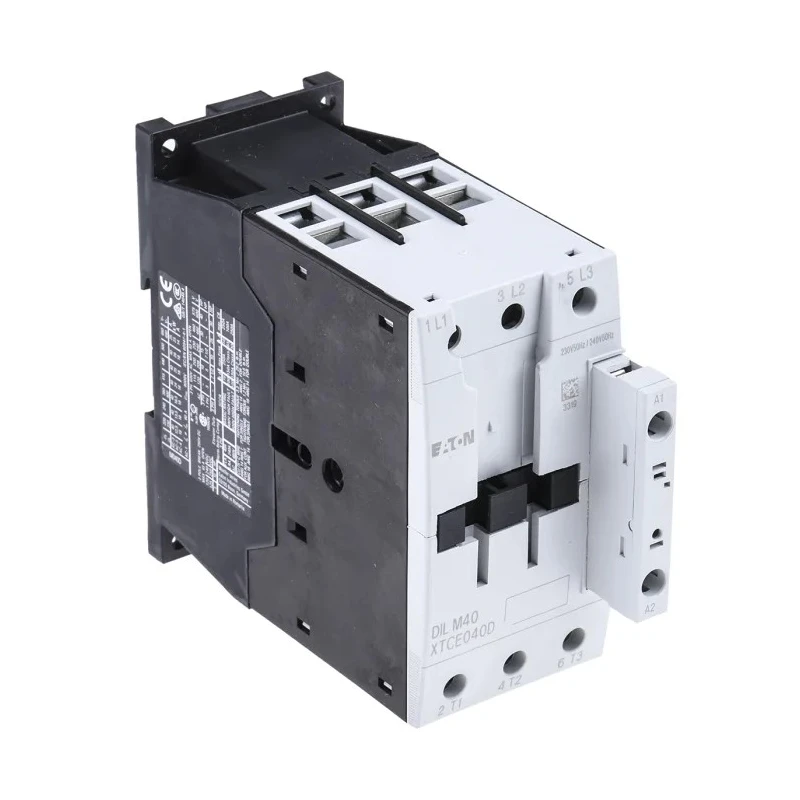

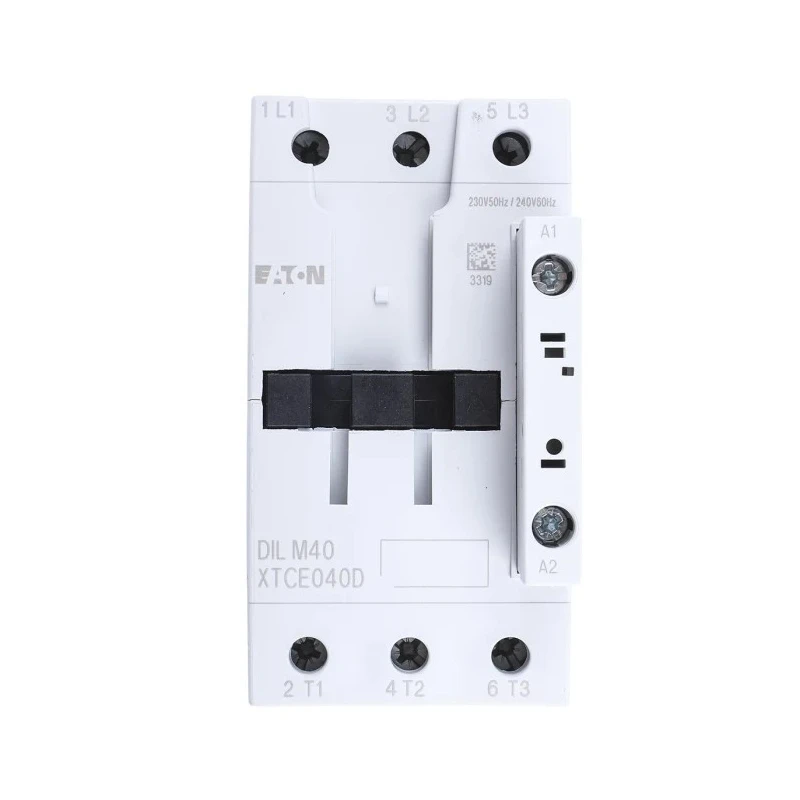

Eaton DILM Series Contactor 3-Pole 40 A 18.5 kW 230V AC Coil 277774 DILM40(230V50/60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 115mm |
| Model | 277774 DILM40(230V50/60HZ) |
| Depth | 147mm |
| Width | 77mm |
| Mount Type | Surface |
| Series | DILM |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 45°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0660, UL, IEC/EN 60947, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 40A |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Features a 3-pole design suitable for complex circuit connections.
- Operates efficiently with a coil voltage of 230V AC and contact voltage of 400V AC.
- Equipped with 3 Normally Open (NO) main contacts and 1 Normally Open auxiliary contact.
- Compact dimensions of 115 mm length, 77 mm width, and 147 mm depth ensure easy installation.
- Operates reliably across a temperature range from -25°C to +45°C.
- Designed for surface mounting with screw clamp terminals for secure connections.
- Mechanical lifespan rated at up to 10 million operations and capable of 5,000 operations per hour.
- Complies with industry standards including VDE 0660, UL, IEC/EN 60947, and CSA.
Product Description
Eaton 277774 DILM40(230V50/60HZ) Contactor is a high-performance 3-pole contactor designed for motor control and resistive load applications. It features a coil voltage of 230V AC and supports a contact voltage rating of 400V AC, making it suitable for a wide range of industrial automation, power supply, and IE3 motor applications.
The contactor delivers a contact current of 40 A and a power rating of 18.5 kW at 230V AC, ensuring robust and reliable operation under demanding electrical loads. Its compact design with dimensions 115 mm (L) x 77 mm (W) x 147 mm (D) allows for easy installation even in restricted spaces. The surface mount type with screw clamp terminals provides secure and quick wiring connections.
Optimized for durability, this contactor has a mechanical lifespan of up to 10 million operations and an operational capability of up to 5,000 operations per hour. It performs reliably within an operating temperature range of -25°C to +45°C. The device includes 3 Normally Open (NO) main contacts and a 1 NO auxiliary contact for versatile control options.
3-pole configuration for flexible circuit integration. 230V AC coil voltage with 400V AC contact voltage. 40A contact current with 18.5 kW power rating. Surface mount with screw clamp terminals. Reliable operation over wide temperature range.
Mechanical lifespan up to 10 million operations. Supports 5,000 operations per hour. Complies with VDE 0660, UL, IEC/EN 60947, CSA standards. Manufactured in Romania ensuring quality assurance.
This Eaton contactor is excellently suited for industrial automation environments, HVAC motor control, manufacturing processes, and other electrical control systems requiring dependable switching devices. Its robust design and compliance with major international standards ensure optimal performance and safety. Choose the 277774 DILM40(230V50/60HZ) Contactor for effective motor control in challenging industrial conditions.
Explore our wide selection of Industrial Automation and Control Gear from reputed brands like Eaton at EnvMart, your trusted platform for industrial electrical equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILM40 contactor has a power rating of 18.5 kW at 230V AC.
This model can handle a contact current of 40 A.
The dimensions of the Eaton DILM40 contactor are 115 mm in length, 77 mm in width, and 147 mm in depth.
The coil voltage for the DILM40 contactor is 230V AC.
The contact voltage rating of this contactor is 400V AC.
This contactor features a 3-pole design.
The operational temperature range for the Eaton DILM40 contactor is from -25°C to +45°C.
It uses screw clamp terminals for secure connections.
The mechanical lifespan of the Eaton DILM40 contactor is rated up to 10 million operations.
This contactor complies with VDE 0660, UL, IEC/EN 60947, and CSA standards.
The auxiliary contact configuration includes 1 Normally Open (NO) contact.
It is suitable for motor control and resistive load applications.
