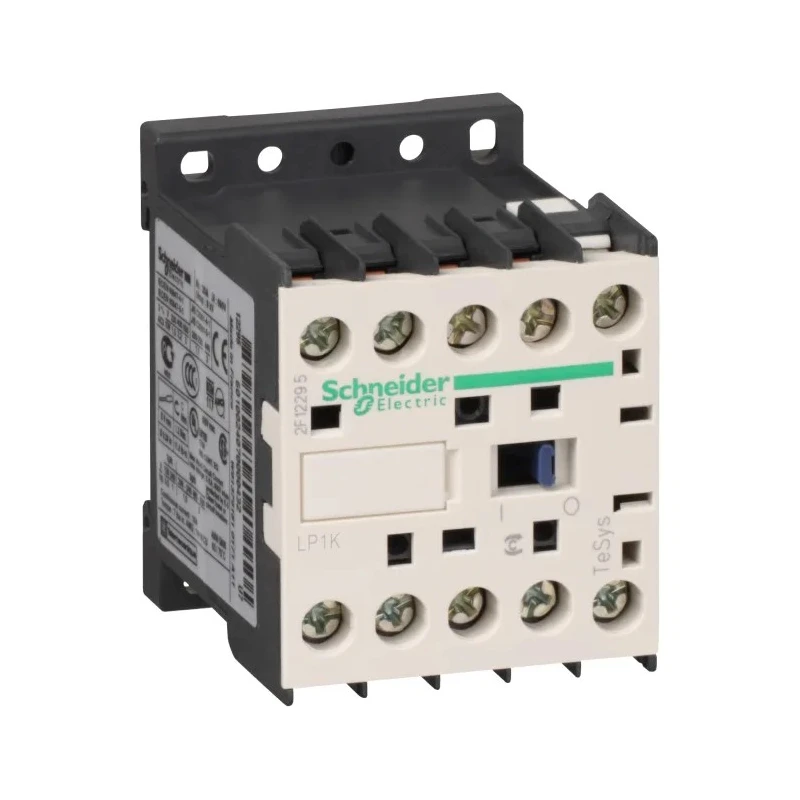

Schneider Electric LP1K Series 3-Pole Contactor with 110V DC Coil, 12A Contact Current, 3 NO, 690V AC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LP1K |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LP1K |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 110V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Features a 110V DC coil suitable for reliable control circuit operation.
- Includes 3 poles with 3 normally open (NO) contacts for efficient power switching.
- Supports contact voltage up to 690V AC with a current rating of 12A.
- Mounts easily on DIN rail ensuring convenient installation.
- Equipped with 1 auxiliary contact configured as 1 NO for additional control functions.
- Operates reliably within temperature range from -25°C to 50°C.
- Designed for motor control and resistive load utilization categories AC1 and AC3.
- Terminals are screw type for secure connections.
Product Description
Schneider Electric LP1K1210FD is a 3-pole contactor featuring a 110V DC coil and contact current capacity of 12A designed for robust motor control and resistive load applications. It supports a contact voltage of 690V AC and utilizes screw-type terminals for secure and reliable electrical connections.
This contactor is part of the LP1K series, engineered for industrial and commercial environments requiring durable switching solutions with options for easy DIN rail mounting. It includes one auxiliary contact configured as normally open, facilitating additional control schemes.
The device operates reliably in ambient temperatures ranging from -25°C to 50°C and meets stringent CSA and UL approvals, ensuring compliance with safety and performance standards. Its compact design with dimensions of 58mm length, 57mm depth, and 45mm width allows integration into varied electrical control panels.
Features a 110V DC coil suitable for reliable control circuit operation. Includes 3 poles with 3 normally open (NO) contacts for efficient power switching. Supports contact voltage up to 690V AC with a current rating of 12A.
Mounts easily on DIN rail ensuring convenient installation. Equipped with 1 auxiliary contact configured as 1 NO for additional control functions. Operates reliably within temperature range from -25°C to 50°C. Designed for motor control and resistive load utilization categories AC1 and AC3.
Terminals are screw type for secure connections. Compact dimensions: 58mm length, 57mm depth, and 45mm width. Complies with CSA and UL safety standards ensuring quality and reliability.
This contactor is ideal for electrical automation, industrial motor control, HVAC systems, manufacturing plants, and other applications requiring efficient power switching. Its design supports sustainability initiatives as it is designated a Better World product designed for disassembly.
Explore the range of Schneider Electric Contactors and related accessories available to enhance your control gear solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 12A.
This contactor features a coil voltage of 110V DC.
It supports a maximum contact voltage of 690V AC.
It has 3 poles with 3 normally open (NO) contacts and 1 auxiliary contact configured as 1 NO.
The dimensions of this model are 58mm in length, 57mm in depth, and 45mm in width.
It operates reliably within a temperature range from -25°C to 50°C.
This model utilizes screw-type terminals for secure connections.
It mounts easily on DIN rail, ensuring convenient installation.
It is designed for motor control and resistive load applications, suitable for AC1 and AC3 utilization categories.
This contactor complies with CSA and UL safety standards.
It is designed for disassembly, supporting sustainability initiatives.
The primary function of this model is motor control and resistive load switching.
