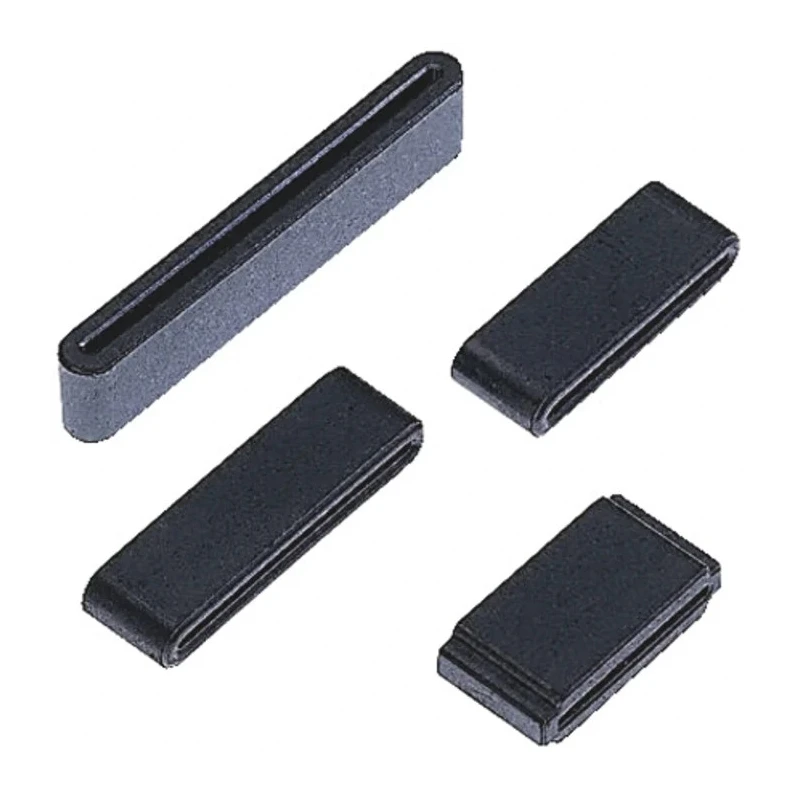

KEMET Flat Cable Ferrite Solid Core 20 Max Wires 1.5 mm Internal Height 27 mm Internal Width ESD-FPL-20-15

KEMET ESD-FPL-20-15 Flat Cable Ferrite is a solid core ferrite designed for use with flat cables containing up to 20 wires. It features an internal width of 27 mm and an internal height of 1.5 mm, tailored to fit ribbon or flat cable profiles typically found in consumer electronics.

This ferrite core effectively suppresses electromagnetic interference (EMI) and radio frequency interference (RFI), improving signal integrity in digital devices. It is made of ferrite material known for magnetic permeability and interference absorption capabilities.

The solid core design provides enhanced mechanical strength and consistent EMI attenuation across frequencies up to 300 MHz. It delivers an impedance of 100 ohms at 100 MHz, making it suitable for filtering noise in audio, video, and data communication cables.

The ferrite element is not openable and must be threaded over cables prior to connector attachment. It is typically secured via heat shrink sleeving or adhesive methods to maintain its position on the cable.

Compact dimensions (external width 33.2 mm, depth of 15 mm and height of 8 mm) allow convenient integration into cable assemblies without adding excessive bulk or weight. This product conforms to RoHS environmental regulations, ensuring it is free from hazardous substances.

Constructed from ferrite material for high EMI suppression. Solid core design suits flat cable applications. Fits cables up to 20 wires with 27 mm internal width. Impedance of 100Ω at 100 MHz noise attenuation. Maximum frequency up to 300 MHz.

Compact external dimensions: 33.2 mm W x 15 mm D x 8 mm H. Not openable; requires threading over cable before connector installation. Compliance with RoHS standards.

Typical applications include consumer electronics devices that require noise reduction on flat ribbon cables, such as display controllers and data transmission lines. This Ferrite Core enhances device performance by minimizing interference and improving signal quality.
