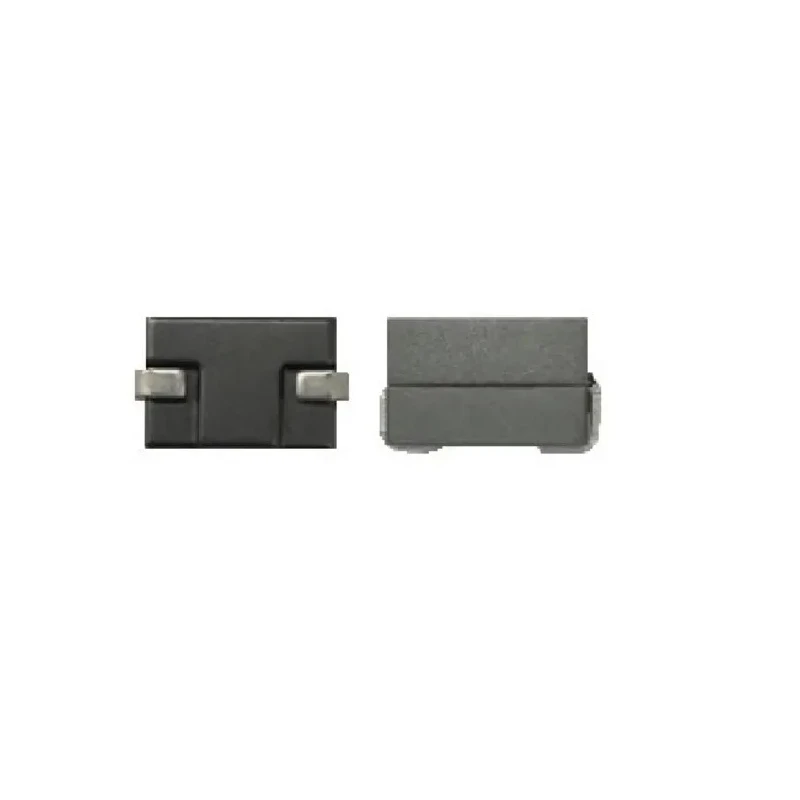

Abracon SMT Shielded Power Inductor with Manganese Zinc Ferrite Core 150 nH ±20% 70 A Idc AMSLA-1070-150NM-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon SMT Shielded Power Inductor with Manganese Zinc Ferrite Core 150 nH ±20% 70 A Idc AMSLA-1070-150NM-T

Name: Abracon SMT Shielded Power Inductor with Manganese Zinc Ferrite Core 150 nH ±20% 70 A Idc AMSLA-1070-150NM-T
Brand: Abracon
SKU: 275319
Price: 0.97 USD
Availability: InStock



Category Ferrite Core Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	7mm
Length	10.2mm
Model	AMSLA-1070-150NM-T
Depth	1.3mm
Packaging	Tape & Reel
Series	AMSLA-1070
Maximum Operating Temperature	125°C
Sub Type	High Power Molded Inductor
Minimum Operating Temperature	-40°C
Core Material	Manganese Zinc Ferrite
Inductance	150nH
Standards/Approvals	RoHS, RoHS II, ISO9001-2015
Package/Case	SMT
Maximum DC Current	70A
Maximum DC Resistance	410μΩ
Inductance Tolerance	±20 %
Inductor Construction	Molded SMD

Key Features

Constructed with a manganese zinc ferrite core ensuring high efficiency.
Molded SMD design provides a robust shielded power inductor solution.
Suitable for use in solar inverter, industrial, and robotics power applications.
Supports operating temperature range from -40°C up to 125°C.
Offers a maximum DC resistance of 410 μΩ for minimal power loss.
Designed to operate efficiently between 100 kHz and 2 MHz frequency range.
Complies with RoHS, RoHS II, and ISO9001-2015 standards for environmental and quality assurance.
Delivered in tape and reel packaging suitable for automated assembly processes.

Product Description

Abracon AMSLA-1070-150NM-T is a high power SMT shielded power inductor with a manganese zinc ferrite core, offering an inductance of 150 nH with ±20% tolerance and capable of handling a maximum DC current of 70 A. Its molded SMD construction enhances durability and electrical performance, making it suitable for demanding industrial and power electronics applications.

This inductor is designed specifically for solar inverter circuits, industrial machinery, and robotics where power density and soft saturation characteristics are critical. Operating temperature ranges from -40°C to 125°C, accommodating harsh working environments.

With a compact footprint of 10.2 mm length, 7 mm height, and 1.3 mm depth, this inductor fits SMT assembly lines and is delivered in tape and reel packaging to enhance manufacturing efficiency and yield consistency.

High power density with shielded construction for electromagnetic interference reduction. Manganese zinc Ferrite Core ensures low energy losses and extended component life. Inductance tolerance of ±20% meets precision requirements for power conversion systems.

Low DC resistance of 410 μΩ minimizes energy dissipation during operation. Compliant with international standards including RoHS, RoHS II, and ISO9001-2015 guarantees quality and safety. Robust molded design suitable for long-term reliability in industrial and commercial deployments.

Ideal for frequency ranges between 100 kHz and 2 MHz in power applications.

This Abracon power inductor exemplifies industrial-grade quality for electronics manufacturers requiring dependable and efficient inductors for power supply designs. Browse related surface mount inductors for enhanced sourcing at EnvMart for comprehensive industrial component solutions.
