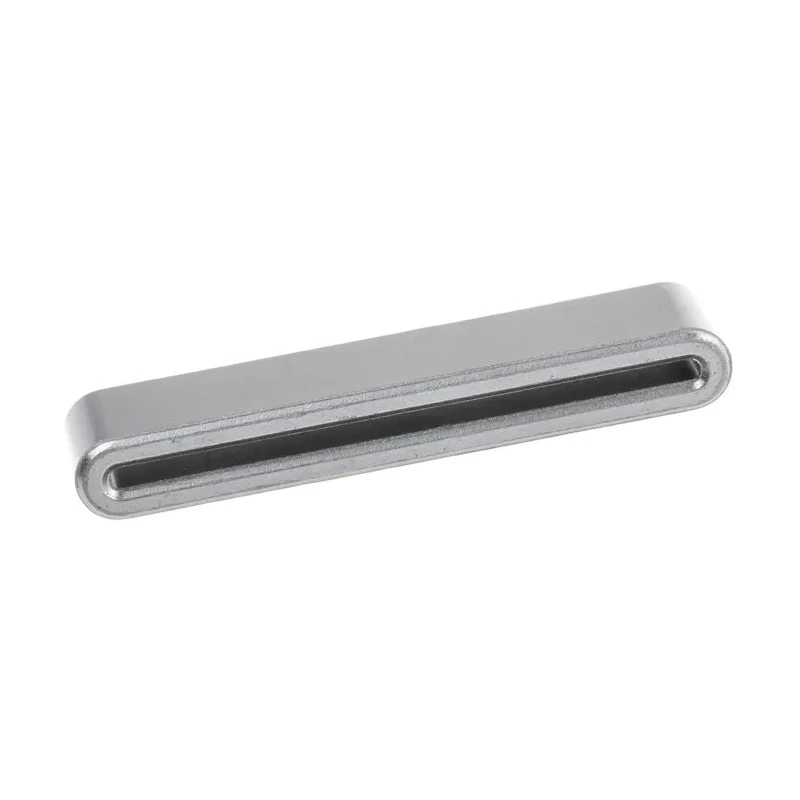

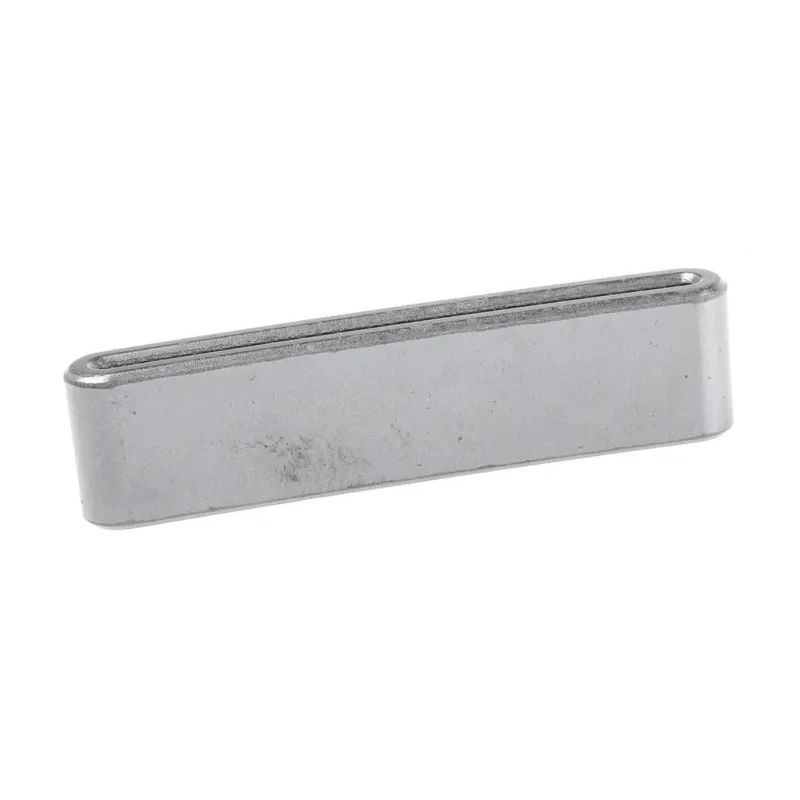

Wurth Elektronik Flat Cable Ferrite Core 1.3 mm 44 mm, 34 Max. Wires 7427218

Wurth Elektronik 7427218 Flat Cable Ferrite Core is engineered to eliminate severe electromagnetic interference (EMI) on flat ribbon cables with a maximum of 34 wires. This flat cable core features an internal width of 44 mm and an internal height of 1.3 mm, making it ideal for use in compact electronic assemblies such as digital devices and display controllers.

Fabricated from specialized 4W620 ferrite material, the core delivers an impedance of 66 ohms at 100 MHz, effectively suppressing high-frequency noise and improving overall signal integrity. Its non-openable design provides secure shielding without the risk of loosening after installation.

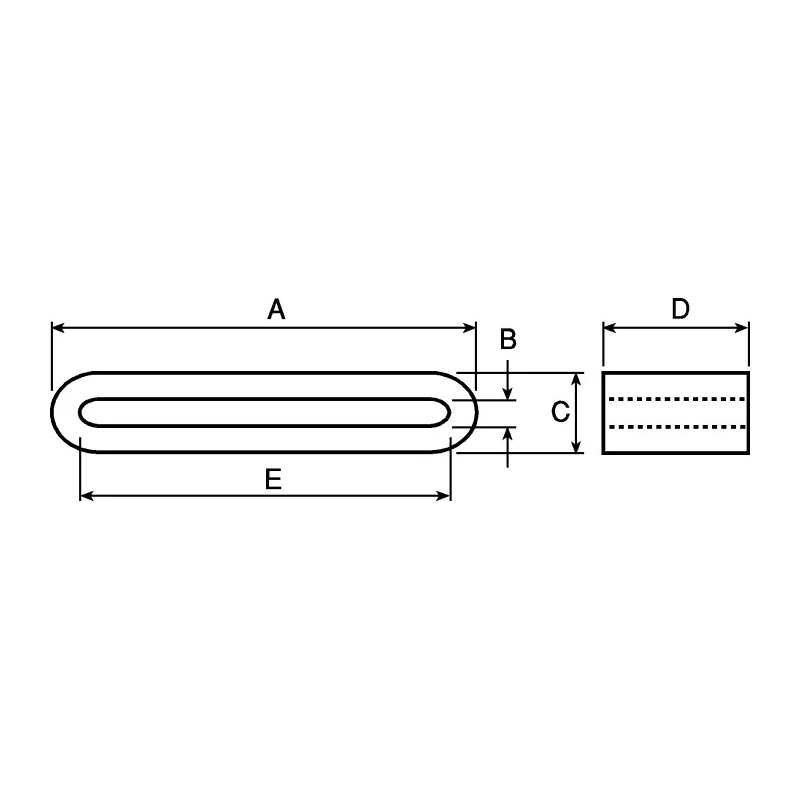

The external dimensions are 49.6 mm width and 6.5 mm height, accommodating common cable sizes while maintaining a low profile. It operates reliably across a temperature range of -25 degrees Celsius to +125 degrees Celsius, ensuring consistent performance in diverse industrial and commercial environments.

Installation is straightforward; the core simply slides over the cable before connectors are attached and can be fixed securely using heat shrink tubing or adhesive. This ferrite core complies with RoHS environmental standards, reflecting Wurth Elektronik's commitment to safety and sustainability.

Compact design with internal width 44 mm and height 1.3 mm. Impedance of 66 ohms at 100 MHz for effective noise suppression. Made from 4W620 ferrite material for high performance. Non-openable sleeve ensures secure interference protection.

External dimensions 49.6 mm width and 6.5 mm height. Ideal for ribbon cables with up to 34 wires. Wide operating temperature range from -25°C to +125°C. Easy installation with heat shrink or adhesive mounting options. RoHS compliant for environmental safety.

This flat cable Ferrite Core is widely used in electronics manufacturing, telecommunications, industrial automation, and other fields requiring EMC mitigation on flat ribbon cables. EnvMart customers can browse other Wurth Elektronik components and related EMI filter solutions in this category.
