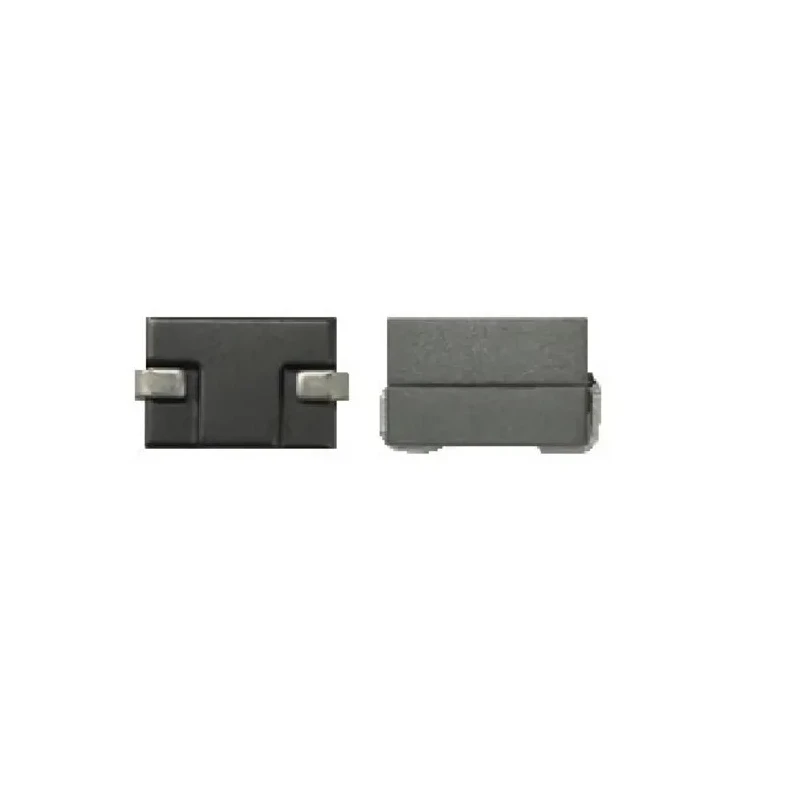

Abracon SMT Shielded Power Inductor with Manganese Zinc Ferrite Core 10 nH 20% Tolerance 50 A Idc AMSLA-1050-100NM-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon SMT Shielded Power Inductor with Manganese Zinc Ferrite Core 10 nH 20% Tolerance 50 A Idc AMSLA-1050-100NM-T

Name: Abracon SMT Shielded Power Inductor with Manganese Zinc Ferrite Core 10 nH 20% Tolerance 50 A Idc AMSLA-1050-100NM-T
Brand: Abracon
SKU: 275318
Price: 0.62 USD
Availability: InStock



Category Ferrite Core Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	7mm
Length	10.2mm
Model	AMSLA-1050-100NM-T
Depth	1.3mm
Packaging	2000 pieces per 7 in Reel
Series	AMSLA
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Manganese Zinc Ferrite
Inductance	10nH
Standards/Approvals	ANSI/ESD S20.20:2021 Electrostatic Control Standard
Package/Case	SMT
Maximum DC Current	50A
Maximum DC Resistance	0.42Ω
Inductance Tolerance	20 %
Maximum Self Resonant Frequency	2MHz
Standards/ApprovalsANSI/ESD S20.20	2021 Electrostatic Control Standard

Key Features

The inductor features a manganese zinc ferrite core for enhanced magnetic properties.
SMT package design suitable for surface mount applications.
Shielded construction reduces electromagnetic interference and improves efficiency.
Operating temperature range from -40°C to 125°C ensures reliability in harsh environments.
Maximum DC resistance of 0.42 ohms contributes to low losses during operation.
Designed for frequencies between 100 kHz and 2 MHz for versatile power applications.
Packaging includes 2000 pieces per 7-inch reel, facilitating efficient manufacturing integration.

Product Description

Abracon AMSLA-1050-100NM-T is a Surface Mount Technology (SMT) shielded power inductor featuring a manganese zinc ferrite core, designed for high power density applications.

This power inductor exhibits an inductance of 10 nH with 20% tolerance and supports a maximum DC current of 50 A, making it suitable for demanding industrial, solar inverter, power electronics, and robotics applications.

The shielded construction minimizes electromagnetic interference, allowing for efficient power transfer and reducing noise in sensitive circuits. The device operates reliably within a temperature range from -40°C to 125°C, addressing harsh industrial and commercial environment demands.

With a maximum DC resistance of 0.42 Ω and a maximum self-resonant frequency of 2 MHz, this component is optimized for frequencies between 100 kHz to 2 MHz. It comes packaged as 2000 pieces per 7-inch reel, making it convenient for automated PCB assembly lines.

This product complies with the ANSI/ESD S20.20:2021 Electrostatic Control Standard, ensuring electrostatic discharge protection to enhance durability and reliability in electronic manufacturing environments.

The inductor includes a manganese zinc Ferrite Core for high magnetic permeability. SMT package enables surface mounting on circuit boards for compact designs. Shielded design reduces electromagnetic interference in sensitive applications.

Wide operating temperature range ensures performance stability under varying conditions. Low DC resistance minimizes power loss and heat generation. Designed for use in solar inverters, industrial machinery, power supplies, and robotics systems.

High maximum DC current rating supports robust power handling. Comes in reel packaging optimized for high-volume manufacturing.

This Abracon SMT shielded power inductor is well-suited for industrial electronics, power management, manufacturing, and laboratory equipment requiring reliable inductive components.
