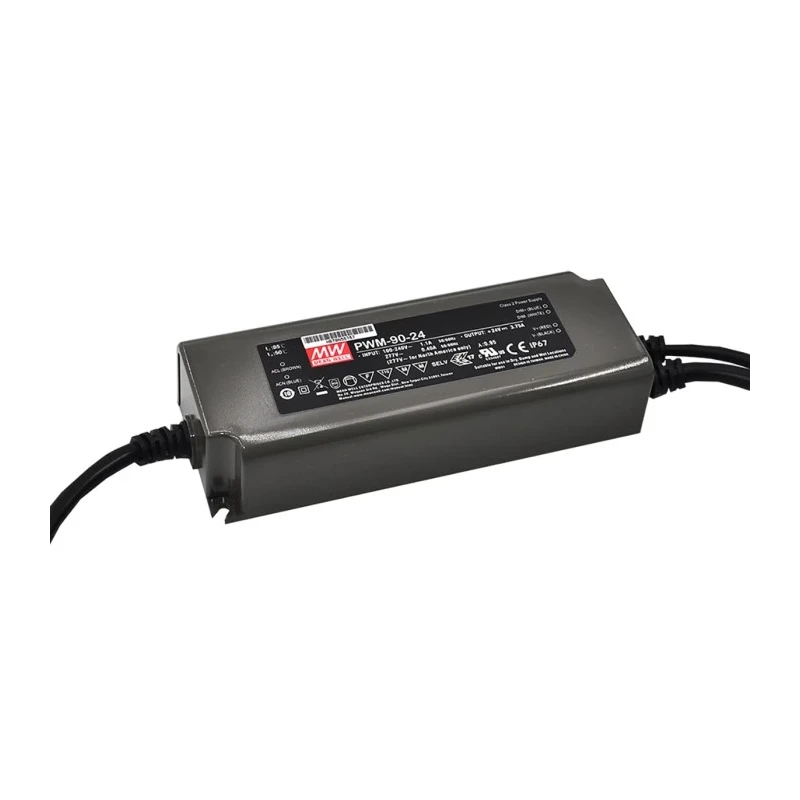

MEAN WELL IP67 1 Output LED Driver 24V 90W 950mA DALI
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | PWM-90 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 90W |
| Input Voltage | 305, 431V ac |
| Output Voltage | 24V |
| Power Dissipation | 0.5W |
| Standards/Approvals | CCC, ENEC, CB, UL, CE, BIS, SELV, EAC |
| Dimming Operation | DALI |
| Primary Type | DC-DC, AC |
| Driver Current | 950mA |
Key Features
- Features constant voltage PWM style output with 1.47kHz frequency for brightness homogeneity.
- Built for indoor and outdoor LED strip lighting applications.
- Works with input voltage range of 90 to 305 VAC.
- High efficiency up to 90.5% with fanless design for silent operation.
- IP67 rated enclosure suitable for dry, damp, or wet locations.
- Equipped with built-in active PFC and Class II power unit for safety.
- Supports DALI dimming allowing flexible brightness control.
- Stable operation over temperature range -40°C to +85°C.
Product Description
MEAN WELL PWM-90-24DA is a high-performance IP67 rated LED driver providing a single output of 24V DC with 90W power and constant voltage PWM style output at 950mA driver current. This driver features DALI dimming capability to enable smooth brightness adjustment, making it ideal for versatile LED strip lighting solutions.
Designed to operate reliably with an input voltage range of 90 to 305 VAC, this unit integrates a built-in active power factor correction (PFC) and a Class II safety-approved power unit ensuring efficient and safe power delivery. The fanless design enhances durability and quiet operation, supporting environments from -40°C to +85°C case temperature under free air convection.
The enclosed IP67 rated housing ensures protection against dust and water, allowing usage in dry, damp, or wet indoor and outdoor locations. This driver supports constant voltage operation using PWM output with a frequency around 1.47kHz, which maintains LED brightness homogeneity across different LED strips for consistent lighting.
Its robust design is suited for industrial, architectural, decorative, and indoor LED lighting applications including LED strip lighting, indoor LED lighting, and decorative or architectural LED installations.
Constant voltage PWM style output with frequency of 1.47kHz ensures stable brightness. IP67 rated enclosed plastic housing for protection in challenging environments. Built-in active PFC function improves power quality and efficiency.
Class 2 power unit design for enhanced electrical safety. Fanless operation with up to 90.5% efficiency guarantees silent and energy-saving performance. Supports DALI dimming enabling flexible user-controlled lighting levels.
Wide operating temperature range from -40°C to +85°C. Suitable for a wide range of LED strip, decorative, indoor, and architectural lighting installations.
This MEAN WELL PWM-90-24DA LED Driver represents a reliable, efficient, and versatile power source for LED lighting projects requiring flexible dimming control and robust IP67 protection. Explore the LED Drivers category on EnvMart for additional compatible lighting components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 90W.
It operates with an input voltage range of 90 to 305 VAC.
This model supports DALI dimming for flexible brightness control.
The driver current is 950mA.
The enclosure has an IP67 rating, making it suitable for dry, damp, or wet locations.
It can operate reliably over a temperature range of -40°C to +85°C.
It provides a constant voltage PWM style output.
The mounting type is screw, but specific dimensions are not provided in the available data.
It complies with several standards including CCC, ENEC, CB, UL, CE, BIS, SELV, and EAC.
Yes, it is equipped with a built-in active PFC function for improved power quality and efficiency.
The PWM output frequency is approximately 1.47kHz.
The country of origin for this model is China.
