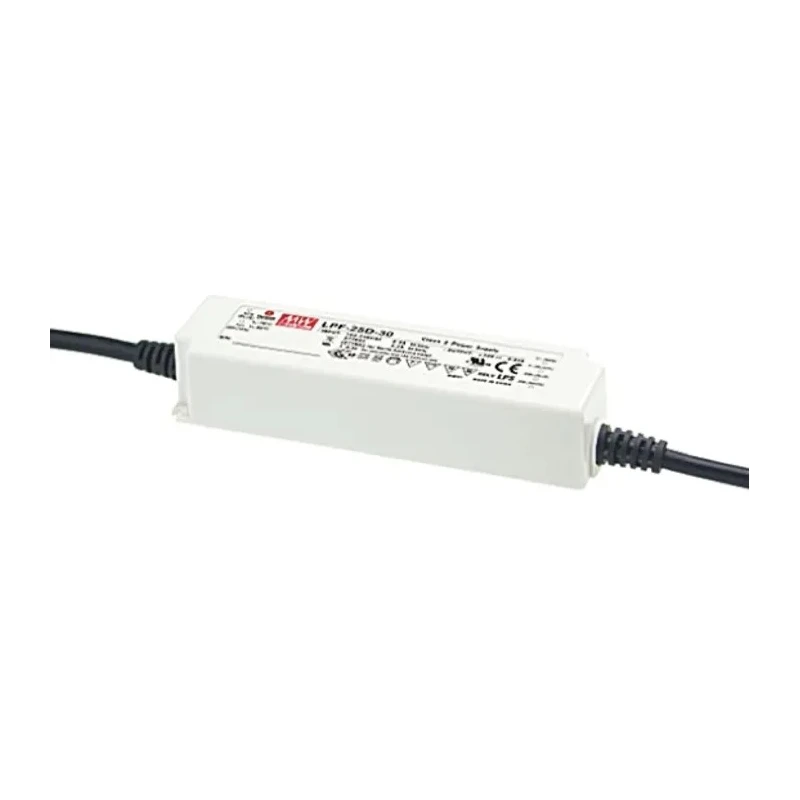

MEAN WELL IP67 Rated 5 Output 25.38W Dimmable LED Driver, 29.7V/54V, 470mA, 1 to 10 V PWM Resistance
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | LPF-25D |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 25.38W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 29.7, 54V |
| Power Dissipation | 25.38W |
| Standards/Approvals | UL, SELV, ENEC, EAC, CSA, CE, CB |
| Dimming Operation | 1 to 10 V PWM Resistance |
| Primary Type | AC-DC |
| Driver Current | 470mA |
| MEAN WELL IP30 1 Output LED Driver, 5V, 35 W, 5A LED DriverBrand | MEAN WELL |
Key Features
- Universal AC input voltage range of 90 to 305 Vac ensures wide compatibility.
- Supports 1 to 10 V DC, PWM, or resistance dimming control for flexible lighting adjustment.
- Fully encapsulated with glue potting for IP67 waterproof protection and shock absorption.
- High efficiency up to 85% with built-in active PFC for energy saving.
- Equipped with multiple safety protections including short circuit, over current, over voltage, and over temperature.
- Operating temperature range from -40°C to +70°C suitable for harsh environments.
- Compact enclosed screw mount design for easy installation.
- Suitable for LED lighting and moving sign applications in dry, damp, or wet locations.
Product Description

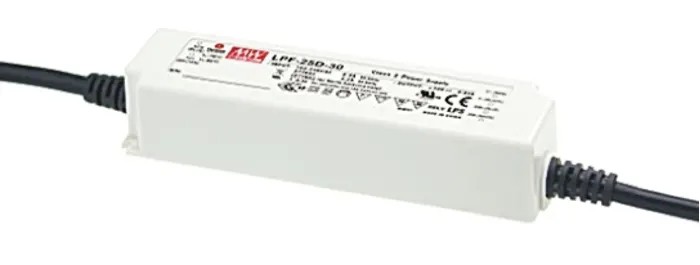

MEAN WELL LPF-25D-54 is a robust 25.38W LED driver designed for industrial and commercial LED lighting applications requiring high reliability and flexibility. It features an IP67 rated enclosure, providing waterproof and dustproof protection, making it ideal for use in wet or harsh environments.
This driver offers a universal AC input voltage range from 90 to 305 Vac with a built-in active power factor correction (PFC) to optimize power quality and efficiency up to 85%. It supports constant voltage operation with 5 output channels delivering voltages of 29.7V and 54V at a driver current of 470mA.
The LPF-25D-54 includes a triple dimming function supporting 1 to 10 V DC, PWM signals, or resistance dimming, enabling precise control of lighting brightness in various applications. The fully glued encapsulated potting improves shock resistance and thermal management, helping the driver withstand vibrations up to 5G and temperatures from -40°C to +70°C, cooled by free air convection without the need for a fan.
Safety protections against short circuit, over current, over voltage, and over temperature ensure durability and reliable operation in challenging industrial settings such as manufacturing facilities, outdoor lighting, signage, and HVAC lighting systems. The design complies with multiple international safety and EMC standards including UL8750, CSA C22.2, EN61347, CE, CB, and more.
The compact enclosed screw mount design simplifies installation in control cabinets or fixtures. Typical use cases include LED lighting for industrial plants, warehouses, commercial buildings, and outdoor advertising signs where moisture and vibration resistance are critical.
Universal AC input voltage range of 90 to 305 Vac with active PFC. Triple dimming: 1-10 V DC, PWM, or resistance dimming. Fully encapsulated IP67 rated housing with shock and vibration resistance. High efficiency up to 85% and wide operating temperature range from -40°C to +70°C.
Multiple safety protections for reliable operation. Compliant with global safety and EMC standards. Suitable for harsh industrial, commercial, and outdoor LED lighting applications. Compact enclosed design with screw mounting.
Explore the LED Driver category at EnvMart for more high-quality, reliable LED Drivers from leading brands like MEAN WELL.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 25.38W.
This model supports 1 to 10 V DC, PWM, or resistance dimming control.
The driver provides output voltages of 29.7V and 54V.
The operating temperature range is from -40°C to +70°C.
This LED driver features 5 output channels.
It includes protections against short circuit, over current, over voltage, and over temperature.
The driver has a screw mount design for installation.
This model has an IP67 rating, providing waterproof and dustproof protection.
It complies with multiple standards including UL, SELV, ENEC, EAC, CSA, CE, and CB.
The driver current is 470mA.
It is suitable for industrial and commercial LED lighting applications, including outdoor lighting and signage.
