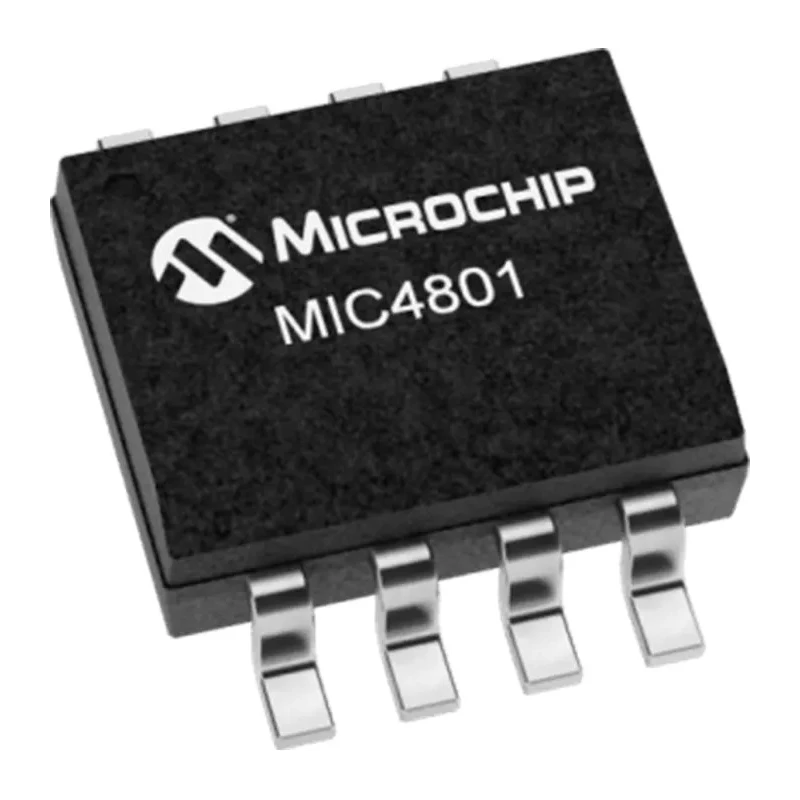

Microchip High Efficiency LED Driver IC 3.0V to 5.5V 600mA 8-Pin SOIC MIC4801YM

Free Delivery in India | Lowest Global Shipping Charges

Microchip High Efficiency LED Driver IC 3.0V to 5.5V 600mA 8-Pin SOIC MIC4801YM

Name: Microchip High Efficiency LED Driver IC 3.0V to 5.5V 600mA 8-Pin SOIC MIC4801YM
Brand: Microchip
SKU: 153299
Price: 1.26 USD
Availability: InStock



Category LED Driver IC Brand Microchip Condition New

Specifications

Country of Origin	Thailand
Brand	Microchip
Height	1.75mm
Length	4.93mm
Model	MIC4801YM
Width	4.93mm
Mount Type	Through Hole
Series	MIC4801
Output Current	600mA
Maximum Operating Temperature	125°C
Package Type	SOIC
Input Voltage Range	3.0V to 5.5V
Minimum Operating Temperature	-40°C
Input Voltage	3, 5.5V
Number of Pins	8
Dimming Operation	PWM

Key Features

Operates with input voltage from 3.0V up to 5.5V.
Provides a constant output current of up to 600mA for driving single LEDs.
Features Ultra Fast PWM control adjustable between 200Hz and 500kHz.
Designed with a low dropout voltage of 130mV at 400mA load.
Current accuracy is typically within ±1% for precise illumination control.
Comes in an 8-pin SOIC package with through-hole mount type.
Operating temperature range from -40°C to 125°C for industrial applications.
Suitable for high power LED lighting and other LED driver applications.

Product Description

Microchip MIC4801YM is a high efficiency LED driver IC designed to drive a single white LED with constant current up to 600mA. Built for high power LED applications, it supports an input voltage range of 3.0V to 5.5V, delivering reliable and precise current control with a typical accuracy of ±1%.

The device operates through Ultra Fast PWM control ranging from 200Hz to 500kHz, enabling smooth dimming capabilities without voltage boost losses. It achieves a low dropout of 130mV at 400mA load, contributing to high efficiency and reduced power wastage.

This LED driver comes in an 8-pin SOIC package with through-hole mounting, suitable for easy integration into printed circuit boards. Its temperature rating from -40°C to 125°C ensures durability in various industrial and commercial environments.

The compact dimensions (4.93mm x 4.93mm x 1.75mm) make the MIC4801YM ideal for space-constrained designs in LED lighting systems. Applications include LED lamps, flashlights, display backlighting, and other lighting solutions requiring controlled high current LED driving.

Operates efficiently with input voltage range of 3.0V to 5.5V. Constant output current of up to 600mA for single LED driving. Ultra Fast PWM control frequency from 200Hz to 500kHz for smooth dimming. Low dropout voltage of 130mV at 400mA load for high efficiency.

Programmable LED current with external resistor for application flexibility. High current accuracy with ±1% typical deviation. 8-pin SOIC package suitable for through-hole mounting. Wide operating temperature range from -40°C to 125°C.

This product is manufactured in Thailand and meets the requirements for various electronics and LED lighting applications in industrial, commercial, and HVAC sectors. Discover a wide range of LED Driver ICs and related components available in the Electronics Components category at EnvMart for reliable and efficient lighting solutions.
