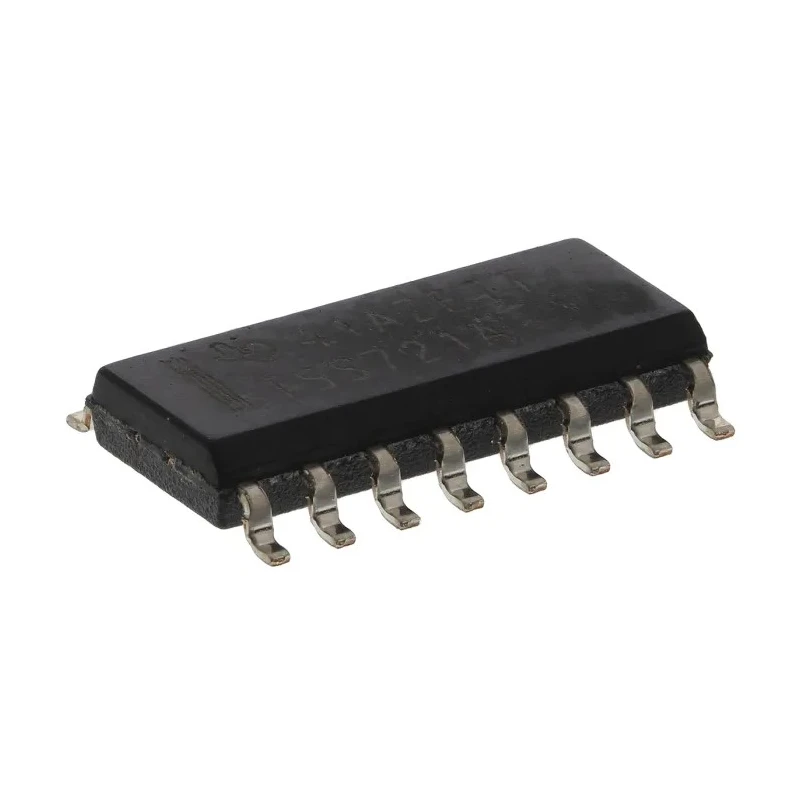

Texas Instruments Bus Transceiver Inverting Meter Bus Transceiver 16-Pin SOIC TSS721AD

Texas Instruments TSS721AD is a high-quality bus transceiver with an inverting meter bus transceiver output. Delivered in a 16-pin SOIC package, it is engineered for surface mount technology and designed to work in LVCMOS/LVTTL logic environments. The device supports a voltage supply range from -0.3V minimum to 5.5V maximum, meeting demanding industrial and electronic applications requirements.

This bus transceiver is characterized by high operational reliability within a temperature range of -25°C to 85°C. It delivers maximum output currents of 40μA at high level and 10μA at low level, making it suitable for precise remote reading and control interoperability. The compact dimensions of 1.58mm height and 9.9mm length assist in implementing space-constrained circuit boards without compromising performance.

The TSS721AD transceiver specifically targets Meter-Bus (M-Bus) applications, a European standard (EN 13757) for remote reading of gas and electricity meters. Its inverting polarity and single-channel design enable seamless integration for communication with metering devices and smart grid equipment.

Key features include surface mount packaging for compact and reliable PCB assembly, compliance with standard logic input levels (CMOS), and a robust transceiver output optimized for meter bus environments. It does not carry automotive or additional certifications, highlighting its specialized industrial and laboratory focus.

Engineers and designers in industrial electronics, utility metering, and communication instrumentation will find the Texas Instruments TSS721AD an essential component for embedding meter communication functionality in their designs.

Operates with LVCMOS/LVTTL logic family for compatibility. Single-channel bus transceiver with inverting polarity. Minimum supply voltage of -0.3V and maximum of 5.5V. Supports operating temperature from -25°C to 85°C. Offers maximum output current of 40μA at high level and 10μA at low level.

Compact design with 1.58mm height and 9.9mm length dimensions. Package type SOIC suitable for surface mount technology. Designed for Meter-Bus applications compliant with European M-Bus standard. Surface mount mount type ensures reliable PCB integration.

For high-reliability bus transceiver requirements in electronic components and semiconductor applications, explore the wide range of Texas Instruments products and related Bus Transceivers available at EnvMart.
