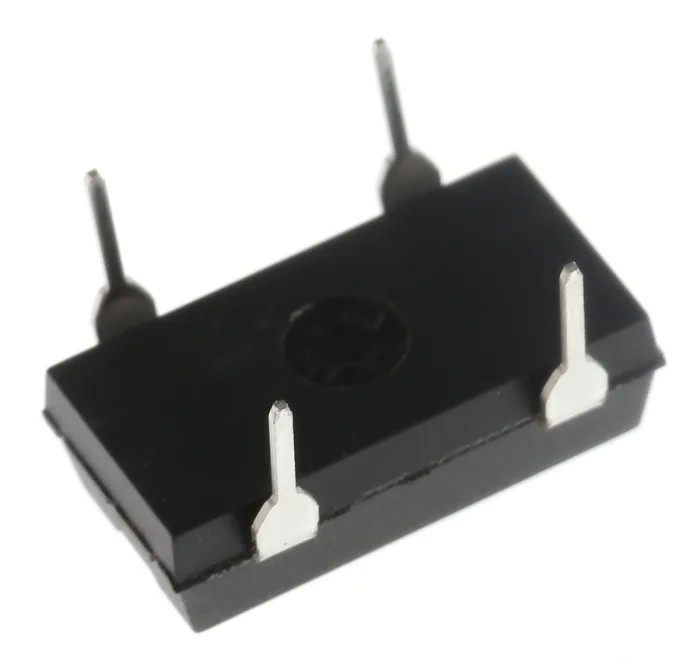

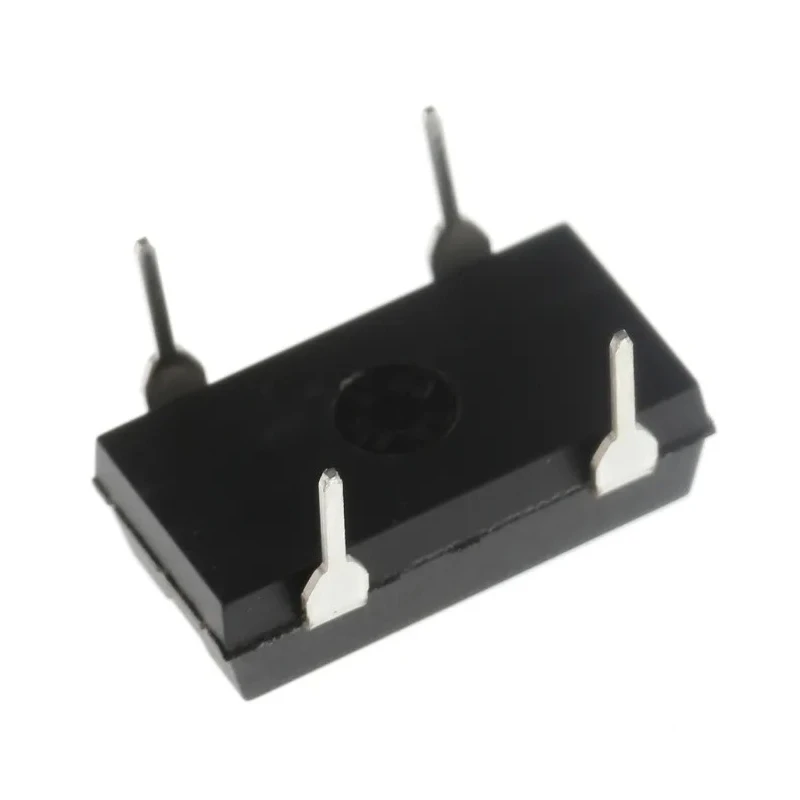

Epson 10MHz XO Oscillator ±50 ppm CMOS 4-Pin PDIP Q3204DC21006800
Specifications
| Country of Origin | India |
|---|---|
| Brand | Epson |
| Height | 5.3mm |
| Length | 13.7mm |
| Model | Q3204DC21006800 |
| Width | 6.6mm |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 10MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -20°C |
| Pin Count | 4 |
| Oscillator Type | XO |
| Output Level | CMOS |
| OSCILLATOR 10.000000 MHZBrand | AEL |
Key Features
- Operates at an output frequency of 10MHz suitable for frequency reference applications.
- Employs XO oscillator type ensuring excellent frequency stability.
- Features CMOS output level compatible with modern digital circuits.

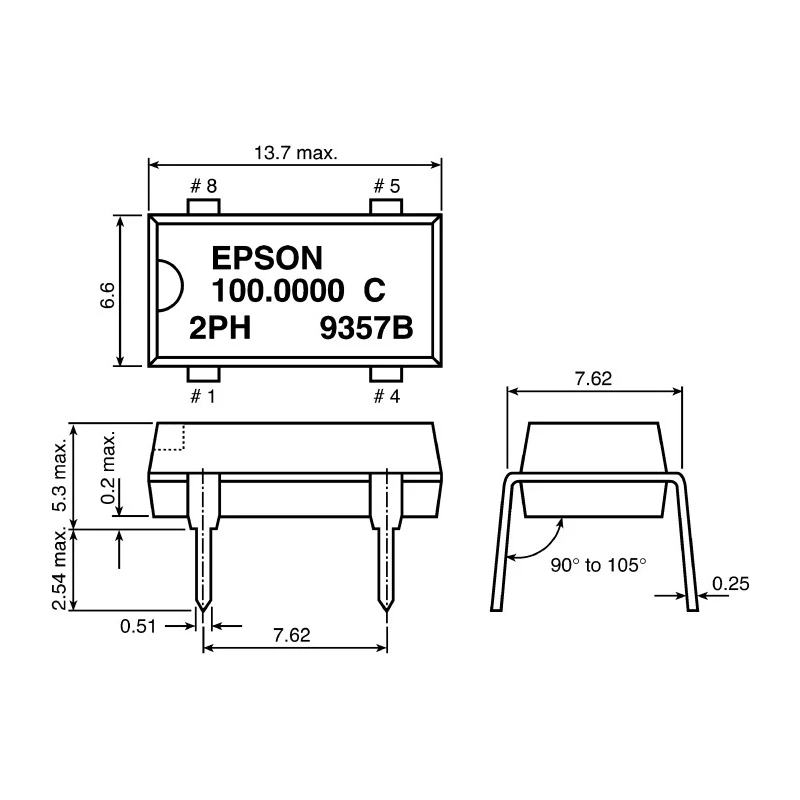

- Compact 4-pin PDIP package measuring 13.7mm length, 6.6mm width and 5.3mm height.
- Wide operating temperature range from -20°C to 70°C for industrial applications.
- Robust design suitable for electronic, industrial, and communication equipment.
- Through-hole mounting facilitates easy integration into PCB layouts.
- Reliable brand Epson known for quality electronic components.
Product Description
Epson Q3204DC21006800 10MHz XO Oscillator ±50 ppm CMOS 4-Pin PDIP is a precision frequency control device designed to provide a stable 10MHz output for electronic and digital applications. Its XO oscillator configuration delivers excellent frequency stability of ±50 ppm, making it ideal for timing and frequency reference in industrial, communication, and laboratory equipment.
This device offers a CMOS output level that ensures compatibility with a wide range of modern digital circuits, enhancing signal integrity and performance. Encased in a compact 4-pin PDIP package measuring 13.7mm in length, 6.6mm in width, and 5.3mm in height, it is suitable for through-hole PCB mounting, facilitating easy assembly and maintenance.
Operating efficiently in a temperature range of -20°C to 70°C, this oscillator performs reliably under diverse environmental conditions, making it well suited for industrial and commercial electronics. Epson’s trusted brand reputation supports the quality and longevity of this component.
Applications include timing circuits, clock generation in communication devices, instrumentation, and control systems in industrial environments. Its compact size and stable frequency output make it a versatile component in electronic design and manufacturing.
Operates at 10MHz frequency with ±50 ppm stability. XO type oscillator with CMOS output. Compact 4-pin PDIP package for through-hole mounting. Suitable for use in industrial, laboratory, and communication equipment. Operating temperature range from -20°C to 70°C.
Dimensions: 13.7mm length, 6.6mm width, 5.3mm height. High reliability and signal integrity. Explore more precision oscillators and electronic components in the Crystal Oscillator category at EnvMart, your trusted source for industrial and electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at an output frequency of 10MHz, suitable for frequency reference applications.
This model employs an XO (Crystal Oscillator) type configuration, ensuring excellent frequency stability.
The oscillator operates efficiently within a temperature range of -20°C to 70°C, making it suitable for industrial applications.
It comes in a compact 4-pin PDIP (Plastic Dual In-line Package) format, facilitating through-hole mounting.
The oscillator provides a frequency stability of ±50 ppm, ensuring reliable performance in various applications.
It measures 13.7mm in length, 6.6mm in width, and 5.3mm in height.
It features a CMOS output level, which is compatible with modern digital circuits.
It is suitable for timing circuits, clock generation in communication devices, and control systems in industrial environments.
This model has a pin count of 4.
The country of origin for this oscillator is India.
Yes, it is designed for use in laboratory, industrial, and communication equipment due to its stable frequency output.
The oscillator is manufactured by Epson, a trusted brand known for quality electronic components.
