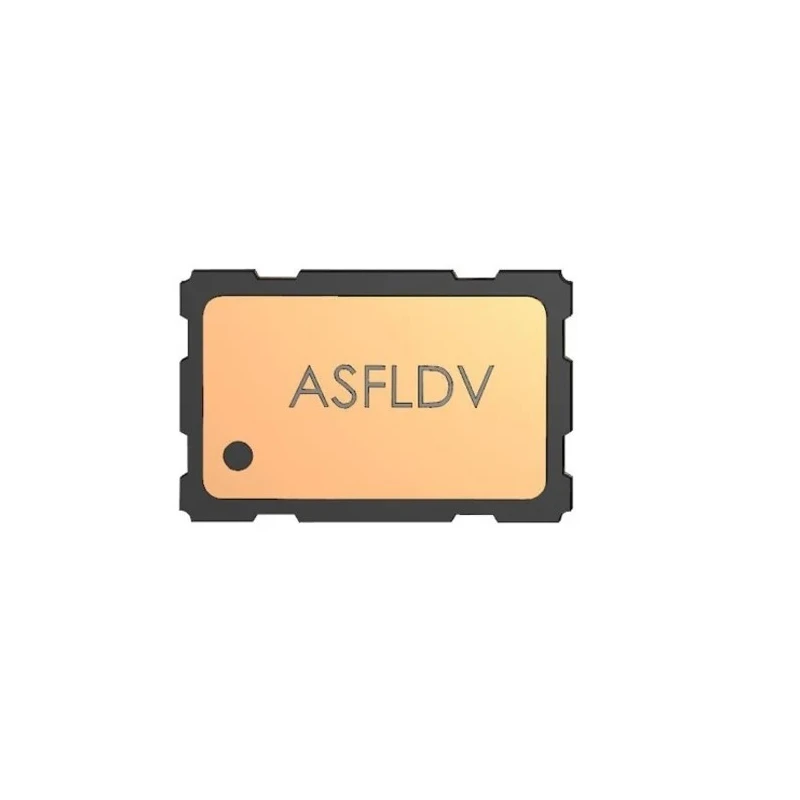

Abracon Surface Mount Crystal Oscillator 25MHz ±50ppm LVCMOS/HCMOS/CMOS 4-Pin ASFLDV-25.000MHz-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ASFLDV-25.000MHz-LC-T |
| Packaging | Bulk |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ASFLDV |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 25MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS/RoHS II, ISO9001-2015 |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 1.6V |
| Load Capacitance | 15pF |
| Oscillator Type | Crystal Oscillator |
| Output Level | LVCMOS, HCMOS, CMOS |
Key Features
- Operates at 25MHz frequency for precise timing applications.
- Supports LVCMOS, HCMOS, and CMOS output levels.
- 1.6V to 3.63V supply voltage range for continuous operation.
- Hermetically sealed ceramic surface mount package.
- Optimized for low current consumption in portable and wearable devices.
- Featuring Start/Disable and Enable/Stop output function.
- Functions reliably from -40°C to +85°C.
Product Description
Abracon ASFLDV-25.000MHz-LC-T is a high-performance surface mount crystal oscillator providing a stable 25MHz output frequency. Designed for electronic timing and clocking applications, this device delivers ±50ppm frequency stability, suitable for industrial controls and precision electronics.
Operates at 25MHz frequency for precise and reliable signal generation. Frequency stability of ±50ppm maintains consistency in critical circuits. Supports LVCMOS, HCMOS, and CMOS output levels for compatibility with modern logic families.
Operates within a supply voltage range of 1.6V to 3.63V, allowing flexibility in portable and low-power systems. Seam-sealed ceramic package ensures environmental durability and protection. Optimized for low current consumption, ideal for battery-powered wearables and consumer electronics.
Output Enable/Start and Disable/Stop function allows effective oscillator control. Reliable operation from -40°C to +85°C covers most industrial and commercial environments.
The compact SMD package (5mm x 3.2mm x 1.3mm) with a 4-pin layout simplifies integration and saves PCB space. The device’s RoHS/RoHS II and ISO9001-2015 compliance support industry standards for quality and environmental responsibility.
Typical applications include timing reference in microcontrollers, communication devices, portable & wearable electronics, consumer products, and industrial automation control systems where precision and reliability are paramount.
With its continuous Vdd operation, low energy requirement, and robust build, this crystal oscillator is preferred in telecommunications, medical devices, measurement instruments, and embedded systems.
Discover more industrial electronic components in the "Crystal Oscillator" category at EnvMart. Browse Abracon and related brands for advanced timing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 25MHz, providing stable signal generation for various applications.
It operates within a supply voltage range of 1.6V to 3.63V, allowing flexibility for different electronic systems.
This unit supports LVCMOS, HCMOS, and CMOS output levels, making it compatible with modern logic families.
It functions reliably from -40°C to +85°C, suitable for most industrial and commercial environments.
The dimensions of the package are 5mm in length, 3.2mm in width, and 1.3mm in height.
The load capacitance for this model is 15pF, which is necessary for proper oscillator operation.
It is designed for surface mounting, which simplifies integration into compact electronic circuits.
This oscillator complies with RoHS/RoHS II and ISO9001-2015 standards, ensuring quality and environmental responsibility.
The packaging type for this crystal oscillator is bulk, suitable for various industrial applications.
It is a crystal oscillator, specifically optimized for precise timing applications in electronics.
It features Start/Disable and Enable/Stop output functions, allowing for effective control of the oscillator's operation.
Typical applications include timing references in microcontrollers, communication devices, and portable electronics.
