Abracon 32.768kHz XO Oscillator ±25 ppm CMOS 4-Pin Surface Mount ASDK-32.768KHZ-LRT

Free Delivery in India | Lowest Global Shipping Charges

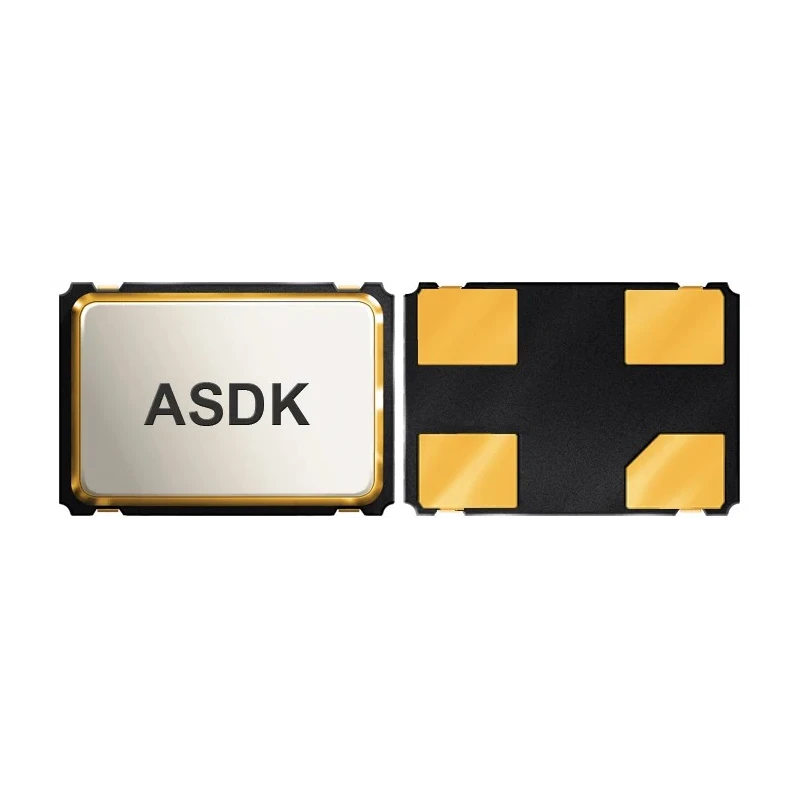

Abracon 32.768kHz XO Oscillator ±25 ppm CMOS 4-Pin Surface Mount ASDK-32.768KHZ-LRT

Name: Abracon 32.768kHz XO Oscillator ±25 ppm CMOS 4-Pin Surface Mount ASDK-32.768KHZ-LRT
Brand: Abracon
SKU: 95763
Price: 1.57 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	Taiwan
Brand	Abracon
Height	0.95mm
Length	2.5mm
Model	ASDK-32.768KHZ-LRT
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ASDK
Maximum Operating Temperature	85°C
Output Frequency	32.768kHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Interfaces	LAN
Pin Count	4
Maximum Supply Voltage	3.66V
Minimum Supply Voltage	2.97V
Oscillator Type	XO
Output Level	CMOS

Key Features

The oscillator operates at 32.768kHz frequency suitable for timekeeping applications.
CMOS output level ensures low power consumption and compatibility with CMOS logic.
Surface mount package with 4 pins measures 2.5mm x 2.0mm x 0.95mm for compact PCB layout.
Operational supply voltage ranges from 2.97V to 3.66V providing robust voltage tolerance.
Extended operating temperature range from -40°C to 85°C for reliable use in various environments.
Packaged in tape and reel format ideal for automated assembly processes.
Low current consumption of approximately 1.0mA at Vdd=1.8V.
Seam sealed construction ensures high reliability and long-term performance.

Product Description

Abracon ASDK-32.768KHZ-LRT 32.768kHz XO Oscillator is a high reliability crystal oscillator designed for precise timing and low power operation in a miniature 2.5 x 2.0 x 0.95 mm surface mount package. This oscillator provides a stable frequency output of 32.768 kHz with a tight frequency stability of ±25 ppm, making it well-suited for real-time clock applications and low frequency timing circuits.

Featuring a CMOS output level, the ASDK-32.768KHZ-LRT operates within a supply voltage range of 2.97 to 3.66 volts and maintains an extended operating temperature range from -40°C up to 85°C, ensuring consistent performance in demanding industrial, consumer electronics, and communications environments.

The component is packaged in tape and reel format compatible with automated PCB assembly, reducing manufacturing time and cost. Its seam sealed design guarantees robust performance over extended usage.

This oscillator is ideal for use in laptops, digital cameras, wireless LAN devices, Bluetooth and mobile communication hardware, LCDs, PDAs, MP3 players, and utility metering involving electricity, gas, and water where precise timing is critical.

The oscillator operates at 32.768kHz frequency suitable for timekeeping applications. CMOS output level ensures low power consumption and compatibility with CMOS logic. Surface mount package with 4 pins measures 2.5mm x 2.0mm x 0.95mm for compact PCB layout.

Operational supply voltage ranges from 2.97V to 3.66V providing robust voltage tolerance. Extended operating temperature range from -40°C to 85°C for reliable use in various environments. Packaged in tape and reel format ideal for automated assembly processes.

Low current consumption of approximately 1.0mA at Vdd=1.8V. Seam sealed construction ensures high reliability and long-term performance. Applications include laptops, digital cameras, wireless LAN, Bluetooth devices, LCDs, PDAs, and metering equipment.

Available from EnvMart, this Crystal Oscillator is suitable for industrial, laboratory, communication, and consumer electronics environments where precision timing is paramount. Explore more Abracon oscillators and similar components in the Electronics & Electricals category for your design and manufacturing needs.
