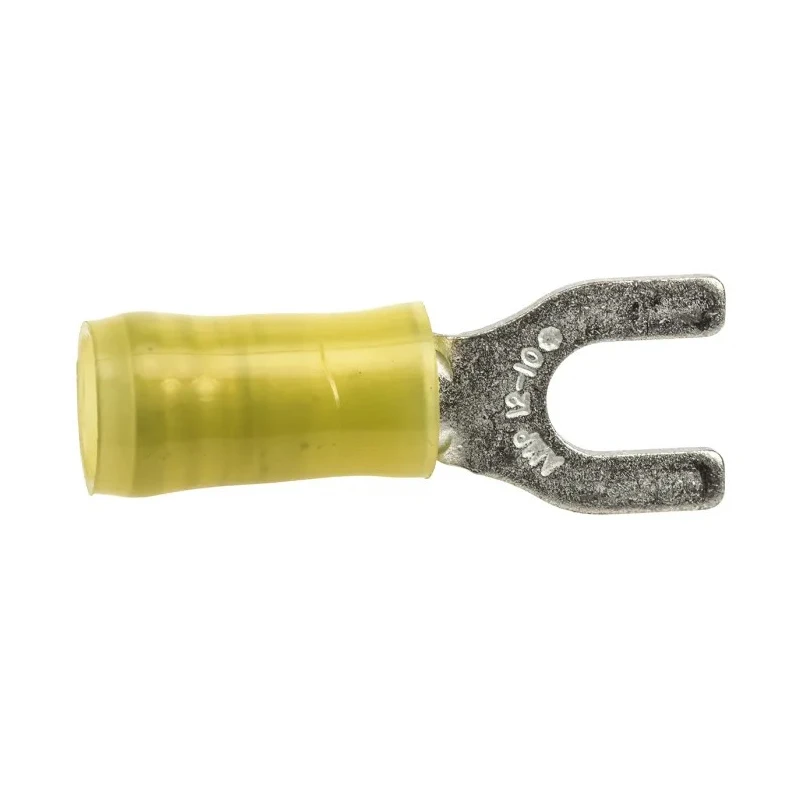

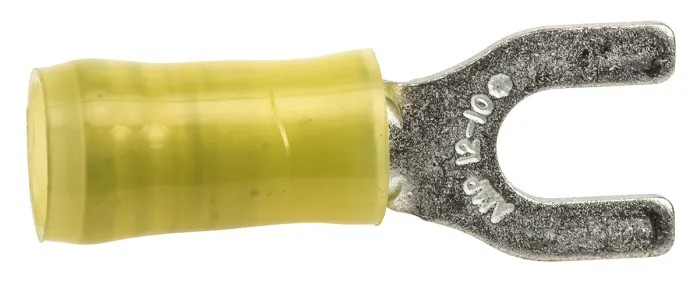

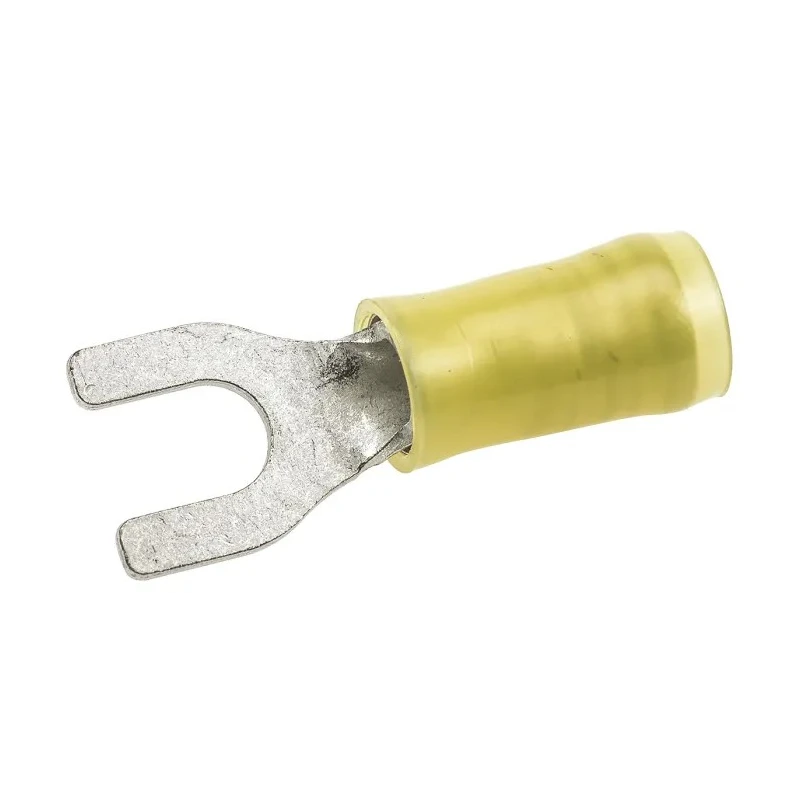

TE Connectivity PIDG Insulated Fork Terminal 12 AWG to 10 AWG Nylon Yellow M5 Stud 27.81mm 0.79mm Thickness 32589

TE Connectivity 32589 PIDG Insulated Fork Terminal is an insulated wire terminal designed for high reliability and uniform crimping in electrical and industrial applications. It supports wire sizes from 12 AWG to 10 AWG and features an M5 stud size. The terminal has a yellow nylon insulation sleeve and a tin-plated copper contact to ensure durability and excellent conductivity.

This terminal's construction includes a high conductivity copper body with a copper sleeve surrounding the wire barrel for insulation reinforcement after crimping. Inside the barrel, serrations provide maximum electrical contact as well as tensile strength. The color-coded nylon insulation sleeve aids operators in quickly identifying wire sizes and ensures correct tool utilization.

The funnelled wire entry design minimizes wire strand turn-back, allowing fast, consistent wire insertion in production environments. PIDG (Pre-Insulated Diamond Grip) spade terminals meet or exceed stringent aerospace and industrial standards, making them suitable for use in instrumentation, control panels, lighting systems, power supplies, motors, transportation equipment, lifting machinery, and appliances.

The yellow coloration corresponds to wire sizes 12 AWG to 10 AWG, facilitating easy visual sorting and maintenance. With an overall length of 27.81 mm and 0.79 mm thickness, these terminals provide robust mechanical strength and consistent electrical performance in demanding conditions.

High conductivity copper body for superior electrical performance. Copper sleeve on wire barrel enhances insulation protection and wire support. Serrated barrel ensures maximum contact and tensile strength after crimping.

Color-coded nylon insulation sleeve to differentiate wire sizes easily. Funnelled wire entry for easy and fast wire insertion without strand damage. Compliant with MIL-T-7928 Type II, Class 1 and 2 requirements. Applications include industrial control, instrumentation, lighting, power distribution, transportation, and aerospace.

Yellow color coding indicates suitability for 12 AWG to 10 AWG wires. These terminals are engineered to meet the needs of industrial, electrical, and manufacturing sectors requiring reliable and uniform crimp connections.
