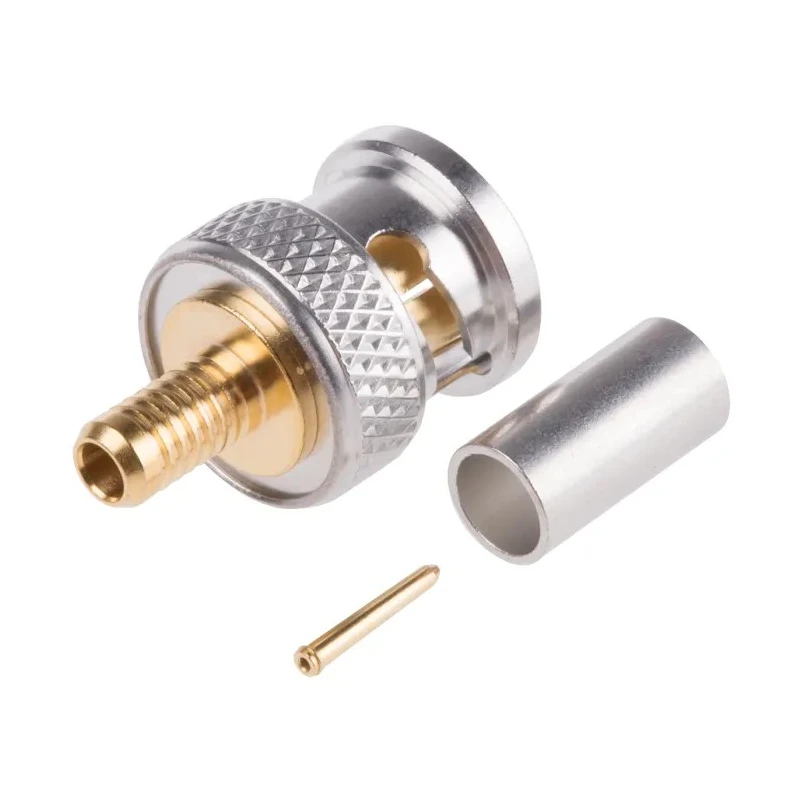

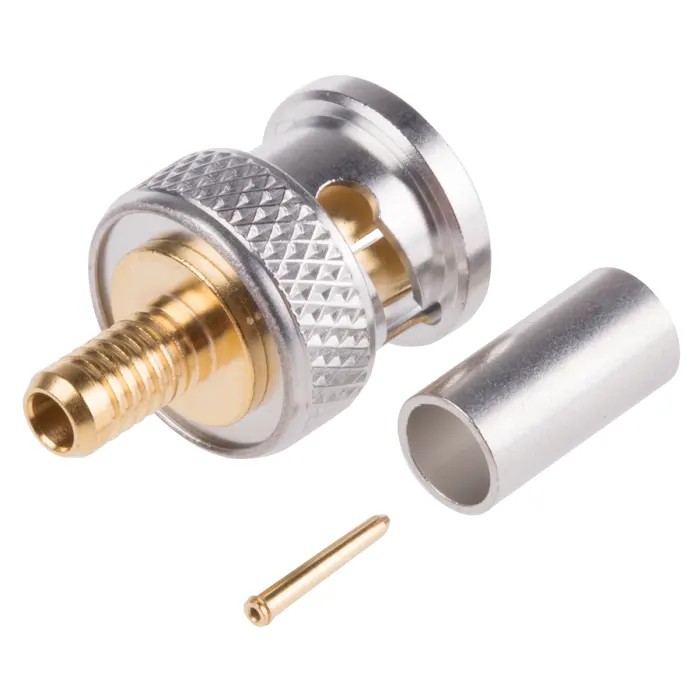

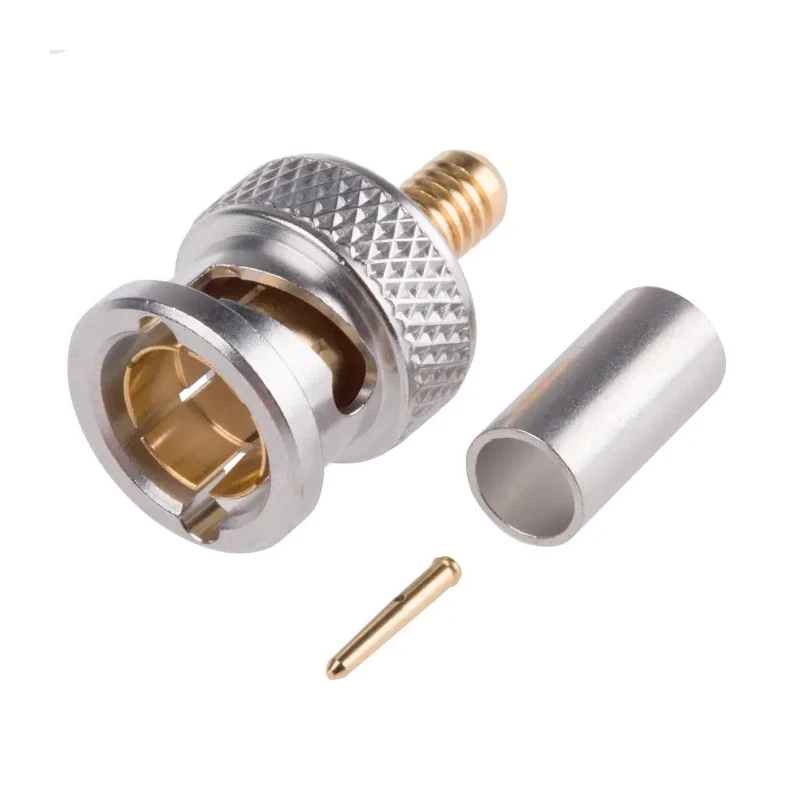

Radiall BNC Series Coaxial Connector Cable Male BNC 75Ω Straight Body Crimp R142077702W

Radiall R142077702W BNC Series Coaxial Connector Male BNC 75Ω Straight Body Crimp is a high-precision connector designed specifically for professional coaxial cable installation and broadcast applications. It supports an impedance of 75 ohms and operating frequencies up to 6 GHz, optimized for HDTV signals and data rates up to 3 Gbps or higher.

The connector features a straight body with cable mount type facilitating easy crimp termination on HDTV 0.6/2.8 type coaxial cables. Its brass contacts plated with a nickel gold alloy ensure excellent electrical conductivity and long-term durability, supporting up to 1000 mating cycles for extended use.

Operating temperature ranges from -65°C to 165°C, making it suitable for demanding industrial, broadcast, and professional video environments. The body plating of NPGR provides mechanical robustness and corrosion resistance to maintain connector reliability under exposure to harsh conditions.

This series complies with broadcast industry SMPTE 292M and SMPTE 424M standards ensuring high electrical performance and suitability for HDTV broadcast applications. Installation is simplified by field-installable connectors using hand-crimping tools.

With its robust electrical and mechanical characteristics, the Radiall R142077702W connector is ideal for use in industrial electronics, broadcasting, telecommunications, and laboratory signal transmission setups requiring consistent, reliable high-frequency signal connectivity.

The connector supports an impedance of 75 ohms for optimal signal quality. It features a straight orientation with cable mount for easy installation. Termination type is crimp, suitable for HDTV 0.6/2.8 cable types. Operating frequency reaches up to 6 GHz, supporting high data transmission rates.

Connector body plating uses NPGR for durability and corrosion resistance. Contact material is brass with nickel gold alloy plating for excellent conductivity and durability. Suitable for field installation with hand crimping tools, providing up to 1000 mating cycles.

Designed for broadcast and professional video applications meeting SMPTE 292M and 424M standards. Operating temperature range spans from -65°C to 165°C ensuring reliable performance in harsh environments.
