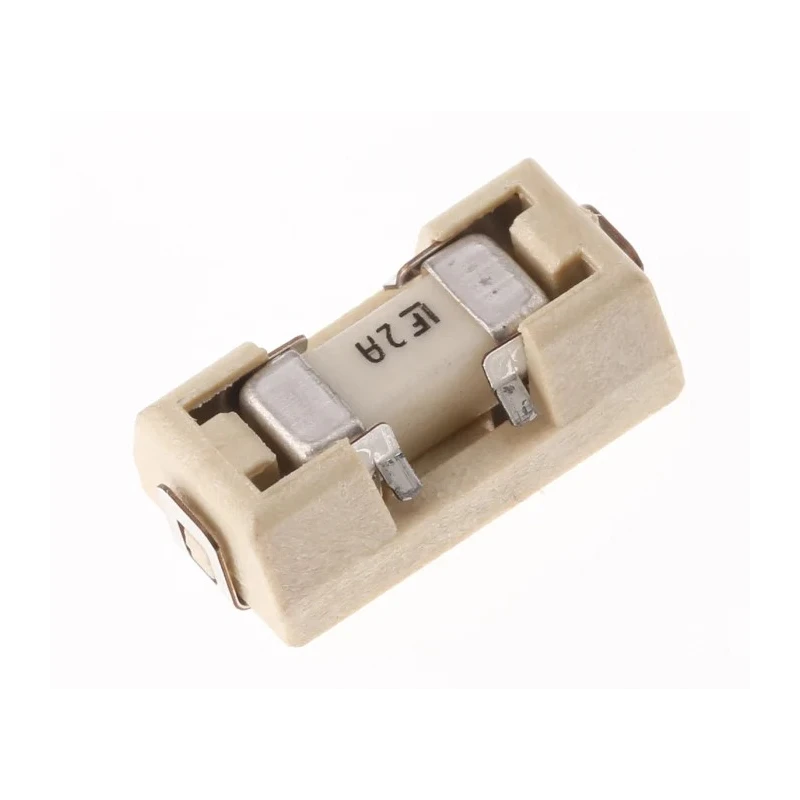

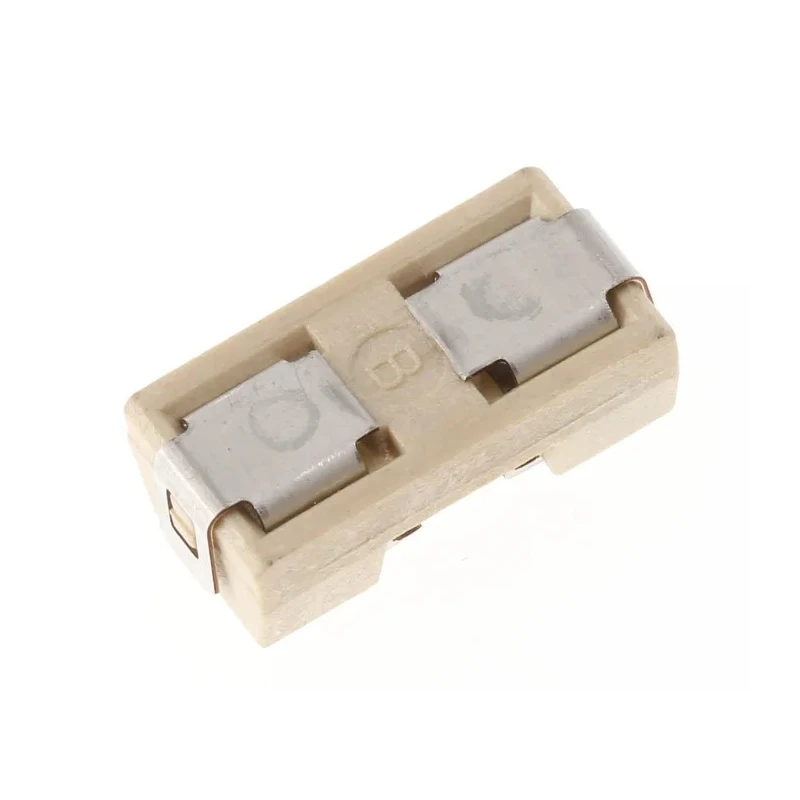

Littelfuse Non-Resettable Surface Mount Fuse 2A, 125VAC/125VDC, FF Time Delay, Thermoplastic Body, 0154002.DR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Littelfuse |
| Body Material | Thermoplastic |
| Height | 3.81mm |
| Model | 0154002.DR |
| Depth | 9.73mm |
| Width | 5.03mm |
| Current Rating | 2A |
| Series | 154 |
| Maximum Operating Temperature | -55°C |
| Package Type | Reel |
| Minimum Operating Temperature | 125°C |
| Breaking Capacity | 50A |
| Terminal Material | Tin/Lead Plated Beryllium Copper Alloy |
| Standards/Approvals | CSA, RoHS, UL 94 V-0 |
| Fuse Characteristics | Time Delay |
Key Features
- Features a time delay FF characteristic for effective surge protection.
- Rated at 2A with a voltage of up to 125V AC and 125V DC.
- Thermoplastic body ensures durability and heat resistance.
- Reel packaging allows easier insertion into automated machinery.
- Miniature surface mount form for space-saving PCB assembly.
- Breaking capacity of 50A supports robust electrical safety.
- Operates reliably over a wide temperature range from -55°C to 125°C.
- Compliant with CSA, RoHS, and UL 94 V-0 safety standards.
Product Description
Littelfuse 0154002.DR Non-Resettable Surface Mount Fuse provides advanced circuit protection for applications requiring fast-acting response and consistent performance. As part of the Littelfuse 154 Series OMNI-BLOK, this fuse combines efficient installation with easy replacement, making it ideal for protecting high-value silicon components in demanding environments.
With a current rating of 2A and supporting voltages up to 125VAC and 125VDC, the fuse is suitable for a broad range of electronic and electrical equipment, including alarm systems, audio/visual devices, computer boards, portable telephones, and power supplies. Its thermoplastic body and miniature surface mount design enable space-saving integration into modern PCB assemblies.
Features a time delay FF characteristic to handle transient surges and protect sensitive electronics. Breaking capacity of 50A guarantees robust protection against high fault currents. Heat-resistant fuseholder capable of withstanding 260°C reflow conditions for industrial soldering processes.
Wide operating temperature range from -55°C to 125°C enables use in varied environments. Reel package type supports automated insertion for production efficiency. Compliant with CSA, RoHS, and UL 94 V-0 safety approvals.
The Littelfuse 0154002.DR comes with tin/lead plated beryllium copper alloy terminals, ensuring reliable electrical connectivity. Miniature size and surface mount technology offer considerable space and time savings for low voltage applications.
Industrial and commercial use cases include electronics manufacturing, automation, original equipment assembly, and specialized PCB protection where quality and reliability are critical.
Explore more Littelfuse circuit protection solutions in the EnvMart Electrical Fuse category for enhanced safety and productivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse 0154002.DR has a current rating of 2A.
It supports voltage ratings of up to 125V AC and 125V DC.
The breaking capacity is rated at 50A, providing robust protection against high fault currents.

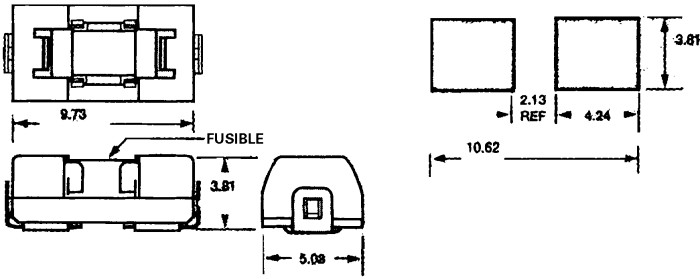

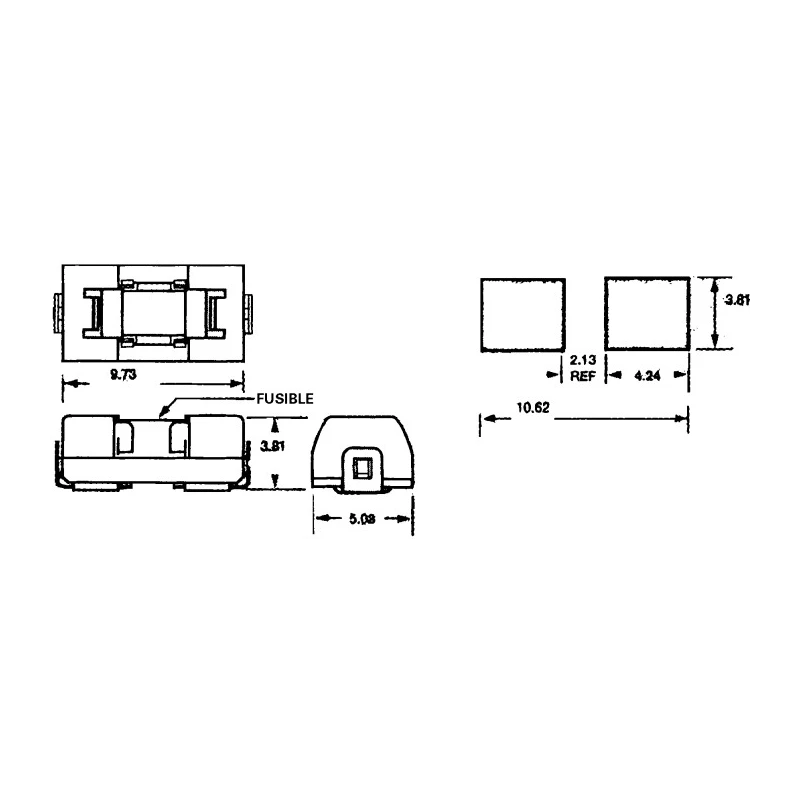

This fuse has dimensions of 3.81mm in height, 5.03mm in width, and 9.73mm in depth.
It features a thermoplastic body and tin/lead plated beryllium copper alloy terminals for reliable connectivity.
The operating temperature range is from -55°C to 125°C.
It has a time delay FF characteristic, which helps manage transient surges effectively.
Yes, it is compliant with CSA, RoHS, and UL 94 V-0 safety standards.
The Littelfuse 0154002.DR comes in a reel package type, facilitating easier automated insertion.
This model is suitable for a range of applications including alarm systems, audio/visual devices, and computer boards.
It is part of the Littelfuse 154 Series OMNI-BLOK, designed for effective circuit protection.
The terminals are made of tin/lead plated beryllium copper alloy, ensuring reliable electrical connectivity.
