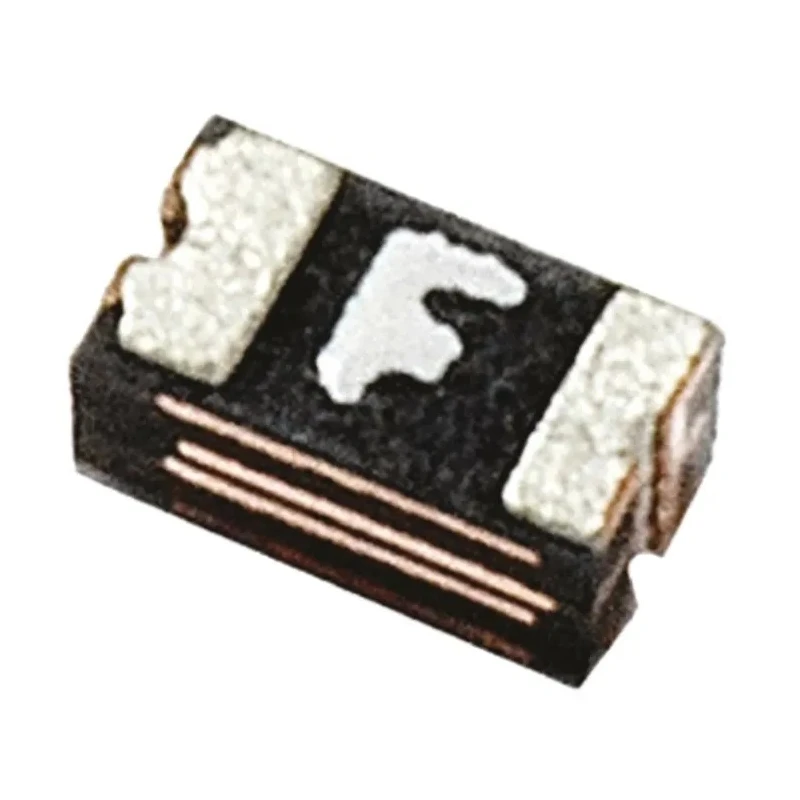

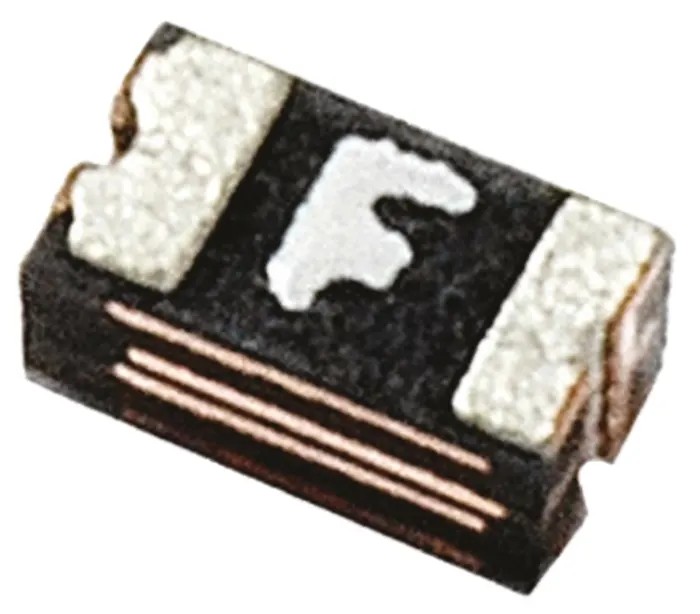

Littelfuse 0.1 A Resettable Fuse 15V DC Surface Mount Overcurrent Protection 0603L010YR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 15V dc |
| Brand | Littelfuse |
| Height | 0.75mm |
| Length | 1.8mm |
| Model | 0603L010YR |
| Width | 1mm |
| Current Rating | 40A |
| Series | 0603L |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 0603 |
| Trip Current | 0.3A |
| Power Dissipation | 0.5W |
| Terminal Material | Tin Plated Copper |
| Standards/Approvals | RoHS |
| Time to Trip | 1s |
| Hold Current | 0.1A |
| Minimum Resistance | 0.9Ω |
| Maximum Resistance | 6Ω |
Key Features
- Compact 0603 surface mount package ideal for space-constrained applications.
- Automatically resets after fault clearing for maintenance-free protection.
- Power dissipation of 0.5W with quick 1 second trip time for overcurrent defense.
- Constructed with tin plated copper terminals and supports operating temperatures from -40°C to 85°C.
- Designed for use in security systems, power supplies, automotive, medical, and telecommunication devices.
Product Description
Littelfuse 0603L010YR is a 0.1 ampere resettable fuse featuring a compact 0603L surface mount design and 15V DC voltage rating. This fuse uses polymeric positive temperature coefficient (PTC) technology to provide overcurrent protection in compact electronic circuits where space is limited and maintenance-free resettable protection is needed.
The fuse rapidly changes from a low resistance state to a high resistance state in response to an overcurrent or short circuit condition, automatically resetting after fault conditions clear and power is removed, allowing for thousands of protection cycles.
With a hold current rating of 0.1A, trip current at 0.3A, and power dissipation of 0.5 watts, it protects sensitive electronics reliably. Operating temperature range is wide from -40°C to 85°C, and it features tin plated copper terminals for durability and reliable connection. Its physical dimensions are 1.8 mm length, 1 mm width, and 0.75 mm height.
This resettable fuse is suitable for use in a variety of industrial and commercial applications including security systems, power supplies and transformers, automotive electronics, medical equipment, instrumentation and control devices, telecommunications, audio visual equipment, and computer peripherals.
Compact 0603 surface mount technology enabling low profile design. Auto-reset PTC function provides maintenance-free protection against overcurrent. Wide operational temperature range from -40°C to 85°C. Tin plated copper terminal material ensures stable electrical contact.
Applications include automotive, medical, security, telecommunications, and power electronics.
This Littelfuse resettable fuse series (0603L) complies with RoHS standards for environmental safety. The fuse is supplied in a reel package facilitating automated assembly, improving production efficiency in manufacturing.
Explore more Resettable Fuses and overcurrent protection products to find the optimum solution for your electronic safety needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 15V DC.
The hold current rating is 0.1A.
The trip current for this fuse is 0.3A.
The dimensions are 1.8 mm in length, 1 mm in width, and 0.75 mm in height.
It has a power dissipation of 0.5W.
The operating temperature range is from -40°C to 85°C.
The terminals are constructed from tin plated copper.
It has a trip time of 1 second during an overcurrent condition.
This fuse is supplied in a reel package, which facilitates automated assembly.
Yes, it complies with RoHS standards for environmental safety.
It is suitable for applications in automotive, medical, security, telecommunications, and power electronics.
The minimum resistance is 0.9Ω and the maximum resistance is 6Ω.
