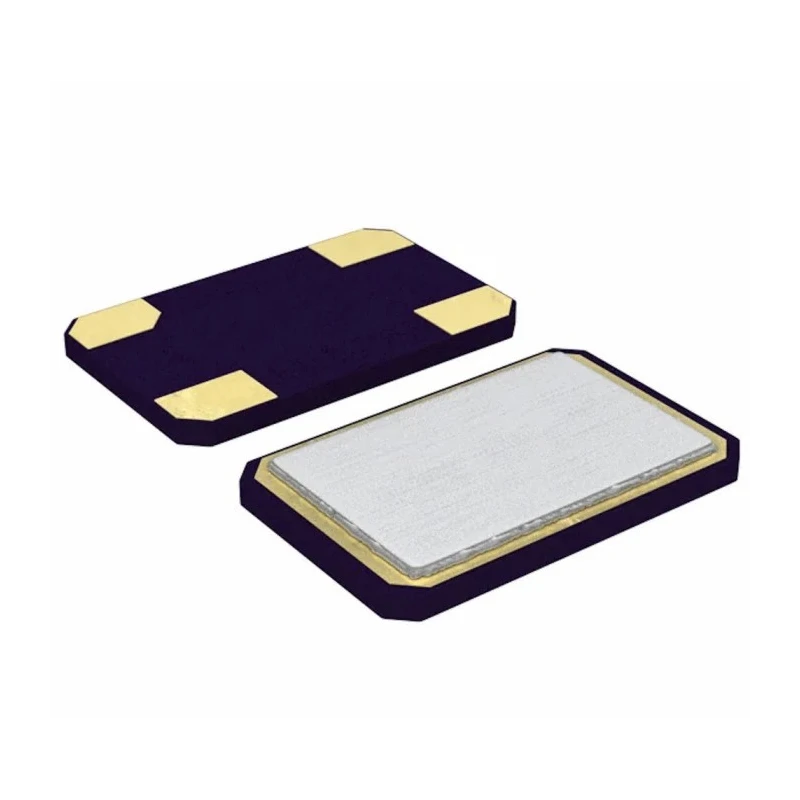

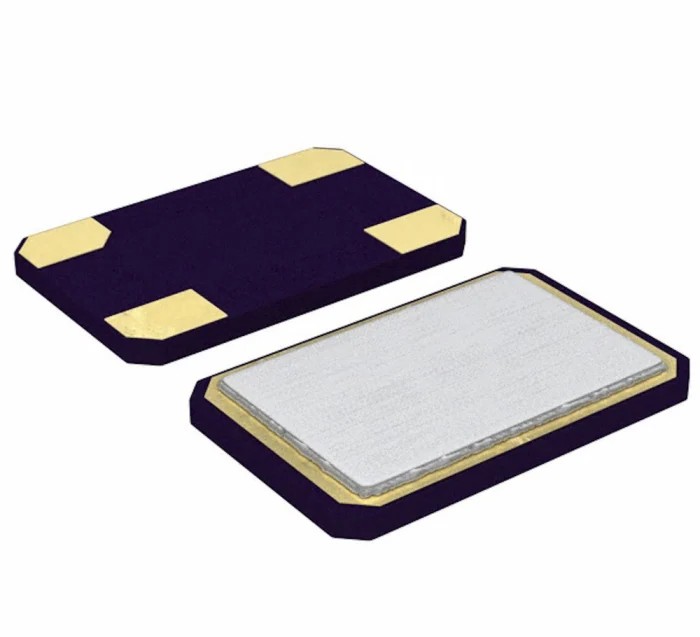

Abracon 20 MHz Ceramic SMD Crystal ±20 ppm Frequency Tolerance Surface Mount 5 mm x 3.2 mm x 1.1 mm ABM3B

Name: Abracon 20 MHz Ceramic SMD Crystal ±20 ppm Frequency Tolerance Surface Mount 5 mm x 3.2 mm x 1.1 mm ABM3B
Brand: Abracon
SKU: 95783



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	1.1mm
Length	5mm
Model	ABM3B
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	ABM3B
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	REACH, RoHS
Standard Frequency	20MHz
Load Capacitance	18pF
Series Resistance	70Ω

Key Features

The crystal operates at a standard frequency of 20 MHz.
Features a ceramic package with metal lid for high precision and reliability.
Package dimensions measure 5 mm length, 3.2 mm width, and 1.1 mm height.
Load capacitance is rated at 18 pF suitable for high density electronics.
Operating temperature ranges from -20°C to 70°C making it suitable for various environments.
Series resistance is 70 Ω ensuring stable oscillation performance.
Packaged in tape and reel for efficient surface mount device assembly.
Applications include cellular telephones, pagers, PCMCIA, wireless devices, and test equipment.

Product Description

Abracon ABM3B-20.000MHZ-B2-T is a 20 MHz ceramic SMD crystal designed for surface mount applications requiring high precision frequency control with a frequency tolerance of ±20 ppm. The crystal features a ceramic package with a metal lid that ensures high reliability and fundamental mode operation.

This crystal unit has package dimensions of 5 mm length, 3.2 mm width, and 1.1 mm height, making it compact and suitable for high density electronics packaging. The crystal's load capacitance is 18 pF, enabling compatibility with a variety of oscillator circuits.

It provides frequency stability of ±50 ppm and operates reliably across a temperature range from -20°C to 70°C. The series resistance of 70 ohms supports stable oscillation in typical applications requiring precise timing signals.

The ABM3B series is RoHS and REACH compliant, reflecting adherence to important environmental standards. It is not designed for automotive standard applications but is ideal for communications and industrial testing equipment.

The device is especially suited for cellular telephones. High density applications, wireless communications, and pagers. PCMCIA compliant modules where compactness and precision are essential. Equipment requiring stable and accurate clock signals in communication and test environments.

Packaged in tape and reel format for automated placement and assembly on PCBs.

Manufactured in China, the ABM3B-20.000MHZ-B2-T crystal unit supports demanding industrial and commercial electronics assembly processes. This product is part of EnvMart's extensive range of crystal units recommended for industrial, communications, and test equipment sectors.
