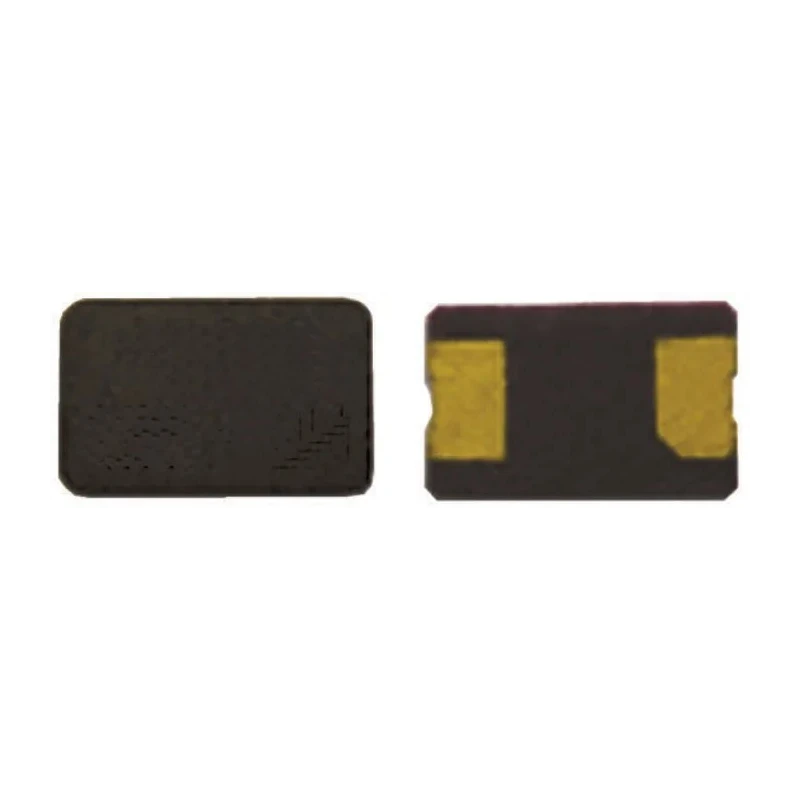

Euroquartz 10 MHz Crystal ±30 ppm Surface Mount 2-Pin 5 mm x 3.2 mm x 0.9 mm 12pF Load 10.000MHz MJ2/30/30/-40+85/12pF
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Euroquartz |
| Height | 0.9mm |
| Length | 5mm |
| Model | 10.000MHz MJ2/30/30/-40+85/12pF |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 10MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
Key Features
- The crystal is designed for surface mounting in compact electronic assemblies.
- It features a load capacitance of 12pF, ensuring precise frequency characteristics.
- Series resistance is rated at 100Ω, supporting stable oscillation.
- Operating temperature range spans from -40°C to 85°C suitable for industrial environments.
- Packaging is supplied tape and reel, facilitating automated assembly processes.
- The component is RoHS compliant, meeting environmental standards.
- Manufactured in Taiwan, Province Of China, maintaining quality assurance.
- Pin count is 2, optimized for surface mount technology applications.
Product Description
Euroquartz 10.000MHz MJ2/30/30/-40+85/12pF is a high precision crystal oscillator component designed for surface mount technology (SMT) applications. Operating at a standard frequency of 10 MHz, it provides frequency stability of ±30 ppm, which is critical for timing accuracies in electronic circuits.
The compact ceramic case measures 5 mm in length, 3.2 mm width, and a height of 0.9 mm, making it ideal for densely populated printed circuit boards (PCBs). It features a 2-pin configuration for standard oscillator circuit designs, with a load capacitance of 12 pF that helps maintain frequency accuracy and reduce phase noise.
Series resistance is specified at 100Ω, ensuring that oscillations are maintained reliably under typical circuit conditions. Operating temperature ranges from -40°C up to 85°C, qualifying this component for industrial and commercial electronics operating in various temperature environments without performance degradation.
The product packaging is tape and reel format, suited for high-speed automated pick-and-place machinery commonly used in modern electronics manufacturing, improving production efficiency and reducing assembly time.
Euroquartz guarantees RoHS compliance, ensuring the crystal adheres to environmental and hazardous substance standards globally, supporting green manufacturing practices. The origin is Taiwan, Province Of China, reflecting manufacturing standards and quality control consistent with industry expectations.
The crystal supports frequency control in oscillators, clocks, and timers. It is applicable in telecommunications, industrial control systems, and embedded electronics requiring precise timing. Designed for surface mount technology ensuring easy integration with SMT assembly lines.
Explore more crystal units and related electronic components in the Crystals, Oscillators & Resonators category at EnvMart for comprehensive solutions tailored to industrial and commercial applications.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal oscillator is 10 MHz.
It features a load capacitance of 12 pF, which helps maintain frequency accuracy.
The series resistance is specified at 100Ω, ensuring stable oscillation under typical circuit conditions.
The operating temperature range spans from -40°C to 85°C, making it suitable for industrial environments.
The dimensions of this surface mount crystal are 5 mm in length, 3.2 mm in width, and 0.9 mm in height.
It is packaged in a tape and reel format, facilitating automated assembly processes.
This model supports surface mount technology (SMT) for easy integration into electronic assemblies.
Yes, this crystal is RoHS compliant, adhering to environmental and hazardous substance standards.
This crystal oscillator has a pin count of 2, optimized for standard oscillator circuit designs.
It is applicable in telecommunications, industrial control systems, and embedded electronics requiring precise timing.
The crystal is manufactured in Taiwan, Province Of China, ensuring quality assurance.
The frequency tolerance of this crystal oscillator is ±30 ppm, which is critical for timing accuracies in electronic circuits.
