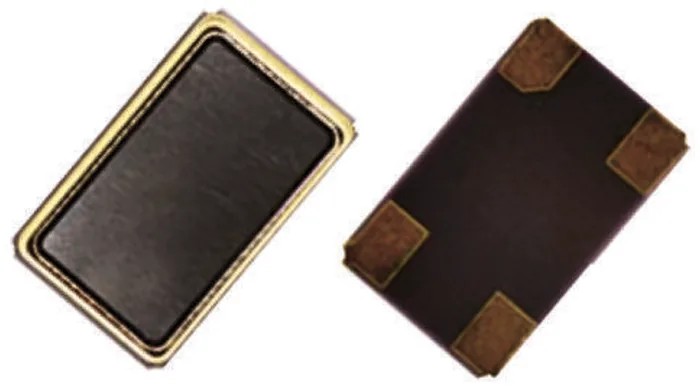

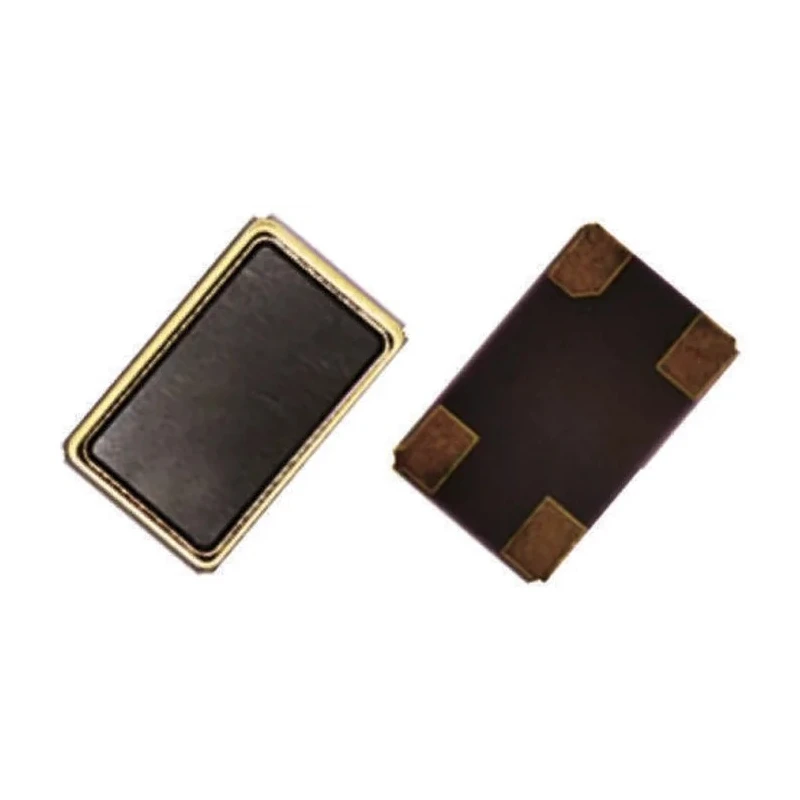

Abracon AKER 25 MHz Crystal ±30 ppm Surface Mount 4-Pin 5 mm x 3.2 mm x 1 mm C5S-25.000-12-3030-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 5mm |
| Model | C5S-25.000-12-3030-X |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | C5S |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 25MHz |
| Load Capacitance | 12pF |
| Series Resistance | 50Ω |
| Abracon 25MHz Crystal ±20ppm SMD 4-Pin 5 x 3.2 x 1.1mmBrand | Abracon |
| QANTEK 25MHz Crystal ±10ppm SMD 4-Pin 5 x 3.2 x 1mmBrand | QANTEK |
Key Features
- Standard frequency of 25 MHz ensures precise oscillation.

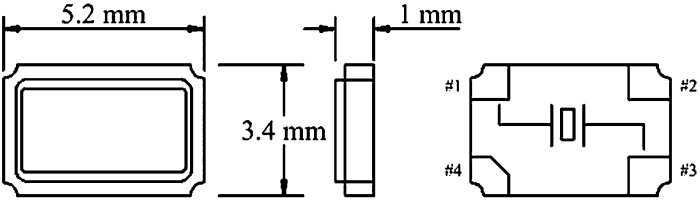

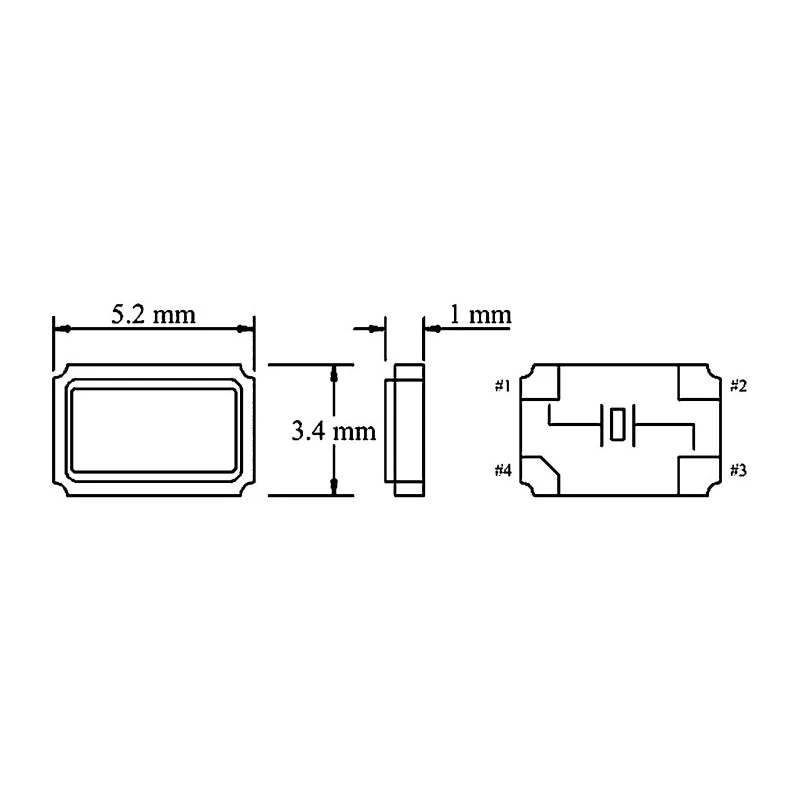

- Surface mount 4-pin package with dimensions 5 mm length, 3.2 mm width and 1 mm height.
- Load capacitance rated at 12 pF for stable operation.
- Operating temperature range from -40°C to 85°C for wide environmental compatibility.
- Series resistance is 50 ohms, suitable for oscillator circuits.
- RoHS compliant, meeting environmental standards.
- Packaging type is tape and reel for automated assembly processes.
- Manufactured in Taiwan, Province Of China.
Product Description
Abracon C5S-25.000-12-3030-X Crystal Unit is a high-quality 25 MHz frequency device designed for surface mount applications with 4 pins and compact package dimensions of 5 x 3.2 x 1 mm. It offers a frequency tolerance of ±30 ppm and stable frequency performance over a temperature range from -40°C to 85°C.
This crystal features a load capacitance of 12 pF and a series resistance of 50 ohms, which makes it suitable for a wide range of oscillator circuits in industrial electronics and communication devices. The surface mount package type and tape & reel packaging facilitate efficient automated PCB assembly lines, ensuring consistent product placement and soldering quality.
The product complies with RoHS standards, ensuring environmental safety and regulatory compliance.
Typical applications include signal timing, frequency control, and stable clock generation for embedded systems, telecommunications, and industrial electronic controls. This crystal is especially suited for use in devices requiring high frequency accuracy and long-term stability.
Manufactured in Taiwan, Province Of China, this component is reliable for demanding industrial, communication, and electronic manufacturing use cases, including computer hardware, signal processing equipment, and instrumentation.
Standard frequency of 25 MHz with ±30 ppm tolerance. Compact surface mount 4-pin package measuring 5 mm x 3.2 mm x 1 mm. Load capacitance of 12 pF optimized for oscillator circuits. Wide operating temperature range from -40°C to 85°C.
Series resistance of 50 Ω ensuring signal integrity. Packaging suitable for automated production: tape and reel. RoHS compliant to meet environmental regulation. Manufactured in Taiwan ensuring quality and reliability. Explore the range of Abracon crystal units and related electronic components in EnvMart for industrial and commercial electronics applications.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 25 MHz.
This model has dimensions of 5 mm in length, 3.2 mm in width, and 1 mm in height.
The load capacitance is rated at 12 pF, which is optimized for stable operation in oscillator circuits.
The series resistance of this crystal unit is 50 ohms, ensuring signal integrity in applications.
It operates within a temperature range from -40°C to 85°C, making it suitable for various environmental conditions.
The crystal unit is packaged in tape and reel format, facilitating automated assembly processes.
Yes, this crystal unit is RoHS compliant, meeting environmental safety standards.
This model features a pin count of 4, suitable for surface mount applications.
Typical applications include signal timing, frequency control, and stable clock generation for embedded systems and telecommunications.
It is manufactured in Taiwan, Province Of China, ensuring quality and reliability for industrial use.
Its load capacitance of 12 pF and series resistance of 50 ohms make it well-suited for stable operation in oscillator circuits.
This crystal unit belongs to the C5S series, which includes various models designed for surface mount applications.
