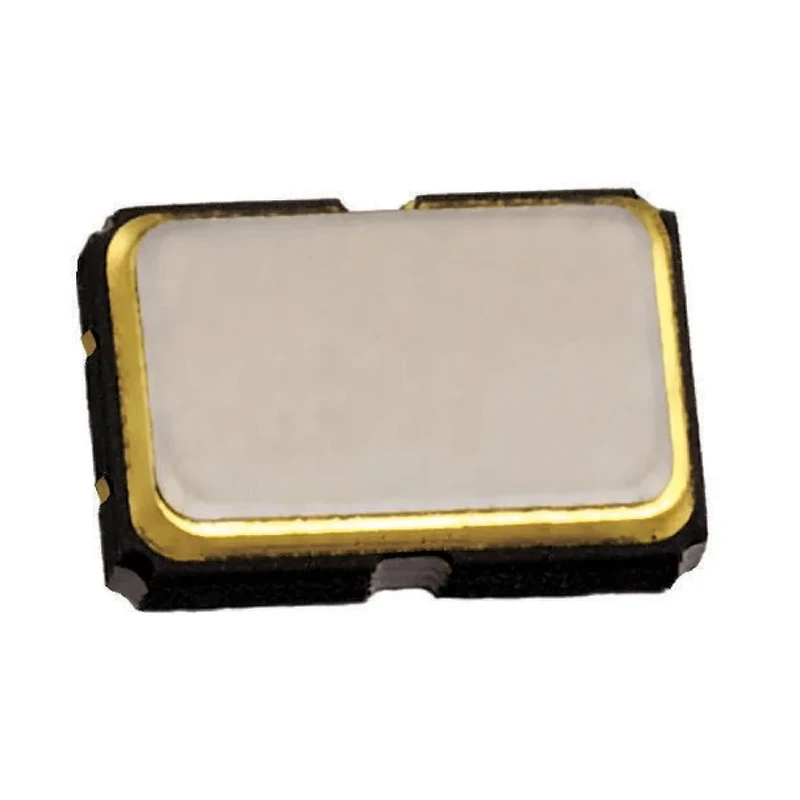

Euroquartz 7.3728 MHz Crystal ±30 ppm Surface Mount 4-Pin 7 mm x 5 mm x 1.2 mm 7.3728MHz MQ/30/30/-40+85/12pF

Euroquartz model 7.3728MHz MQ/30/30/-40+85/12pF is a high precision crystal unit designed for surface mount applications. This 4-pin crystal operates at a standard frequency of 7.3728 MHz with ±30 ppm frequency tolerance and stability, making it suitable for electronic circuits requiring consistent oscillation.

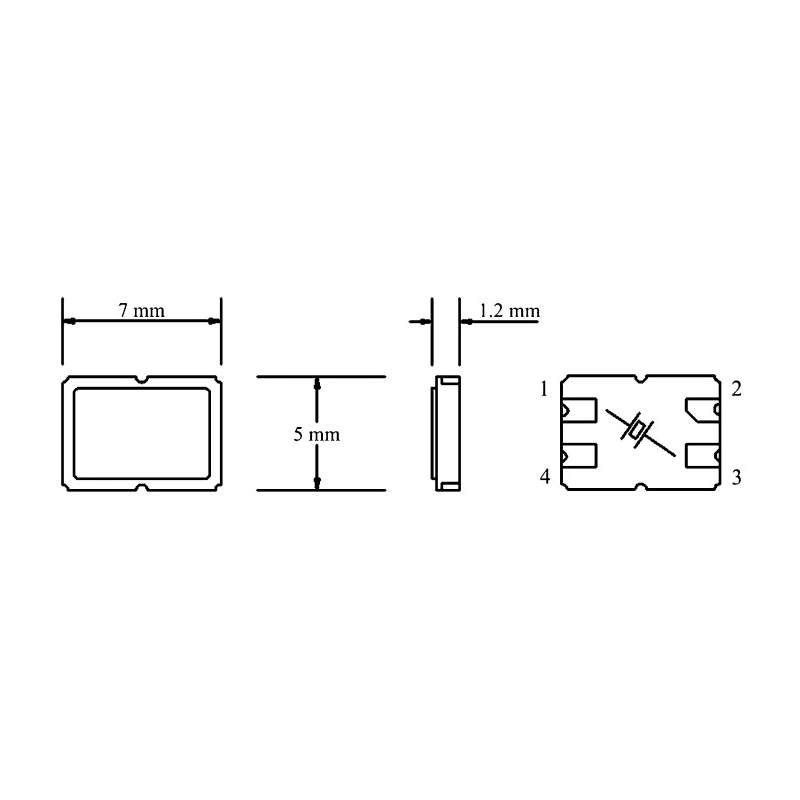

The crystal's surface mount package measures 7 mm in length, 5 mm in width, and 1.2 mm in height, providing a compact footprint suitable for modern PCB designs. Its load capacitance is specified at 12pF, and it features a series resistance of 60 ohms, which optimizes performance in frequency control and timing applications.

Built to withstand operating environments ranging from -40°C to 85°C, this crystal is reliable for industrial, communication, and embedded system uses. Packaged in tape and reel format, it is optimized for automated assembly lines, ensuring efficient manufacturing and reduced handling time.

The 4-pin configuration enhances its compatibility across a variety of electronic components and oscillators. The product conforms to RoHS standards, ensuring environmental compliance. Originating from Taiwan, Province Of China, this crystal unit is a precision component widely used in electronics manufacturing requiring surface mount technology.

This crystal features a compact 7 mm length, 5 mm width, and 1.2 mm height surface mount package. Designed for stable frequency with ±30 ppm frequency tolerance and frequency stability. Operates reliably in temperatures ranging from -40°C to 85°C.

Has a series resistance of 60Ω suitable for precise oscillation circuits. Load capacitance is rated at 12pF ensuring accurate frequency loading. Packaged with tape and reel method for automated machine placement and efficiency.

Pin count is 4, making it compatible with standard crystal oscillator circuits.

This product is suitable for a wide range of applications including industrial electronics, communication equipment, laboratory instrumentation, and commercial electronic devices. Euroquartz crystals provide trusted timing and frequency control for precise circuit operation.
