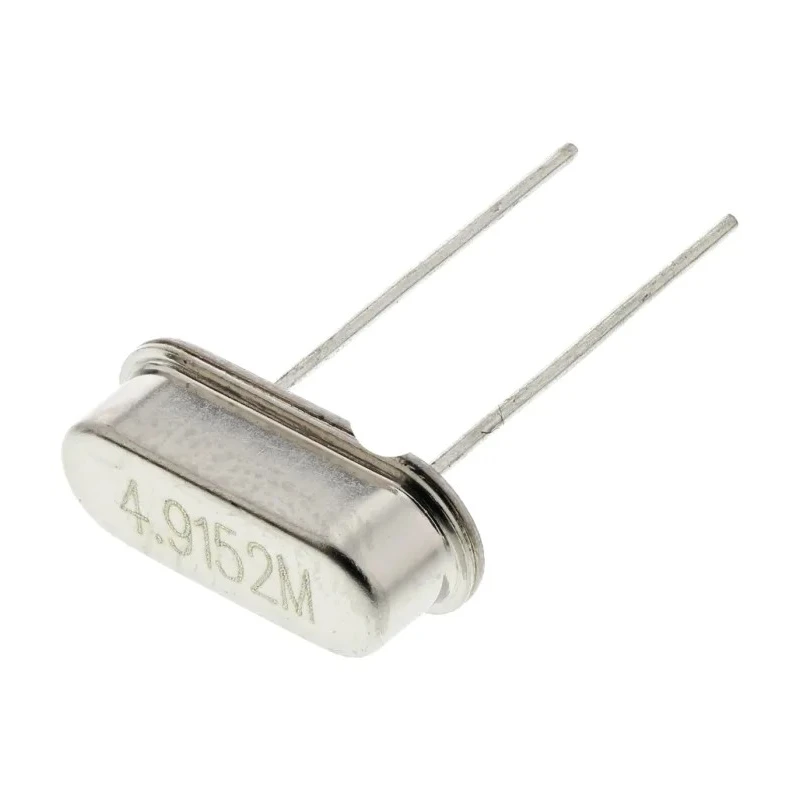

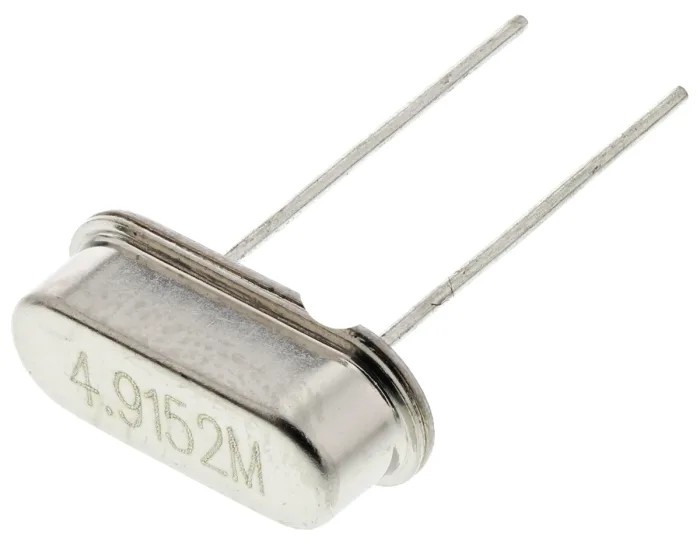

Euroquartz 4.9152 MHz Crystal ±30 ppm HC-49 Through Hole 2-Pin 10.77 mm x 4.34 mm x 3.5 mm 4.9152MHz HC49
Specifications
| Country of Origin | China |
|---|---|
| Brand | Euroquartz |
| Height | 3.5mm |
| Length | 10.77mm |
| Model | HC49 |
| Packaging | Tape & Reel |
| Width | 4.34mm |
| Mount Type | Through Hole |
| Series | HC49/4H |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 4.9152MHz |
| Load Capacitance | 18pF |
| Series Resistance | 120Ω |
Key Features
- Operates with a standard frequency of 4.9152 MHz for precise oscillation.
- Manufactured with an HC-49 package and 2 pins for secure through hole PCB installation.
- Designed for operation within temperature range of -40°C to 85°C suitable for various environments.
- Series resistance rating of 120Ω provides stable circuit performance.
- Meets RoHS certification standards for environmental compliance.
- Packaging includes tape and reel for efficient automated assembly processes.
- Product origin is China with a focus on quality crystal frequency components.
Product Description
Euroquartz HC49 4.9152 MHz Crystal is a high precision crystal unit designed for stable frequency generation in electronic circuits. Featuring a frequency of 4.9152 MHz with a tolerance of ±30 ppm, this through hole crystal offers reliable oscillation performance for various industrial and commercial electronic applications.
The crystal comes in the standard HC-49 package with 2 pins and dimensions of 10.77 mm length, 4.34 mm width, and 3.5 mm height, making it suitable for compact PCB layouts. It has a load capacitance of 18pF, ensuring compatibility with circuit designs requiring specific capacitance values.
Operating temperature ranges from -40°C to 85°C, providing robust performance in diverse temperature environments. The series resistance is rated at 120Ω, supporting stable oscillator circuit function with minimal signal loss.
The product is RoHS compliant, meeting environmental safety standards necessary for global electronic manufacturing. Supplied on tape and reel packaging, it supports automated mounting processes commonly used in mass production.
This crystal unit serves critical roles in timing and frequency control within telecommunications, industrial equipment, instrumentation, and consumer electronics. Its proven quality from manufacturing origin in China reflects reliable performance and operational longevity.
Operates at 4.9152 MHz frequency with ±30 ppm tolerance. HC-49 package with 2 pins for through hole mounting. 18pF load capacitance suited for precise oscillation circuits. Compact physical dimensions enhance space-saving PCB design.
Wide operating temperature range from -40°C to 85°C. Series resistance of 120Ω ensures stable circuit operation. RoHS compliant component for environmentally safe production. Tape & reel packaging ideal for automated assembly lines.
Ideal for industrial Electronics & Electricals, Electronic Components, crystal oscillator circuits, communication devices, instrumentation, and other precise frequency control applications. Explore our category for more crystal units and oscillators on EnvMart.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal oscillator is 4.9152 MHz.
This model has a load capacitance of 18pF, making it suitable for specific circuit designs that require this capacitance value.
The dimensions of the HC-49 package are 10.77 mm in length, 4.34 mm in width, and 3.5 mm in height.
The series resistance rating for this crystal is 120Ω, which supports stable oscillator circuit function.
The operating temperature range for this crystal unit is from -40°C to 85°C, allowing it to perform in various environments.
This crystal is packaged in tape and reel format, which is ideal for efficient automated assembly processes.
This crystal uses a through hole mounting type, designed for secure installation on PCBs.
Yes, this crystal meets RoHS certification standards for environmental compliance.
This crystal is suitable for various applications, including telecommunications, industrial equipment, instrumentation, and consumer electronics.
The pin count for this crystal oscillator is 2, which is standard for HC-49 packages.
This crystal belongs to the HC49/4H series, which is known for its stable frequency generation capabilities.
This crystal is manufactured in China, reflecting a focus on quality in crystal frequency components.
