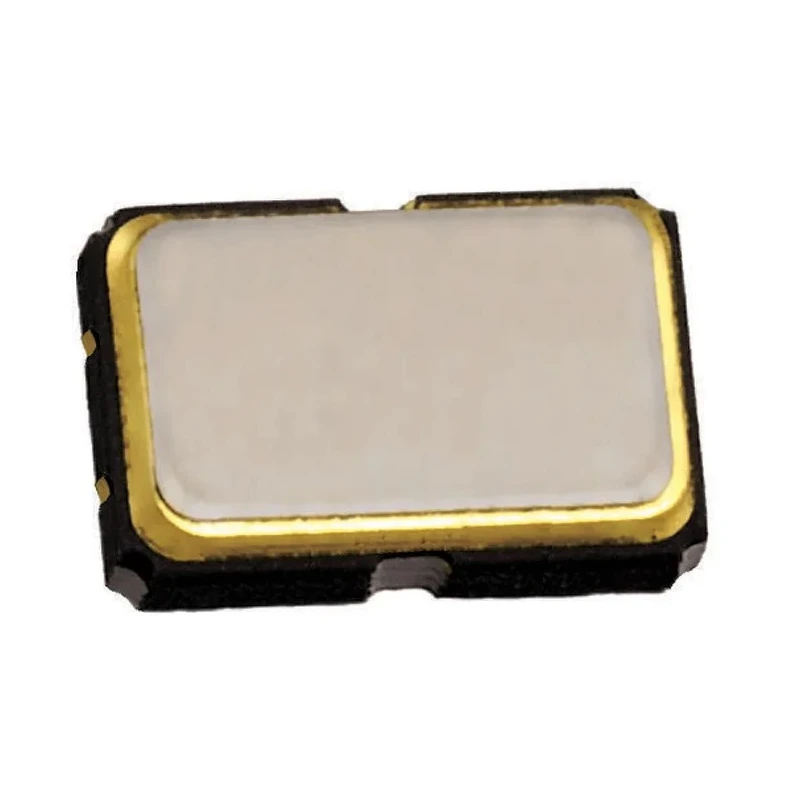

Euroquartz 10 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.2 mm Height 7 mm Length 5 mm Width 10.000MHz MQ/30/30/-40+85/12pF
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Euroquartz |
| Height | 1.2mm |
| Length | 7mm |
| Model | 10.000MHz MQ/30/30/-40+85/12pF |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| Pin Count | 4 |
| Standard Frequency | 10MHz |
| Load Capacitance | 12pF |
| Series Resistance | 60Ω |
Key Features
- Operates at a standard frequency of 10 MHz with ±30 ppm frequency tolerance.
- Features a 12 pF load capacitance suitable for stable oscillation performance.

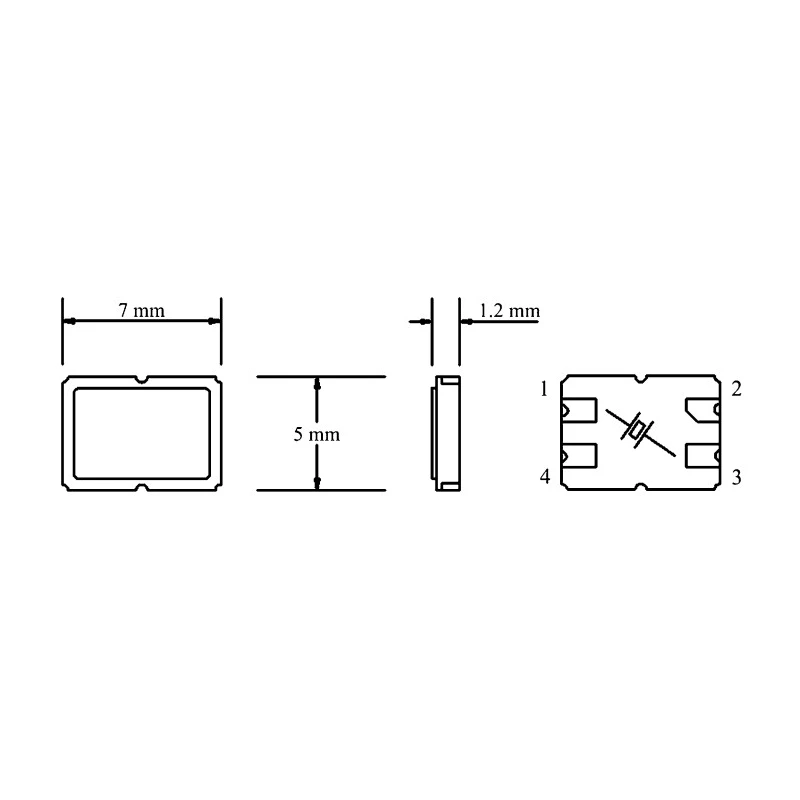

- Compact surface mount package with dimensions 7 mm length, 5 mm width, and 1.2 mm height.
- Rated for operating temperatures ranging from -40°C to 85°C for reliability in varying environments.
- Has a series resistance of 60 Ω optimizing its resonator performance.
- Comes packaged in tape and reel format facilitating automated PCB assembly.
- Constructed in compliance with RoHS environmental standards ensuring lead-free materials.
- Pin count of 4 pins for electrical connection conformity.
Product Description
Euroquartz 10.000MHz MQ/30/30/-40+85/12pF Crystal Surface Mount 4-Pin component offers precise frequency stability for electronic applications requiring a 10 MHz oscillation standard with a tolerance of ±30 ppm.
This crystal unit is designed for surface mounting and has a compact package size with 7 mm length, 5 mm width, and 1.2 mm height, making it ideal for space-constrained circuit boards.
Its 12 pF load capacitance ensures optimal oscillation, and it maintains stable performance across a broad temperature range of -40°C to 85°C, suitable for industrial, communication, and consumer electronics.
The 60 Ω series resistance provides reliable resonant qualities while minimizing energy loss, improving circuit efficiency. Packaged in tape and reel format, this crystal fits automated placement machinery to streamline manufacturing processes.
It is certified RoHS compliant, confirming adherence to environmental safety standards and lead-free construction. Operates at 10 MHz standard frequency with ±30 ppm tolerance. Surface mount 4-pin structure with compact dimensions of 7 mm × 5 mm × 1.2 mm.
Load capacitance of 12 pF for effective oscillation. Operating temperature range from -40°C to 85°C. Series resistance of 60 Ω for stable resonance. Delivered in tape and reel packaging for automated assembly. RoHS compliant ensuring environmentally friendly manufacturing.
Pin count configured as 4 pins.
These crystal units are widely used in oscillators in telecommunications equipment, computers, and other precision timing devices. Their robust design and stable characteristics allow use in industrial, laboratory, and consumer electronics applications.
Explore more components and electronic solutions by browsing our Electronics & Electricals categories at EnvMart.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crystal operates at a standard frequency of 10 MHz with a frequency tolerance of ±30 ppm.
It has compact dimensions of 7 mm in length, 5 mm in width, and 1.2 mm in height.
The load capacitance for this crystal is 12 pF, which is suitable for stable oscillation performance.
The series resistance is 60 Ω, optimizing its resonator performance.
It is rated for operating temperatures ranging from -40°C to 85°C, making it suitable for various environments.
It comes packaged in tape and reel format, facilitating automated PCB assembly.
This model is designed for surface mounting, making it ideal for space-constrained applications.
Yes, it is constructed in compliance with RoHS environmental standards, ensuring lead-free materials.
This unit has a pin count of 4 pins for electrical connection conformity.
These crystal units are widely used in oscillators in telecommunications equipment, computers, and other precision timing devices.
The country of origin for this crystal is Taiwan.
It adheres to RoHS standards, confirming its compliance with environmental safety regulations.
