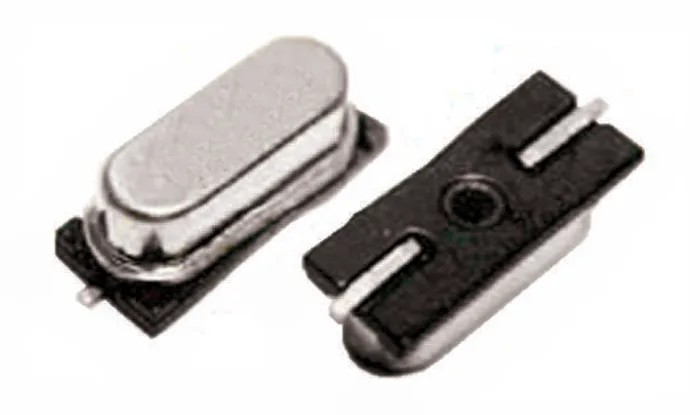

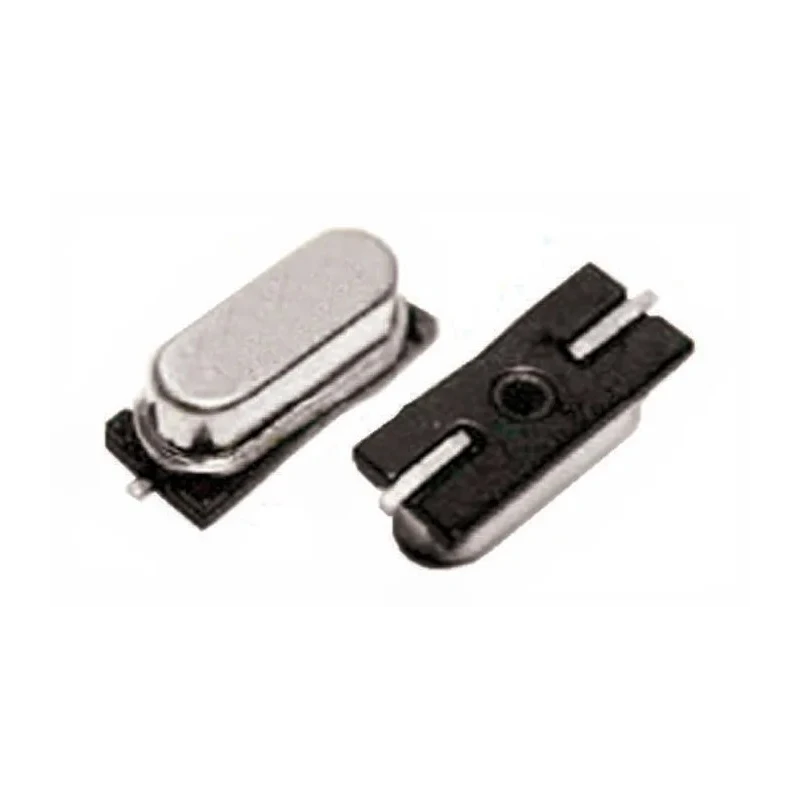

Euroquartz 12 MHz Crystal ±30 ppm Surface Mount 18 pF Load Capacitance 2-Pin 4.2 mm x 12.000MHz 49USMX/30/50/-40+85/18pF/ATF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Euroquartz |
| Height | 4.2mm |
| Length | 12.4mm |
| Model | 12.000MHz 49USMX/30/50/-40+85/18pF/ATF |
| Packaging | Tape & Reel |
| Width | 4.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| Pin Count | 2 |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Operates at a standard frequency of 12 MHz with 18 pF load capacitance.
- Features a compact surface mount package measuring 12.4 mm length, 4.5 mm width, and 4.2 mm height.
- Utilizes a 2-pin HC49USMX metal case suitable for SMT assembly.
- Endures operating temperature range from -40°C to 85°C for industrial reliability.
- Exhibits a series resistance of 50 Ω ensuring stable oscillation performance.
- Complies with RoHS standards for environmental safety.
- Supplied in Tape & Reel packaging optimized for automated manufacturing processes.
- Ideal for use in electronic, industrial, and communication equipment circuits.
Product Description
Euroquartz 12.000MHz 49USMX/30/50/-40+85/18pF/ATF crystal is a high precision 12 MHz surface mount crystal oscillator engineered for reliable frequency generation in various electronic devices. It offers a frequency tolerance of ±30 ppm and frequency stability up to ±50 ppm, ensuring accurate timing performance essential for industrial, communication, and instrumentation systems.

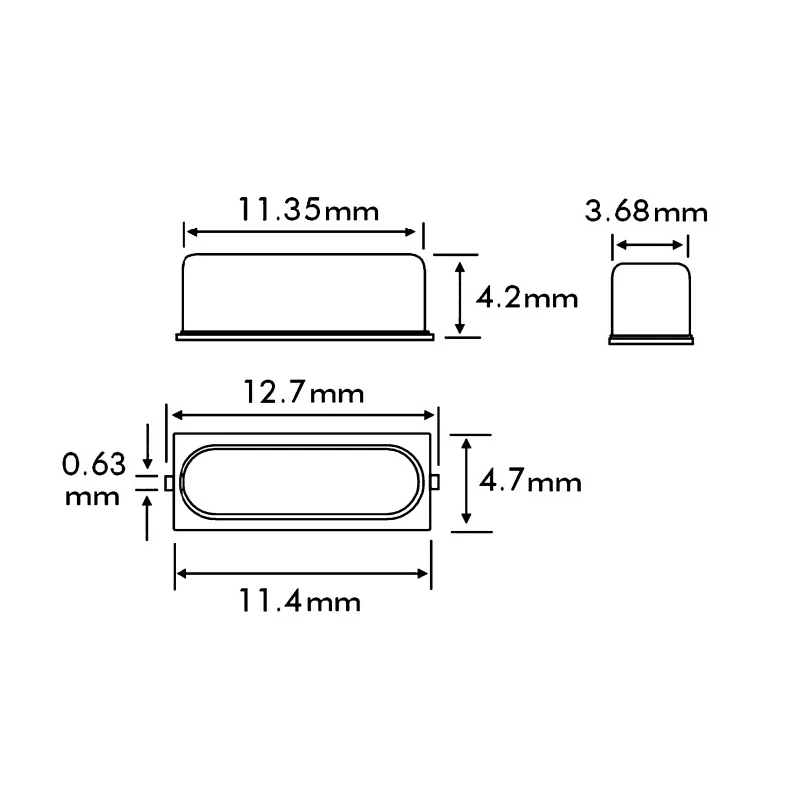

The crystal features a compact HC49USMX metal case suitable for surface mounting with a 2-pin configuration. Key mechanical dimensions include 12.4 mm length, 4.5 mm width, and 4.2 mm height, making it compatible with dense PCB layouts. It operates within a wide temperature range of -40°C to 85°C, supporting robust industrial environments.
With a load capacitance of 18 pF and a series resistance of 50 Ω, this crystal delivers stable oscillation necessary for sensitive electronic circuitry. The product complies with RoHS directives, ensuring no harmful substances and environmental compatibility.
Packaging is provided on Tape & Reel, facilitating automated placement on manufacturing lines and improving assembly efficiency. The 2-pin SMT design allows for straightforward integration in oscillator circuits and timing modules.
This crystal unit is ideal for applications in telecommunications, computing, industrial instrumentation, and consumer electronics requiring precise and stable frequency reference sources.
Operates at a standard frequency of 12 MHz with 18 pF load capacitance. Compact surface mount HC49USMX metal case with 2-pin package. Operational temperature range from -40°C to 85°C for durability. Series resistance of 50 Ω for stable oscillations.
RoHS compliant ensuring environmental safety. Supplied in Tape & Reel packaging for efficient assembly. Suitable for industrial, communication, and consumer electronic applications. Frequency tolerance of ±30 ppm and frequency stability ±50 ppm.
Discover a wide range of crystals, oscillators, and resonators on EnvMart for your electronic component needs.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a standard frequency of 12 MHz.
It has a load capacitance of 18 pF.
The dimensions are 12.4 mm in length, 4.5 mm in width, and 4.2 mm in height.
It operates within a temperature range of -40°C to 85°C.
The series resistance is 50 Ω, which ensures stable oscillation performance.
It is supplied in Tape & Reel packaging, optimized for automated manufacturing processes.
This model features a surface mount design suitable for SMT assembly.
It complies with RoHS standards, ensuring environmental safety.
The frequency tolerance is ±30 ppm, providing reliable timing performance.
It is suitable for use in telecommunications, computing, industrial instrumentation, and consumer electronics requiring precise frequency references.
This model has a pin count of 2.
The model number is 12.000MHz 49USMX/30/50/-40+85/18pF/ATF.
