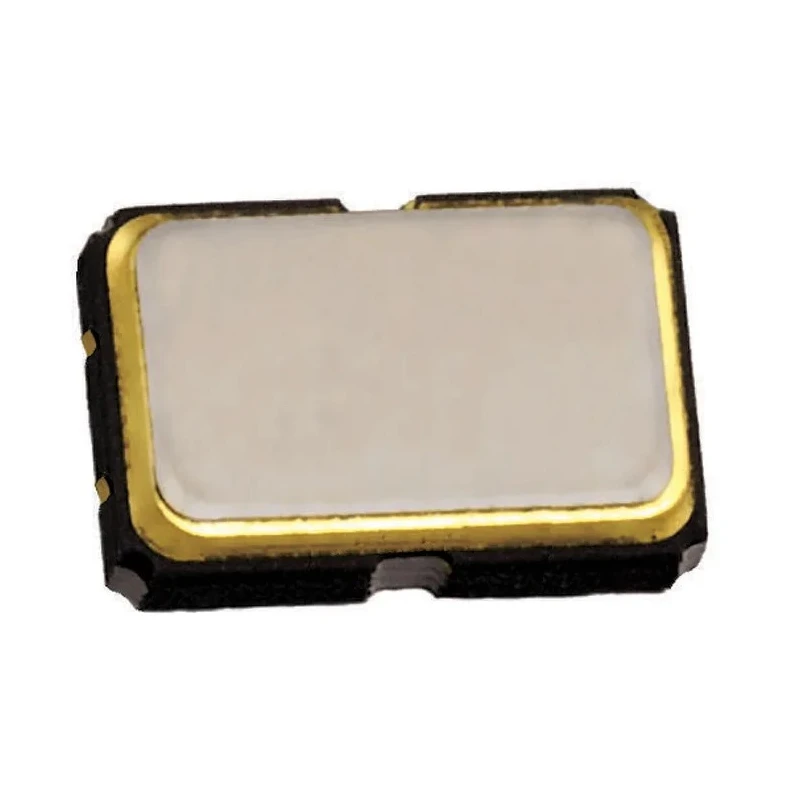

Euroquartz 11.0592 MHz Crystal ±30 ppm Surface Mount 4-Pin 7 mm x 5 mm x 1.2 mm 12 pF 11.0592MHz MQ/30/30/-40+85/12pF
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Euroquartz |
| Height | 1.2mm |
| Length | 7mm |
| Model | 11.0592MHz MQ/30/30/-40+85/12pF |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 11.0592MHz |
| Load Capacitance | 12pF |
| Series Resistance | 50Ω |
Key Features
- This crystal operates at a standard frequency of 11.0592 MHz with ±30 ppm frequency stability.
- It features a 12pF load capacitance, suitable for many electronic oscillator circuits.

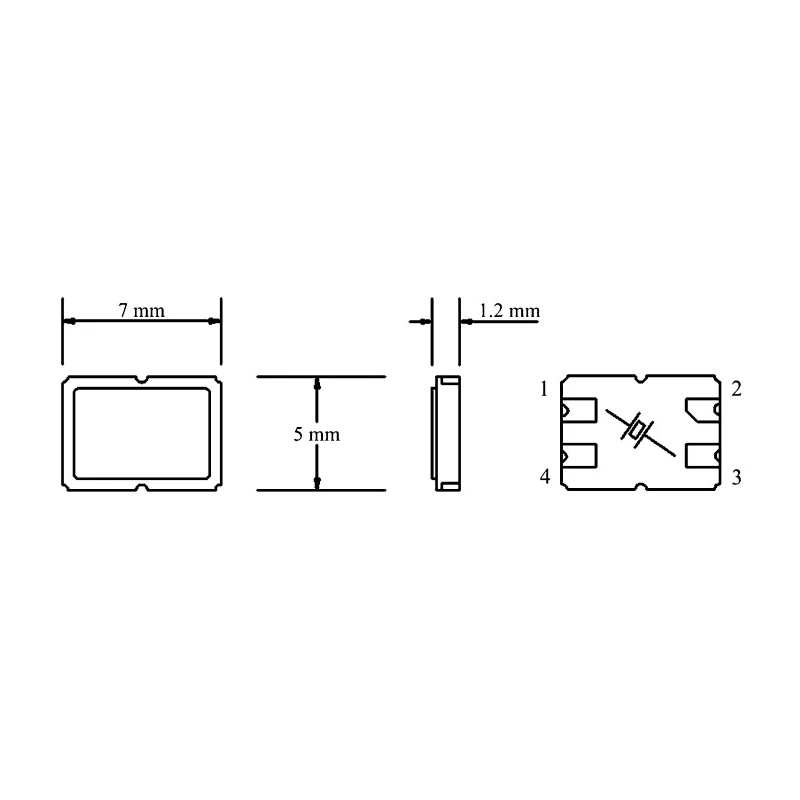

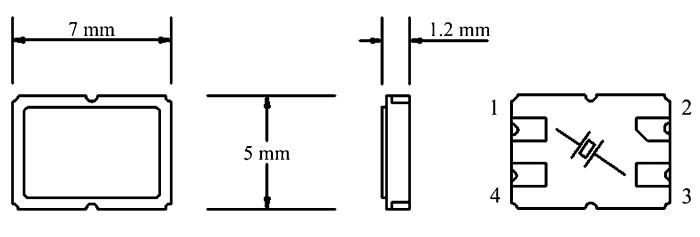

- The crystal package is a compact surface mount type measuring 7 mm length, 5 mm width, and 1.2 mm height.
- Designed for operation in temperatures ranging from -40°C to 85°C, supporting robust industrial applications.
- The series resistance is rated at 50 ohms, maintaining signal accuracy.
- Packaging is supplied on tape and reel for efficient automated PCB assembly.
- This product is RoHS compliant and manufactured in Taiwan, Province Of China.
- It contains 4 pins for secure electrical connection in surface mount technology designs.
Product Description
Euroquartz 11.0592MHz MQ/30/30/-40+85/12pF surface mount crystal is a precision passive electronic component designed for frequency control in oscillator circuits. This crystal operates at a standard frequency of 11.0592 MHz with a frequency tolerance and stability of ±30 ppm, providing reliable and stable oscillation for electronic devices.
The device features a compact 4-pin surface mount package with dimensions of 7 mm length, 5 mm width, and 1.2 mm height, making it ideal for space-constrained PCB layouts.
Designed to operate in extreme environmental conditions, the crystal supports temperatures ranging from -40°C to 85°C, ensuring durability in automotive, industrial, and commercial electronics applications.
The load capacitance is 12 pF, suitable for tuning and impedance matching in oscillator circuits. The series resistance is 50 ohms, contributing to signal integrity and performance.
This component is RoHS compliant and is supplied on tape and reel packaging facilitating automated assembly processes in manufacturing. This crystal provides stable frequency control at 11.0592 MHz with ±30 ppm tolerance.
Compact surface mount 4-pin package ensures easy PCB integration. Temperature range from -40°C to 85°C supports harsh environments. 50 ohms series resistance enhances signal accuracy in circuits. 12 pF load capacitance optimizes oscillator performance.
RoHS compliant for environmentally responsible manufacturing. Supplied on tape and reel for efficient production compatibility.
This Euroquartz crystal unit is suitable for use in electronic design, manufacturing, industrial automation, communications equipment, and a variety of frequency controlling applications requiring high precision and reliability.
Explore more high-quality electronic components and crystals by Euroquartz and other trusted brands in the Crystals, Oscillators & Resonators category on EnvMart to meet your industrial and commercial requirements.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal operates at a standard frequency of 11.0592 MHz.
It features a load capacitance of 12 pF, suitable for various electronic oscillator circuits.
The package measures 7 mm in length, 5 mm in width, and 1.2 mm in height.
The series resistance is rated at 50 ohms, which helps maintain signal accuracy.
This model is designed to operate in temperatures ranging from -40°C to 85°C.
It is supplied on tape and reel, facilitating efficient automated PCB assembly.
Yes, this crystal is RoHS compliant, indicating it meets environmental standards.
This model features 4 pins for secure electrical connections in surface mount technology designs.
It is designed for surface mount applications, making it suitable for compact PCB layouts.
This crystal is suitable for electronic design, manufacturing, industrial automation, and communications equipment.
The maximum operating temperature for this crystal is 85°C.
It is manufactured in Taiwan, Province Of China.
