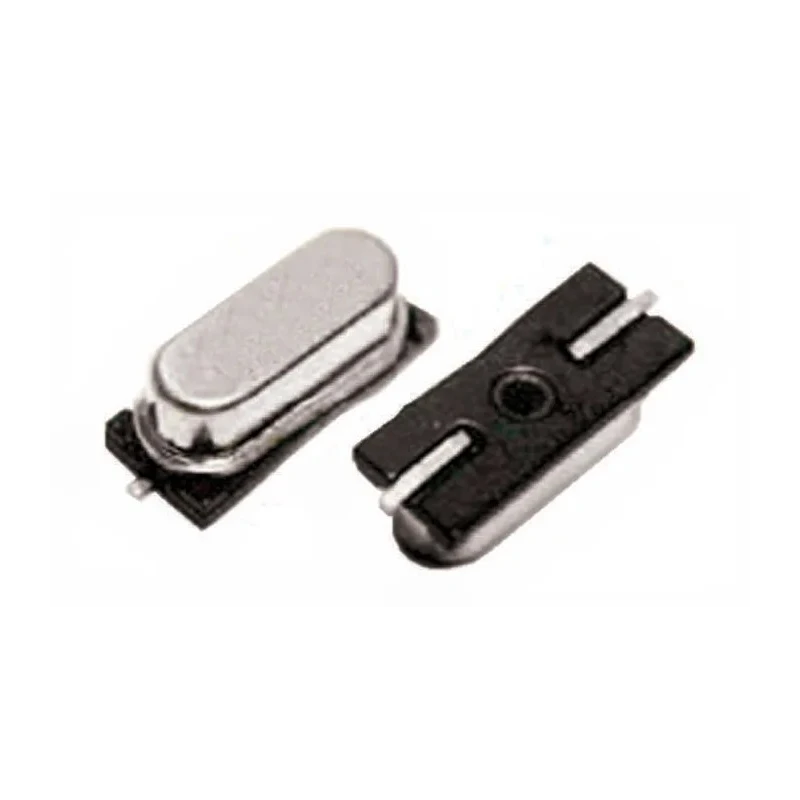

Euroquartz 16.384 MHz Crystal ±30 ppm Surface Mount 2-Pin 4.2 mm Height 12.4 mm 16.384MHz 49USMX/30/50/-40+85/18pF/ATF

Euroquartz 16.384MHz 49USMX/30/50/-40+85/18pF/ATF Crystal unit is a surface mount electronic component engineered for high-precision frequency control in industrial, communication, and instrumentation applications. Operating at a standard frequency of 16.384 MHz, this crystal offers excellent frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, ensuring dependable timing accuracy.

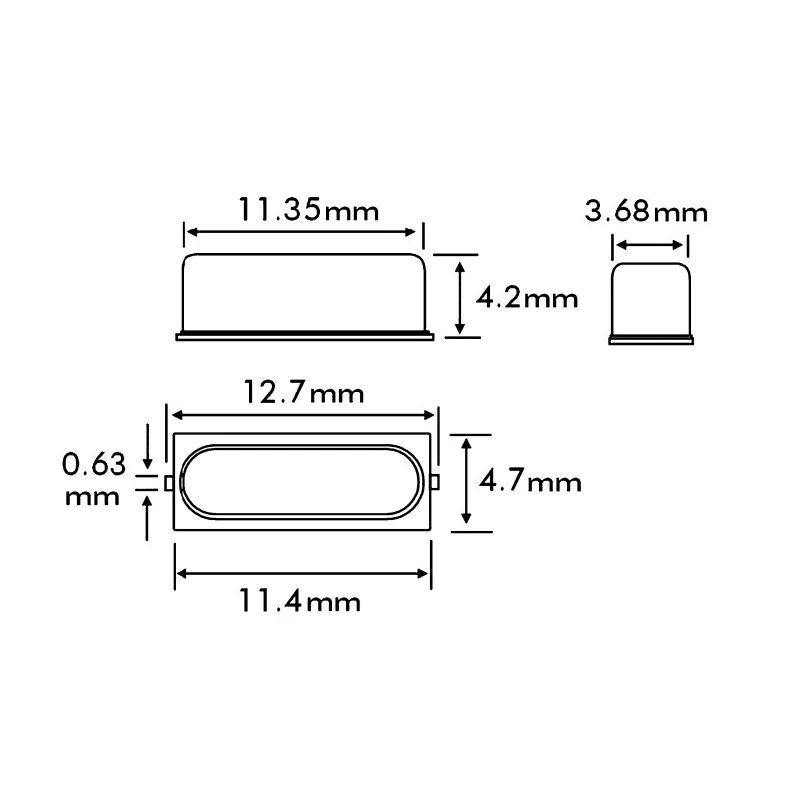

Designed with a 2-pin surface mount package, this crystal facilitates integration into printed circuit boards with compact dimensioning: 12.4 mm in length, 4.5 mm in width, and 4.2 mm in height. The load capacitance of 18 pF optimizes electrical performance, while the series resistance of 45 ohms maintains signal integrity within oscillation circuits.

This component supports a broad temperature operating range from -40°C to 85°C, making it suitable for demanding environments in industrial automation, telecommunications, and consumer electronics products. As a RoHS-compliant device, it meets environmental safety standards.

Standard frequency of 16.384 MHz ensures compatibility with precise timing requirements. Frequency tolerance of ±30 ppm allows for tight frequency control under varying conditions. Stable operation within ±50 ppm frequency stability enhances circuit reliability.

Compact surface mount form factor with 2 pins for efficient PCB layout. 18 pF load capacitance supports effective oscillation performance. Dimensions 12.4 x 4.5 x 4.2 mm support compact device designs. Operating temperature range from -40°C to 85°C ensures durability in harsh environments.

Series resistance of 45 ohms contributes to low signal loss. Compliant with RoHS standards, promoting environmentally friendly manufacturing.

This crystal unit is ideal for use in electronics manufacturing, instrumentation, communication devices, and industrial automation systems requiring exact frequency control. Euroquartz’s heritage in crystal manufacturing guarantees quality and performance.
