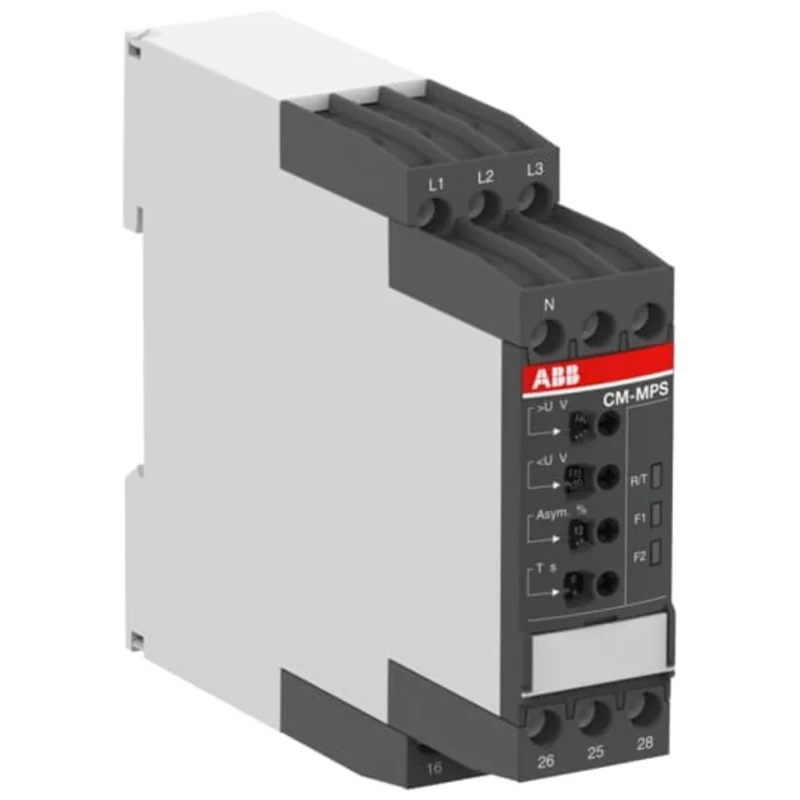

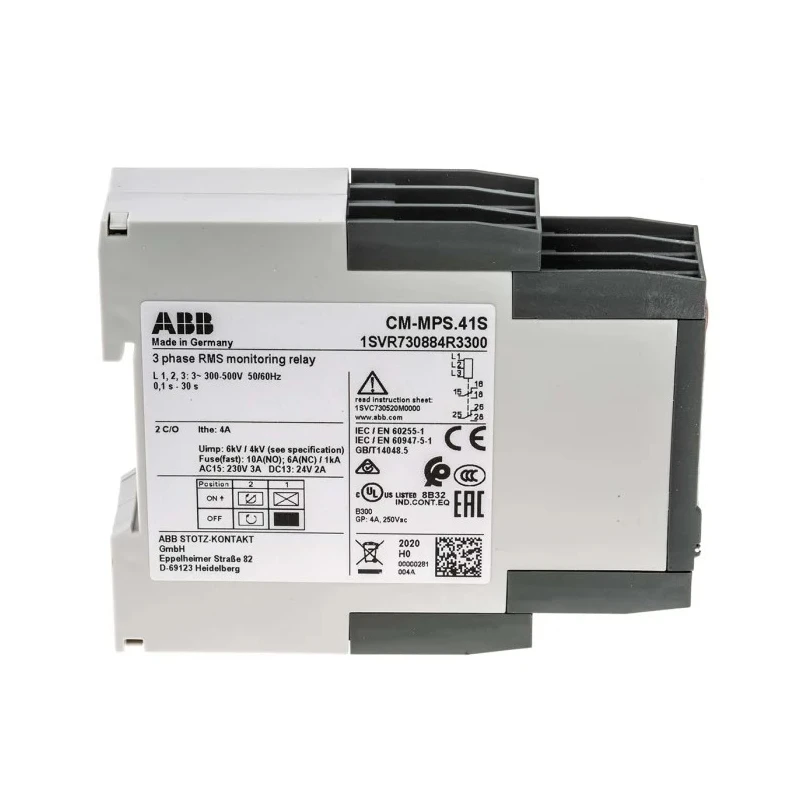

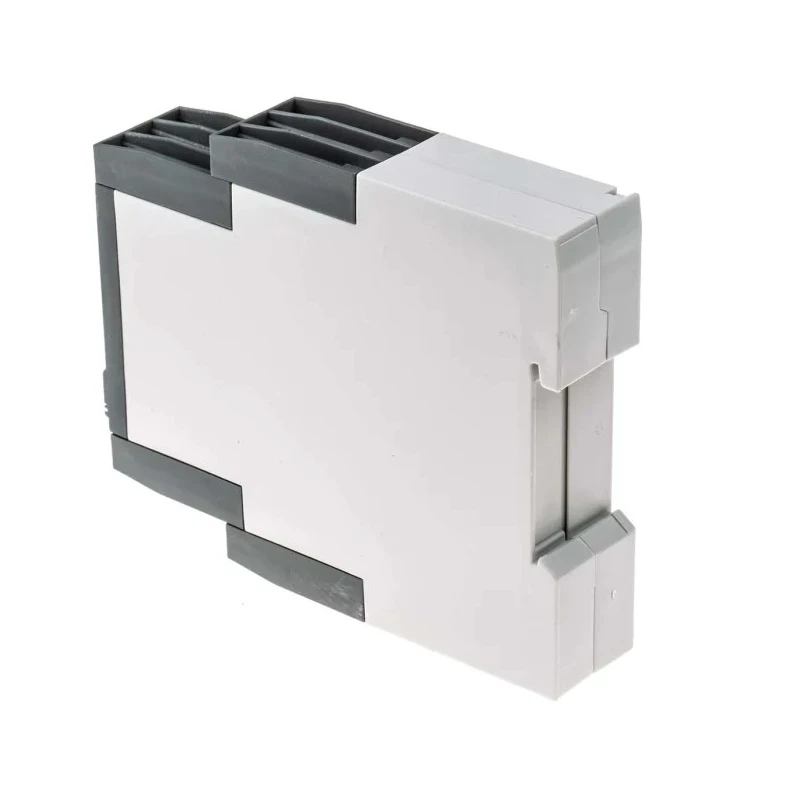

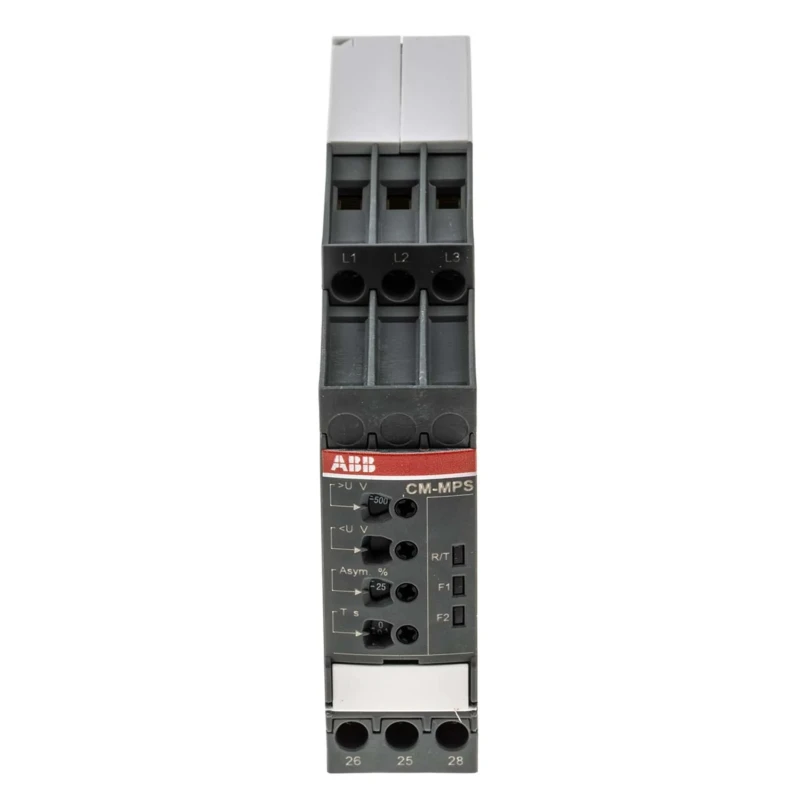

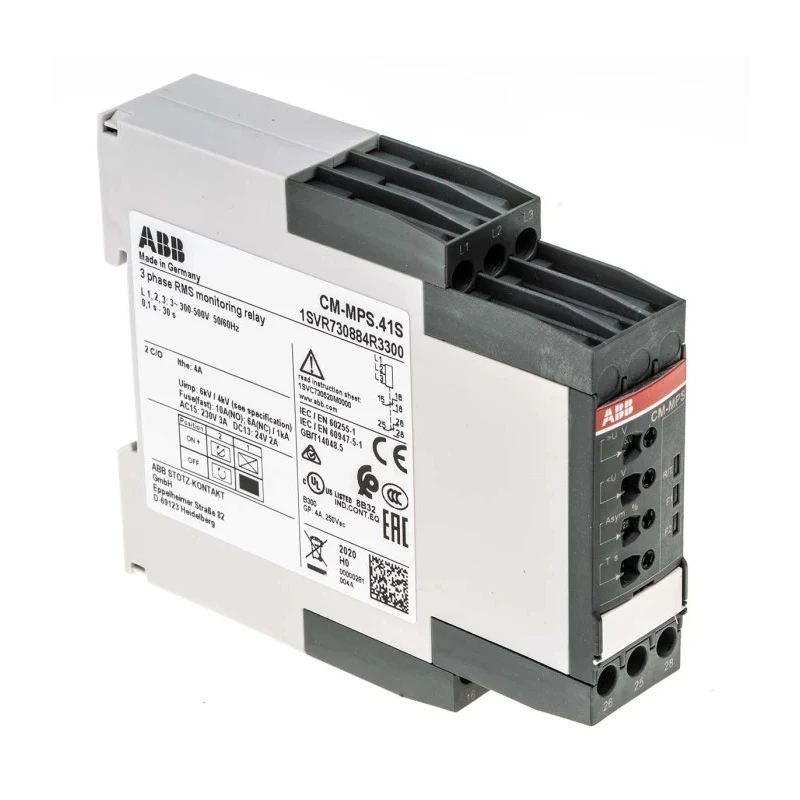

ABB Monitoring Relay 3 Phase DPDT DIN Rail, 400V AC, 18VA Power, CM-MPS Series 1SVR730884R3300 CM-MPS.41S

Free Delivery in India | Lowest Global Shipping Charges

ABB Monitoring Relay 3 Phase DPDT DIN Rail, 400V AC, 18VA Power, CM-MPS Series 1SVR730884R3300 CM-MPS.41S



Category Monitoring Relays Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Height	85.6mm
Length	103.7mm
Model	1SVR730884R3300 CM-MPS.41S
IP Rating	IP20
Width	22.5mm
Mount Type	DIN Rail
Series	CM-MPS
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-25°C
Terminal type	Screw
Electrical Phase	3
Standards/Approvals	RoHS
Switching Voltage	400V
Supply AC Voltage	400V ac

Key Features

The relay supports a wide voltage monitoring range of 300 to 500V AC.
It features a 0 to 30 second adjustable built-in time delay to filter transient faults.
Designed for DIN rail mounting with compact dimensions of 103.7 x 22.5 x 85.6 mm.
It has an electrical service life of 100,000 cycles ensuring long operational durability.
The unit operates at 18 VA power consumption with screw terminal connections.
IP20 rated enclosure provides protection against solid foreign objects.
Suitable for monitoring phase failure, under voltage and over voltage conditions.
Operating temperature range from -25°C up to 60°C.

Product Description

ABB 1SVR730884R3300 CM-MPS.41S Monitoring Relay is a high-performance 3 phase electrical protection device equipped with DPDT contact configuration and designed for DIN rail installation.

This relay operates with a supply voltage of 400V AC and power consumption of 18 VA. It monitors voltage levels between 300 and 500V AC, offering comprehensive protection against phase failure, overvoltage, and undervoltage conditions.

The relay’s compact size of 103.7 mm length, 22.5 mm width, and 85.6 mm height allows easy integration into crowded electrical cabinets. With an electrical service life rated for 100,000 cycles, it ensures reliable and long-lasting fault detection.

Its adjustable time delay from 0 to 30 seconds enables filtering of transient electrical noise, preventing nuisance trips. The relay features screw terminals for secure electrical connections and an IP20 rated enclosure for protection against solid foreign bodies.

Operating in harsh environments, it functions reliably between -25°C and 60°C. This makes it ideal for industrial applications such as food production lines, packing plants, and manufacturing facilities requiring fast reaction to electrical anomalies.

The unit is powered by the circuit it monitors and does not require an external power supply. Installation on DIN rail is quick and secure, streamlining setup tasks. The relay’s rapid circuit breaker tripping reduces risk of equipment damage and downtime.

It meets RoHS standards ensuring environmental compliance. Manufactured in Germany with high quality standards.

This ABB monitoring relay is a critical component for safeguarding sensitive industrial equipment and maintaining electrical system integrity. Explore more Monitoring Relays in the EnvMart catalog for your electrical protection needs.
