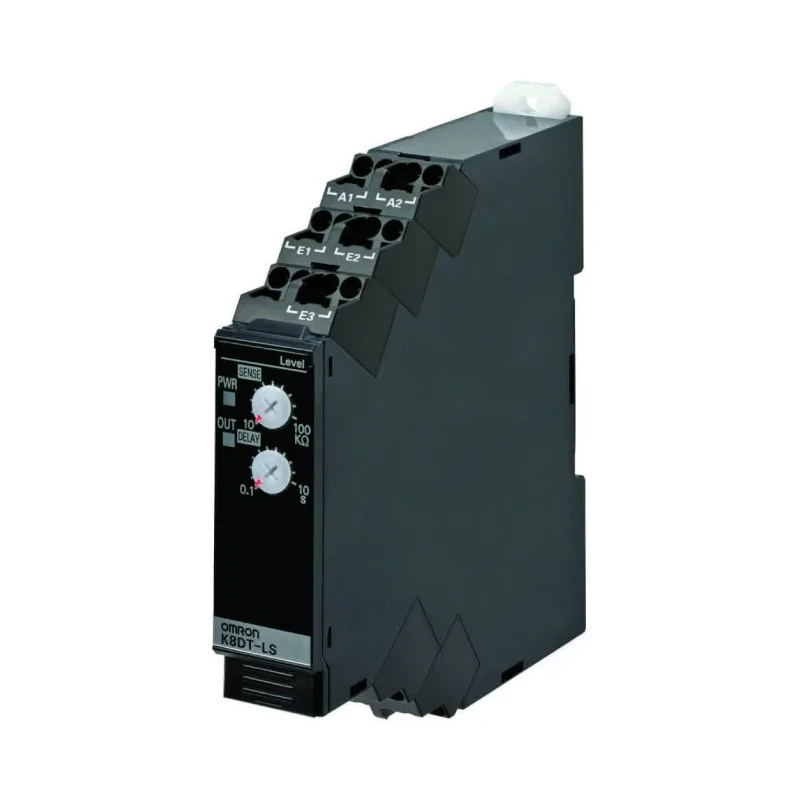

Omron Monitoring Relay 3 Phase SPST DIN Rail Mount 240V AC K8DT-LS1TA

The Omron K8DT-LS1TA is a 3 phase monitoring relay designed for protection and monitoring of industrial control panels operating at 240V AC. Featuring a single pole single throw (SPST) contact configuration, it reliably detects phase faults such as phase sequence errors and phase loss to prevent motor and equipment damage.

This device supports DIN rail mounting, enabling straightforward integration into electrical enclosures with minimal space usage due to its compact dimensions of 90mm length, 90mm height, and 17.5mm width. Push-in terminals facilitate rapid, tool-free wiring connections.

Its adjustable time delay of 0.1 to 10 seconds allows tuning response times to optimize system uptime and avoid unnecessary shutdowns caused by transient disturbances. The low power consumption of 2.5VA contributes to efficient auxiliary circuit designs.

Designed to operate in a wide ambient temperature range from -20°C to 60°C, the K8DT-LS1TA is suitable for diverse indoor industrial environments. The IP20 rated enclosure safeguards against finger access only and requires installation within enclosures to protect against dust and moisture.

The product complies with multiple international safety and EMC standards including EN 61010-1 for safety requirements and EN 61326-1 for EMC, along with other certifications like UL 61010-1 and Korean Radio Waves Act compliance, ensuring reliable and safe operation in demanding industrial applications.

Supports 3-phase electrical monitoring with SPST contact configuration for reliable control. DIN rail mountable for flexible and secure panel installation. Adjustable response time delay from 0.1 to 10 seconds reduces downtime from transient faults.

Push-in terminal design enables quick and tool-free wiring. Wide operating temperature range of -20°C to 60°C matches various industrial environments. Compact size optimizes space in electrical panels and enclosures. Low 2.5VA power consumption minimizes auxiliary power usage.

IP20 rated for protection against finger access within enclosed cabinets. Conforms to international safety and EMC standards including EN 61010-1 and EN 61326-1.

This monitoring relay is ideal for motor starter protection, phase loss detection, and phase sequence verification in manufacturing, automation, water treatment, HVAC systems, and other commercial and industrial settings. Its robust features ensure equipment safety while maximizing operational efficiency. Browse more Omron relays and contactors on EnvMart for comprehensive industrial automation solutions.
