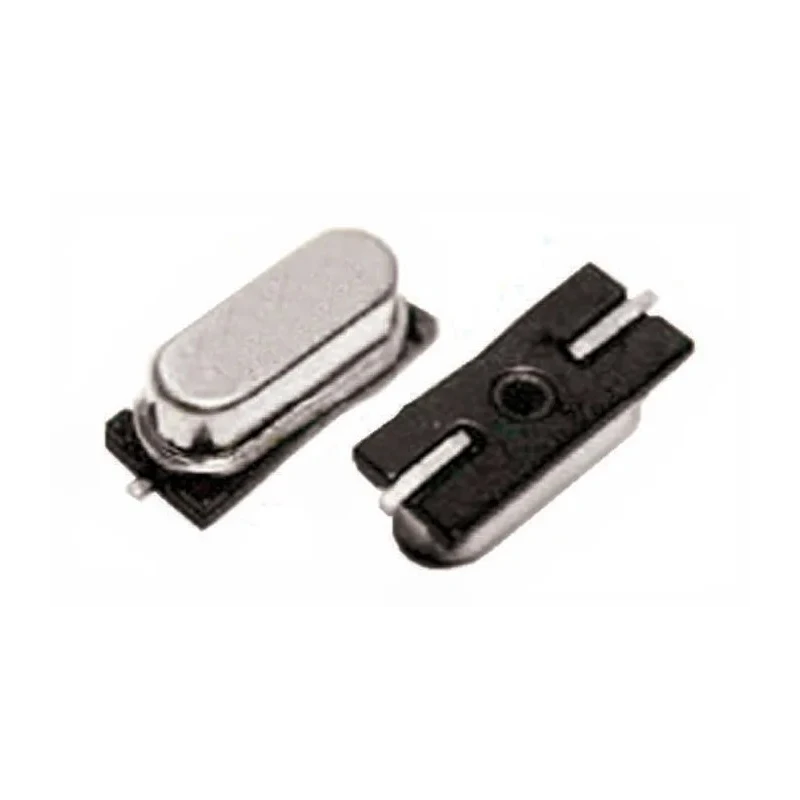

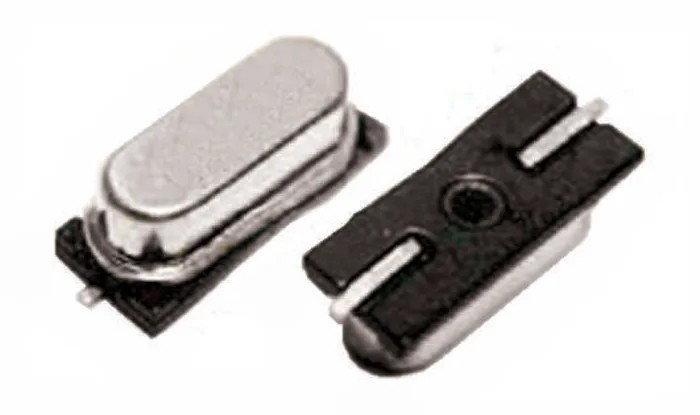

Euroquartz 10 MHz Crystal ±30 ppm Surface Mount 2-Pin 4.2 mm Height 12.4 mm Length 10.000MHz 49USMX/30/50/-40+85/18pF/ATF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Euroquartz |
| Height | 4.2mm |
| Length | 12.4mm |
| Model | 10.000MHz 49USMX/30/50/-40+85/18pF/ATF |
| Packaging | Tape & Reel |
| Width | 4.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 10MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Standard frequency of 10 MHz ensures precise signal timing.
- Surface mount package with 2 pins suitable for SMT applications.
- Load capacitance rated at 18 pF for accurate oscillation control.
- Operates reliably between -40°C and 85°C temperature range.
- Series resistance of 50 Ω minimizes energy loss in circuits.
- RoHS compliant, ensuring environmental safety.
- Packaged in tape and reel format for ease of automated handling.
Product Description
Euroquartz 10.000MHz 49USMX/30/50/-40+85/18pF/ATF Crystal Unit is a high precision 10 MHz frequency crystal designed for surface mount electronic applications. Featuring a 2-pin surface mount package, this crystal ensures compact integration on printed circuit boards while providing stable oscillation with a frequency tolerance of ±30 ppm.

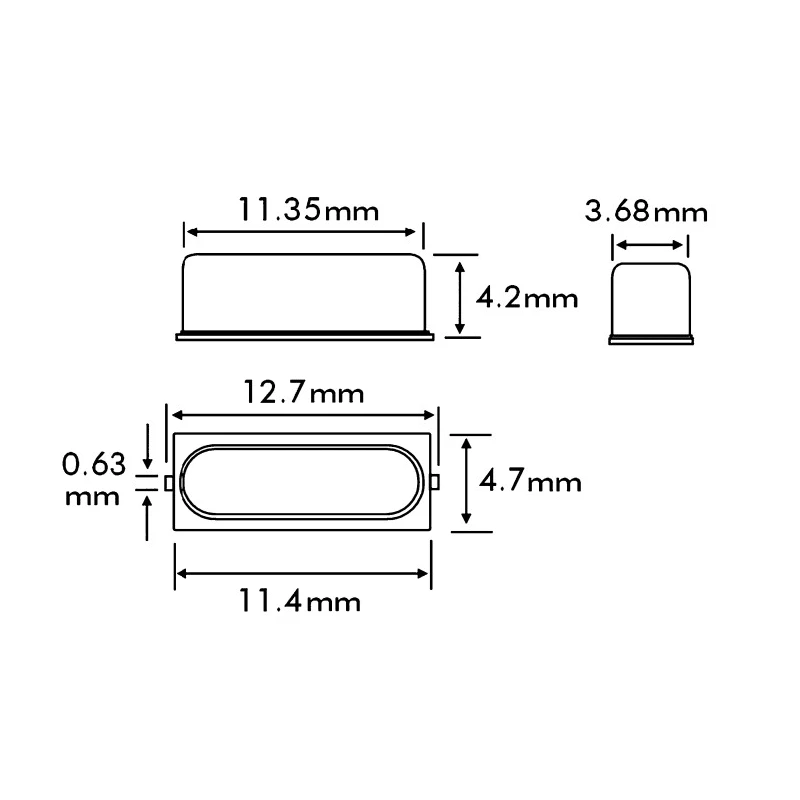

The device is engineered for a load capacitance of 18 pF and has a series resistance of 50 Ω, making it suitable for various timing applications in industrial and commercial electronics. The robust metal case measures 12.4 mm in length, 4.5 mm in width, and 4.2 mm in height, ideal for surface mounting processes.
It offers reliable performance across an operating temperature range from -40°C to 85°C and maintains frequency stability within ±50 ppm, supporting demanding conditions in industrial, telecommunications, and consumer electronics environments. The crystal is RoHS compliant, meeting environmental regulatory standards.
Supplied on tape and reel packaging, it supports automated pick-and-place assembly, improving production efficiency in manufacturing lines. This product is made in China and is an essential component for applications requiring accurate timing and frequency control such as oscillators, microcontrollers, and communication devices.
Standard frequency of 10 MHz ensures precise signal timing. Surface mount package with 2 pins suitable for SMT applications. Load capacitance rated at 18 pF for accurate oscillation control. Compact dimensions: 12.4 mm length, 4.5 mm width, and 4.2 mm height.
Operates reliably between -40°C and 85°C temperature range. Frequency stability of ±50 ppm to maintain signal integrity. Series resistance of 50 Ω minimizes energy loss in circuits. RoHS compliant, ensuring environmental safety.
Packaged in tape and reel format for ease of automated handling.
Explore the comprehensive range of Crystal Units and oscillators at EnvMart for your precise electronics applications and discover products that meet your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 10 MHz, ensuring precise signal timing for various applications.
This model has dimensions of 12.4 mm in length, 4.5 mm in width, and 4.2 mm in height, making it suitable for compact integration on printed circuit boards.
The load capacitance is rated at 18 pF, which is essential for accurate oscillation control in electronic circuits.
It operates reliably within a temperature range of -40°C to 85°C, suitable for demanding industrial and commercial environments.
The series resistance is 50 Ω, which helps minimize energy loss in circuits.
It is packaged in tape and reel format, facilitating ease of automated handling during assembly processes.
This product is RoHS compliant, ensuring it meets environmental regulatory standards.
This model features a 2-pin surface mount package, suitable for SMT applications.
The frequency stability is ±50 ppm, which helps maintain signal integrity across various applications.
It is suitable for applications requiring accurate timing and frequency control, such as oscillators and microcontrollers.
The country of origin for this crystal unit is China.
This crystal unit uses a surface mount type, making it ideal for compact electronic designs.
