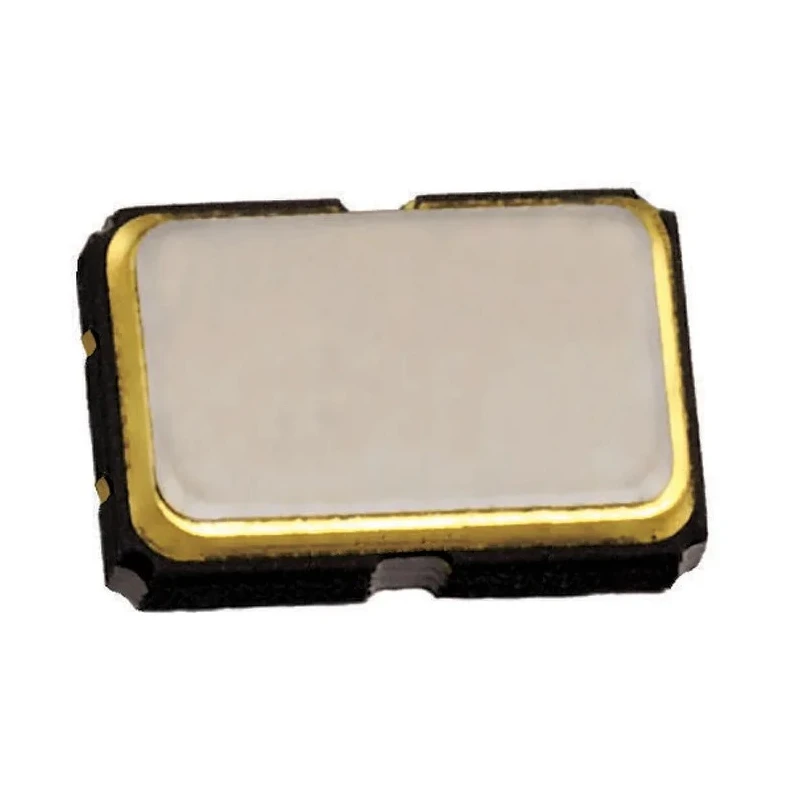

Euroquartz 11.0592 MHz Crystal ±30 ppm Surface Mount 4-Pin 7 mm x 5 mm x 1.2 mm 12 pF 50Ω 11.0592MHz MQ/30/30/-40+85/12pF
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Euroquartz |
| Height | 1.2mm |
| Length | 7mm |
| Model | 11.0592MHz MQ/30/30/-40+85/12pF |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| Pin Count | 4 |
| Standard Frequency | 11.0592MHz |
| Load Capacitance | 12pF |
| Series Resistance | 50Ω |
Key Features
- Standard frequency of 11.0592 MHz suitable for timing applications.

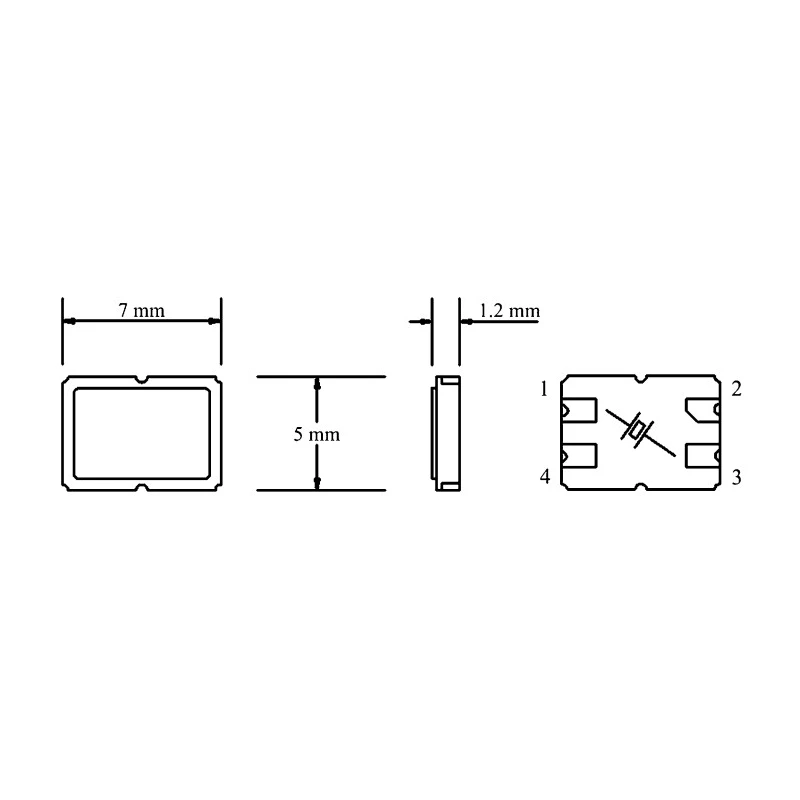

- Surface mount package measuring 7 mm length, 5 mm width, and 1.2 mm height.
- Load capacitance of 12 pF for stable oscillation.
- Series resistance of 50 ohms ensuring signal integrity.
- Operating temperature range from -40°C to 85°C for reliable performance.
- RoHS compliant, conforming to environmental regulations.
- Packaged in tape and reel format for automated assembly.
- Manufactured in Taiwan with robust ceramic case design.
Product Description
Euroquartz 11.0592MHz MQ/30/30/-40+85/12pF Crystal is a precision surface mount 4-pin crystal oscillator designed to provide highly stable frequency output at 11.0592 MHz with ±30 ppm frequency tolerance and stability. It features a compact package size of 7 mm length, 5 mm width, and 1.2 mm height, making it suitable for space-constrained electronic circuits requiring accurate timing signals.
This crystal unit is designed for surface mount technology (SMT) applications and is supplied in tape and reel packaging to facilitate automated manufacturing processes. Its load capacitance of 12 pF is optimized to maintain stability and signal integrity, complemented by a series resistance of 50 ohms which ensures minimal signal loss.
The operating temperature range spans from -40°C to 85°C, enabling confident use in diverse industrial, commercial, and consumer electronic products, including communications, computing, and measurement devices.
Euroquartz MQ crystals utilize a durable ceramic case, ensuring longevity and protection against mechanical and environmental stress. This particular crystal is RoHS compliant, assuring adherence to strict environmental and safety standards.
The product is manufactured in Taiwan, Province of China, a trusted origin for quality electronic components. Standard frequency 11.0592 MHz for precise timing requirements. Surface mount 4-pin configuration for easy integration.
Tape and reel packaging suited for mass automatic assembly. Operating temperature from -40°C to 85°C suitable for harsh environments. Compliant with RoHS environmental standards. Series resistance of 50Ω optimized for signal quality.
Compact dimensions of 7 mm x 5 mm x 1.2 mm for space saving designs.
This crystal is ideal for use in industrial automation, telecommunications, instrumentation, consumer electronics, and other precision frequency applications. Explore more from Euroquartz crystals and oscillators in the Electronics Components category of EnvMart for comprehensive timing solutions.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal oscillator is 11.0592 MHz, suitable for timing applications.
This model has dimensions of 7 mm in length, 5 mm in width, and 1.2 mm in height.
The load capacitance of this crystal is 12 pF, which helps maintain stability during operation.
The series resistance is 50 ohms, ensuring signal integrity and minimal signal loss.
The operating temperature range for this crystal is from -40°C to 85°C, making it suitable for various environments.
It is packaged in tape and reel format, which is ideal for automated assembly processes.
This model supports surface mount technology (SMT) for easy integration into electronic circuits.
This crystal is manufactured in Taiwan, which is known for producing quality electronic components.
Yes, this crystal is RoHS compliant, adhering to environmental regulations.
It is suitable for applications in industrial automation, telecommunications, instrumentation, and consumer electronics requiring precise timing.
This model has a pin count of 4, allowing for straightforward connections in electronic designs.
The model number of this crystal is 11.0592MHz MQ/30/30/-40+85/12pF, indicating its specific characteristics and specifications.
