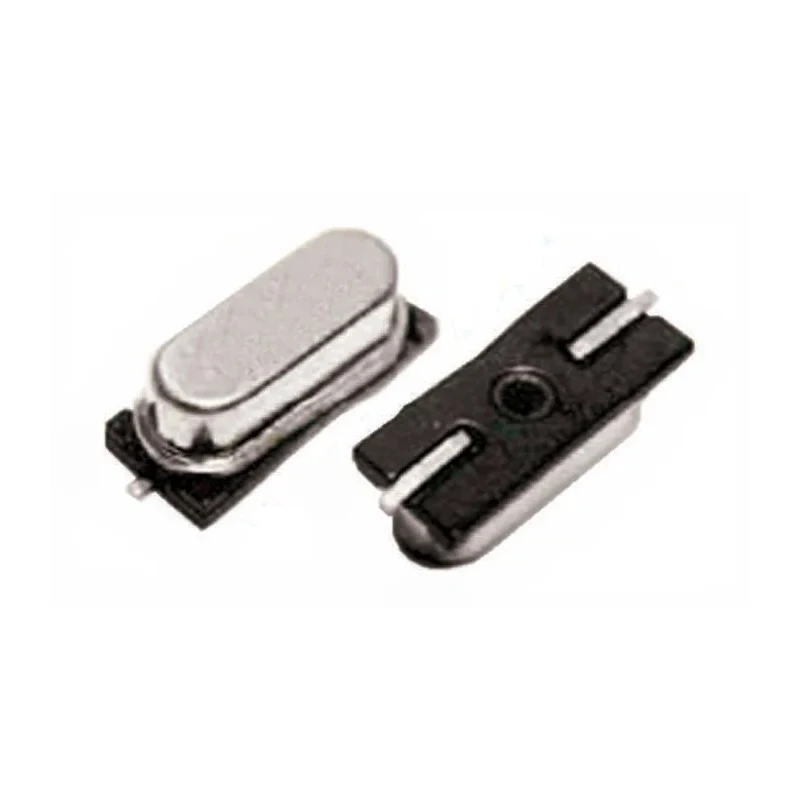

Euroquartz 12 MHz Crystal ±30 ppm Surface Mount 2-Pin 4.2 mm Height 12.4 mm Length 12.000MHz 49USMX/30/50/-40+85/18pF/ATF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Euroquartz |
| Height | 4.2mm |
| Length | 12.4mm |
| Model | 12.000MHz 49USMX/30/50/-40+85/18pF/ATF |
| Packaging | Tape & Reel |
| Width | 4.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| Pin Count | 2 |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Standard frequency is 12 MHz providing stable oscillation.
- Surface mount type with 2 pins for easy PCB integration.
- Load capacitance of 18 pF for oscillator circuit matching.

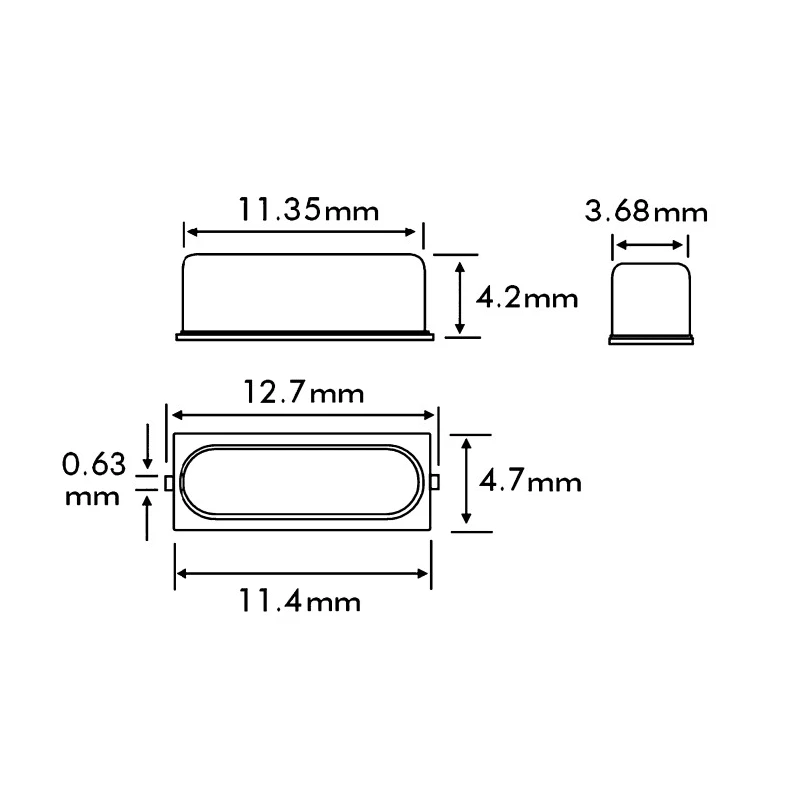

- Physical dimensions include 12.4 mm length, 4.5 mm width, and 4.2 mm height.
- Operating temperature range from -40°C to +85°C ensures reliable performance.
- RoHS compliant and manufactured in China.
- 50 ohm series resistance compatible with various electronic applications.
- Packaged in tape and reel format for efficient automated assembly.
Product Description
Euroquartz 12.000MHz 49USMX/30/50/-40+85/18pF/ATF crystal is a high-precision surface mount crystal device designed for stable frequency generation in electronic circuits. Featuring a standard frequency of 12 MHz with a tight frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, it is engineered for industrial, communication, and consumer electronic applications.
The crystal is mounted on a surface mount package with two pins for easy integration on printed circuit boards (PCBs). The compact physical size measures 12.4 mm in length, 4.5 mm in width, and 4.2 mm in height, making it suitable for high-density electronic assemblies.
It operates reliably across a wide temperature range from -40°C up to 85°C, ensuring stable performance in harsh environmental conditions. The device has a load capacitance of 18 pF and series resistance of 50Ω, matching common oscillator circuit requirements.
This RoHS compliant crystal unit is supplied in tape and reel packaging, supporting automated surface mount technology (SMT) production lines. Its precise frequency attributes make it a preferred choice in industrial electronics, telecommunications equipment, instrumentation, and timing devices.
Standard frequency of 12 MHz with ±30 ppm tolerance. Surface mount package with 2 pins for PCB mounting. 18 pF load capacitance for circuit compatibility. Compact size: 12.4 mm length, 4.5 mm width, 4.2 mm height. Operating temperature range from -40°C to +85°C.
50 ohm series resistance for stable oscillation. RoHS compliant and environmentally friendly. Packaged in tape and reel for SMT assembly. Suitable for telecommunications, industrial, and consumer electronics. Manufactured in China with high quality standards.
Explore the full range of crystal units at EnvMart to meet diverse electronic design and manufacturing needs.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 12 MHz, providing stable oscillation for various electronic applications.
This crystal has a length of 12.4 mm, a width of 4.5 mm, and a height of 4.2 mm, making it compact for high-density electronic assemblies.
The load capacitance of this unit is 18 pF, which is essential for matching oscillator circuit requirements.
It operates reliably within a temperature range of -40°C to +85°C, ensuring stable performance in various environmental conditions.
The crystal is packaged in tape and reel format, which supports efficient automated assembly in surface mount technology (SMT) production lines.
This model features a series resistance of 50Ω, which is compatible with various electronic applications.
Yes, this crystal is RoHS compliant, meeting environmental standards for hazardous substances.
The crystal has 2 pins, designed for easy integration onto printed circuit boards (PCBs).
This model is a surface mount type, allowing for straightforward installation on PCBs.
It is suitable for industrial, communication, and consumer electronic applications, providing stable frequency generation.
The frequency tolerance of this unit is ±30 ppm, ensuring precise frequency generation for various uses.
This crystal is manufactured in China, adhering to high quality standards.
