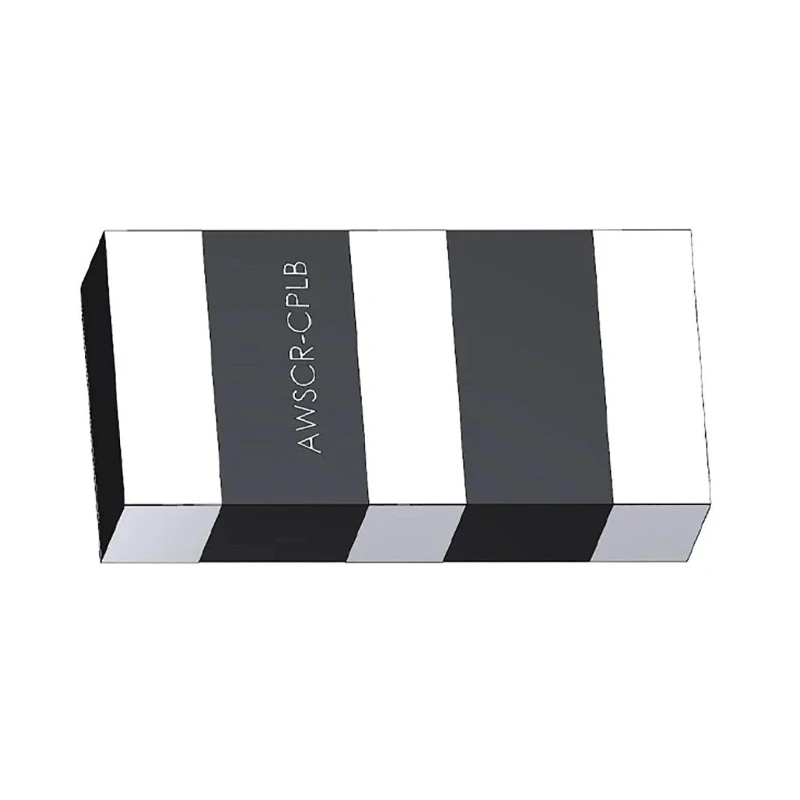

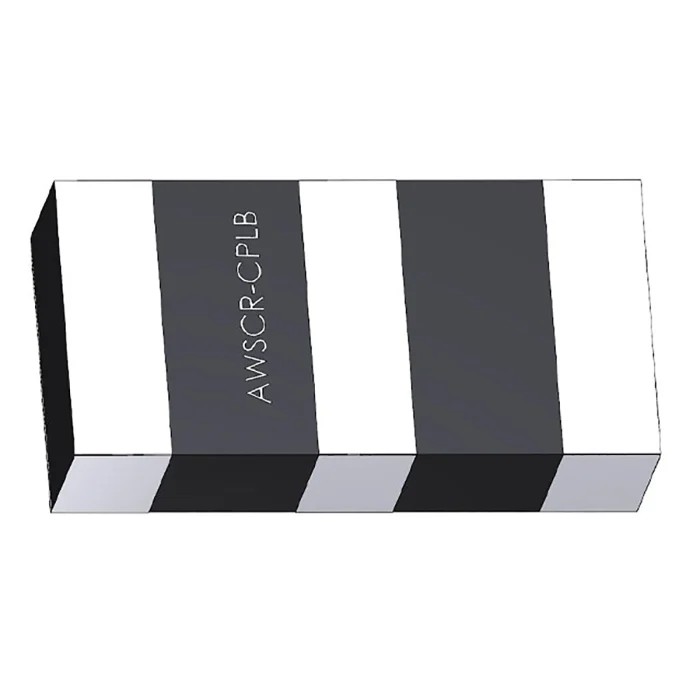

Abracon Ceramic Resonator 2.45 MHz 30 pF 3-Pin Tape & Reel Surface Mount AWSCR-2.45CPLB-C30-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.8mm |
| Length | 6mm |
| Model | AWSCR-2.45CPLB-C30-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 30pF |
| Resonance Frequency | 2.45MHz |
| Resonance Resistance | 100Ω |
Key Features
- Designed for precision frequency control in electronics applications.
- Operates at a resonance frequency of 2.45 MHz to ensure stable oscillation.
- 30 pF load capacitance enables reliable signal performance.
- Surface mount form factor with tape & reel packaging for automated assembly.
- Three-pin configuration suitable for circuit integration.
- Wide operating temperature range from -40°C to 125°C.
- RoHS compliant for environmentally responsible manufacturing.
- Industry standard footprint provides compatibility with popular PCB layouts.
Product Description
The Abracon AWSCR-2.45CPLB-C30-T4 is a ceramic resonator engineered for stable frequency generation in demanding electronic designs. Featuring a resonance frequency of 2.45 MHz and a load capacitance of 30 pF, this resonator delivers precise timing for microprocessor, metering, and industrial control applications.
With its surface mount construction and tape & reel packaging, the device is well-suited for automated PCB assembly processes, facilitating efficient mass production. The 3-pin configuration simplifies circuit integration, while the compact form factor - length 6 mm, width 3 mm, height 1.8 mm - fits easily into modern electronics layouts.
The resonator operates reliably across a broad temperature range from -40°C to 125°C, making it suitable for applications exposed to varying environmental conditions. It maintains low resonance impedance and boasts built-in capacitance options for improved signal stability. RoHS compliance ensures adherence to strict environmental and safety standards.
Typical use cases include metering systems, remote control devices, microprocessor interfacing, industrial control systems, and electric appliances. The AWSCR-CPLB series is favored for its industry-standard footprint, facilitating replacements or upgrades in existing designs without extensive redesigns.
Whether used in industrial, laboratory, or commercial electronics, the Abracon AWSCR-2.45CPLB-C30-T4 offers robust performance and high reliability. Explore more ceramic resonators and precise frequency solutions from Abracon in EnvMart’s Electronics Components category.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 2.45 MHz, ensuring stable oscillation for various electronic applications.
It has a load capacitance of 30 pF, which contributes to reliable signal performance in electronic circuits.
The dimensions are 6 mm in length, 3 mm in width, and 1.8 mm in height, making it suitable for compact electronic designs.
This model operates within a temperature range of -40°C to 125°C, accommodating various environmental conditions.
It is packaged in tape and reel format, which facilitates automated assembly in PCB manufacturing processes.
This unit features a surface mount design, allowing for easy integration into modern electronic circuits.
The resonator has a pin count of 3, which simplifies circuit integration.
Yes, it is RoHS compliant, ensuring it meets environmental and safety standards.
The resonance resistance is 100Ω, which is important for maintaining signal integrity.
Typical applications include metering systems, remote control devices, and industrial control systems, among others.
The termination type for this model is solder, which is standard for surface mount components.
This resonator belongs to the AWSCR-CPLB series, which is recognized for its industry-standard footprint.
