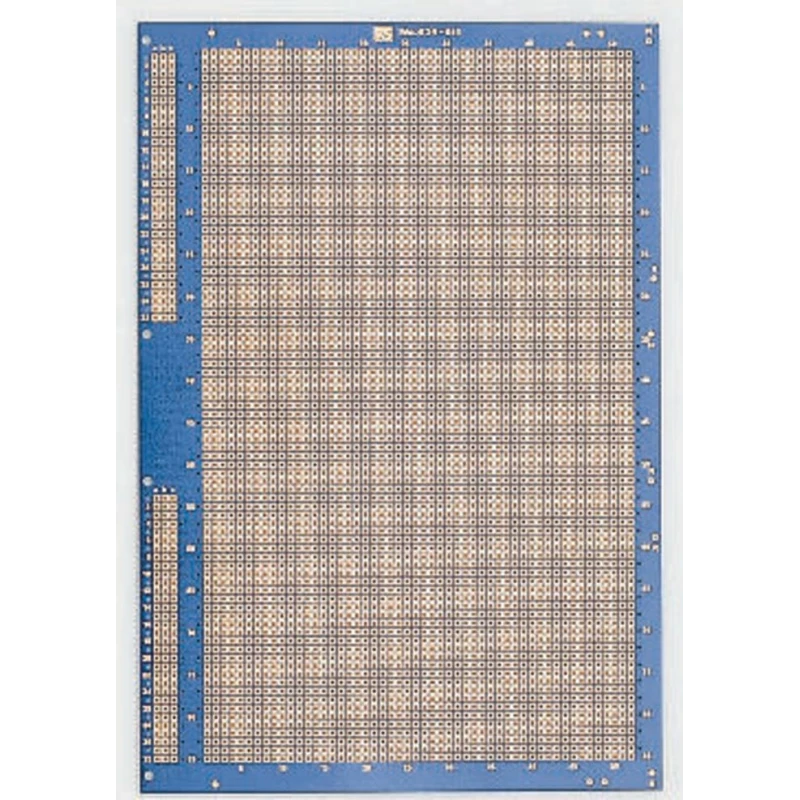

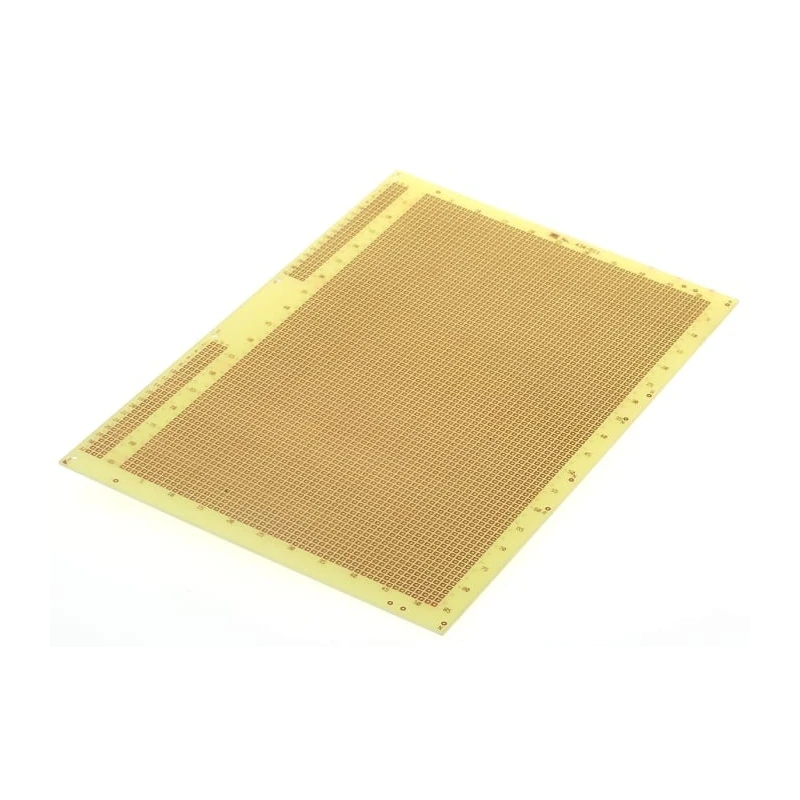

Vero Technologies Single Sided Epoxy Glass Fabric Laminate Matrix Board FR4 1.6mm Thick with 52 x 85 1.02mm Holes 03-0111

Free Delivery in India | Lowest Global Shipping Charges

Vero Technologies Single Sided Epoxy Glass Fabric Laminate Matrix Board FR4 1.6mm Thick with 52 x 85 1.02mm Holes 03-0111

Name: Vero Technologies Single Sided Epoxy Glass Fabric Laminate Matrix Board FR4 1.6mm Thick with 52 x 85 1.02mm Holes 03-0111
Brand: Vero Technologies
SKU: 137467
Price: 104.12 USD
Availability: InStock



Category Matrix Board Brand Vero Technologies Condition New

Specifications

Country of Origin	United Kingdom
Brand	Vero Technologies
Length	233.4mm
Model	03-0111
Width	160mm
Hole Diameter	1.02mm
Board Material	Epoxy Glass Fabric Laminate
Standards/Approvals	BS 4584 part 16
Number of Sides	1
Board Thickness	1.6mm
FR Material Grade	FR4
Hole Layout	52 x 85
Copper Thickness	35μm
RS PRO 1 Matrix Board FR4 1.02 mm Holes, 220 mm 100mmBrand	RS PRO

Key Features

Constructed from high quality FR4 epoxy glass fabric laminate for durability.
Single sided design with copper thickness of 35μm for effective conductivity.
Features 52 by 85 layout of 1.02mm diameter holes on a 2.54mm pitch.
Complies with BS 4584 part 16 standard for matrix boards.
Ideal for prototyping and wire-wrapping electronic circuits.
Board dimensions are 233.4mm length and 160mm width.
Hole pitch maintained at 2.54mm (0.1 inch) to fit standard components.
Manufactured in the United Kingdom ensuring quality standards.

Product Description

Vero Technologies 03-0111 matrix board is a single sided prototyping board constructed from FR4 epoxy glass fabric laminate material, ensuring high durability and electrical insulation. Measuring 233.4mm in length and 160mm in width with a 1.6mm thick board, this matrix board features precisely drilled 1.02mm diameter holes arranged in a 52 x 85 layout with a hole pitch of 2.54mm (0.1 inch). It has a copper thickness of 35μm for effective conduction and is compliant with BS 4584 part 16 standard specifications for matrix boards.

This product is specifically designed for wire-wrapping applications and electronic prototyping, providing a reliable platform for circuit assembly and experimental setups. The epoxy glass fabric laminate (CEM 3) construction offers mechanical strength and stability under working conditions. Manufactured in the United Kingdom, it meets rigorous quality standards to suit industrial, laboratory, and educational use.

The single sided layout allows for ease of component placement and soldering, making it suitable for rapid development and testing of electronic circuits. The standard hole pitch supports a wide range of electronic components and connectors, facilitating versatile applications in electronics development and repair.

Key applications include use in electronics prototyping labs, research and development departments, educational institutions, and small-scale manufacturing setups that require reliable and consistent matrix boards for circuit design and assembly.

Constructed from FR4 epoxy glass fabric laminate material for durability and insulation. Single sided copper clad board with 35μm copper thickness. Features 52 x 85 hole layout spaced at 2.54mm pitch. Hole diameter is 1.02mm suitable for wire wrapping and component leads.

Board thickness of 1.6mm provides sturdy mechanical support. Complies with BS 4584 part 16 matrix board standards. Dimensions are 233.4mm length by 160mm width. Manufactured in the United Kingdom ensuring top quality. Explore more Matrix Boards and prototyping solutions in the Electronics Components category on EnvMart.
