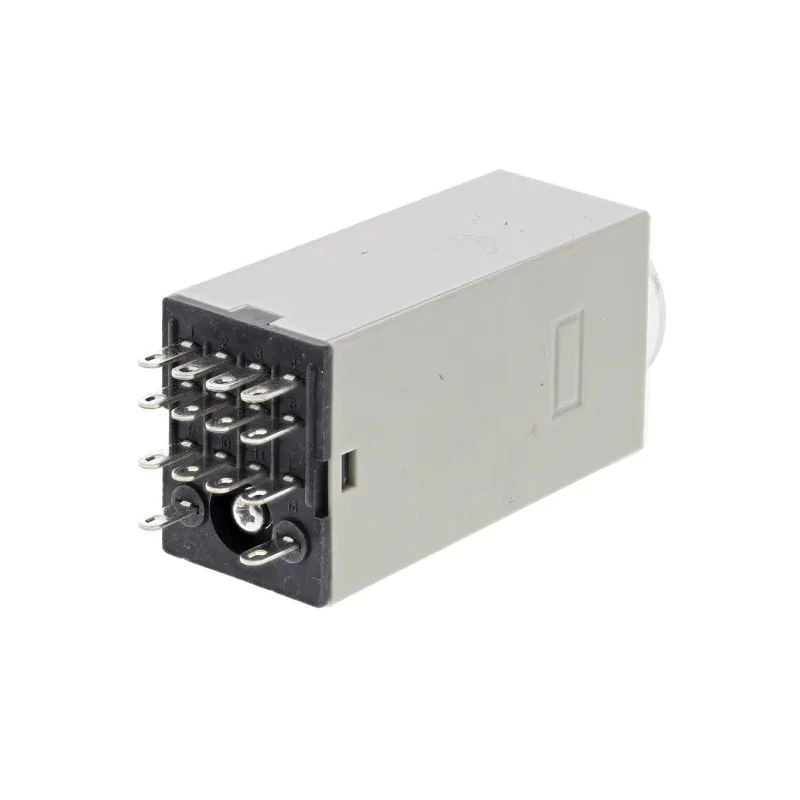

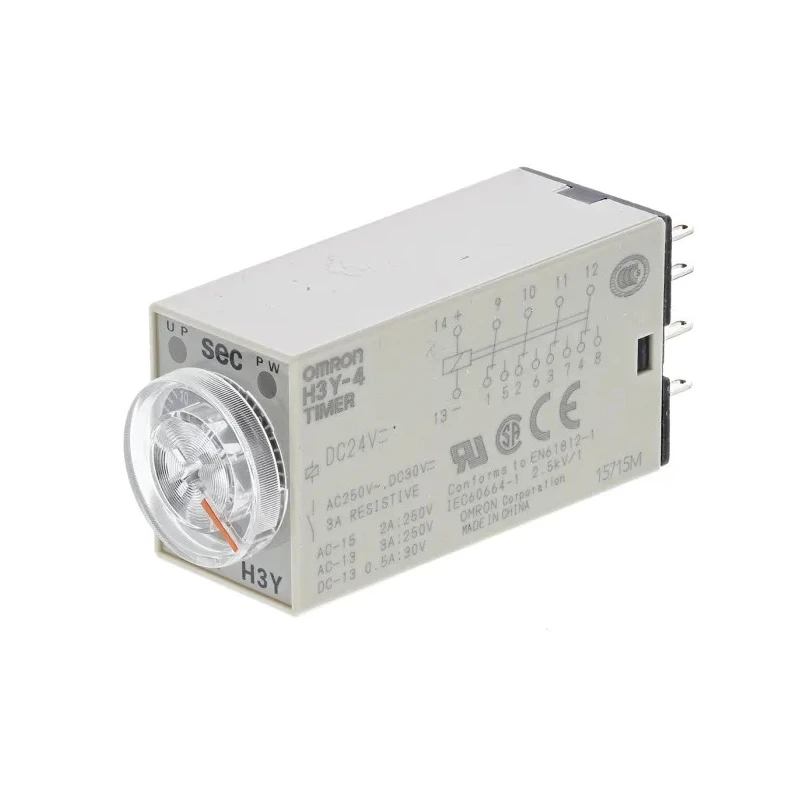

Omron H3Y-4 Series DIN Rail Surface Mount Timer Relay 24 V dc/ac 1 to 30 Seconds ON Delay 4PDT Switch H3Y-4 DC24 30S

Free Delivery in India | Lowest Global Shipping Charges

Omron H3Y-4 Series DIN Rail Surface Mount Timer Relay 24 V dc/ac 1 to 30 Seconds ON Delay 4PDT Switch H3Y-4 DC24 30S

Name: Omron H3Y-4 Series DIN Rail Surface Mount Timer Relay 24 V dc/ac 1 to 30 Seconds ON Delay 4PDT Switch H3Y-4 DC24 30S
Brand: Omron
SKU: 156568
Price: 107.2 USD
Availability: InStock



Category Timer Relays Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	63mm
Function	Timer
Length	28mm
Model	H3Y-4 DC24 30S
IP Rating	IP40
Mode	ON Delay
Width	21.5mm
Mount Type	DIN Rail, Surface Mount
Series	H3Y-4
Maximum Operating Temperature	50°C
Contact Configuration	4PDT
Minimum Operating Temperature	-10°C
Time Range	1 to 30 s
Terminal type	Plug-In
Standards/Approvals	EN50082-2, EN50081-2, CSA (File No. LR22310), UL (File No. E41515)
Number of Contacts	4
Number of Timer Functions	1
Switching Voltage	250V ac
Contact Current	5A
Supply DC Voltage	24 V dc
Timing Adjustment	Knob
Supply AC Voltage	24V ac
Omron Plug In Timer Relay, 24V dc, 4-Contact, 30s, 1-Function, 4PDTBrand	Omron

Key Features

Operates reliably with 24 V DC and 24 V AC supply voltage.
Features a 4-contact, 1-function timer relay for versatile industrial applications.
Supports a switching voltage up to 250V AC and a contact current of 5A.
Designed for DIN rail and surface mounting with plug-in terminals.
Equipped with a large transparent knob for easy timing adjustments.
Includes LED indicators for clear power and output status signals.
IP40 rated for protection against solid objects greater than 1 mm.
Operates effectively within a temperature range of -10°C to 50°C.

Product Description

Omron H3Y-4 DC24 30S Timer Relay is a precision ON delay timer relay designed for reliable automation control in industrial, HVAC, and electrical panel applications. Its 4PDT switch configuration and 4 contacts allow versatile connection options while supporting a supply voltage of 24 V DC and 24 V AC. The relay provides accurate timing within a range of 1 to 30 seconds, ensuring dependable operation in sequential timing controls and machinery automation.

The device’s compact build with dimensions 21.5 mm wide, 63 mm high, and 28 mm long enables easy integration into DIN rail and surface-mounted electrical panels. It features a user-friendly transparent knob for quick and precise time setting adjustments, complemented by LED indicators that clearly signal power and output status for operational monitoring.

Designed for industrial robustness, the H3Y-4 timer relay handles switching voltages up to 250V AC and a maximum contact current of 5A. It operates efficiently in ambient temperatures ranging from -10°C to 50°C with an IP40 protection rating. Installation is simplified by its plug-in terminal type, compatible with MY power relays.

Operates reliably with 24 V DC and 24 V AC supply voltage. Accurate timing control from 1 to 30 seconds with high repeat accuracy. Compact dimensions allow easy DIN rail or surface mounting installation. Large transparent knob enables simple and precise timing adjustment.

LED indicators provide clear visibility of power and relay output state. Supports switching voltage up to 250V AC and contact current up to 5A. Durable IP40 rating suitable for diverse industrial environments. Complies with EN50082-2, EN50081-2, CSA (LR22310), and UL (E41515) standards.

Ideal for machinery control, HVAC systems, sequential timers, and industrial automation.

This timer relay is ideal for precise timing applications in electrical panels requiring dependable ON delay function. It is suitable for industrial, manufacturing, HVAC, and process automation environments, delivering reliable performance and easy installation.
