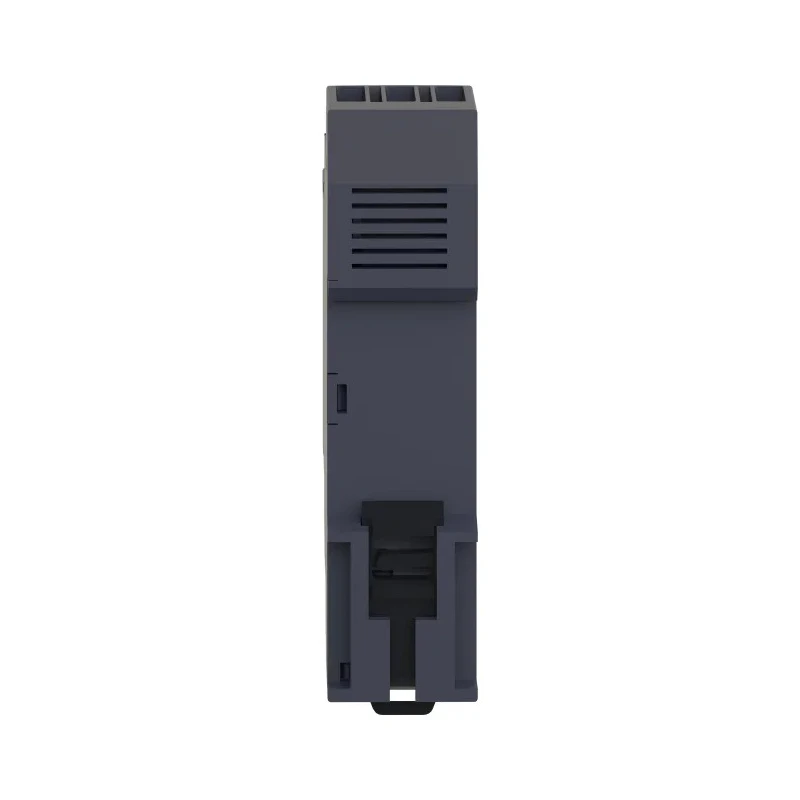

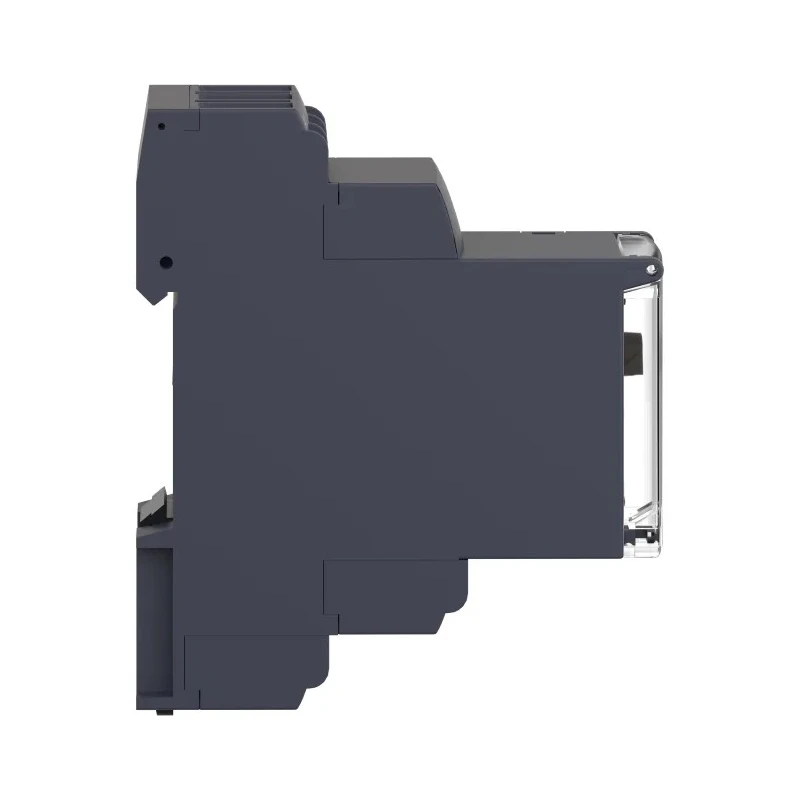

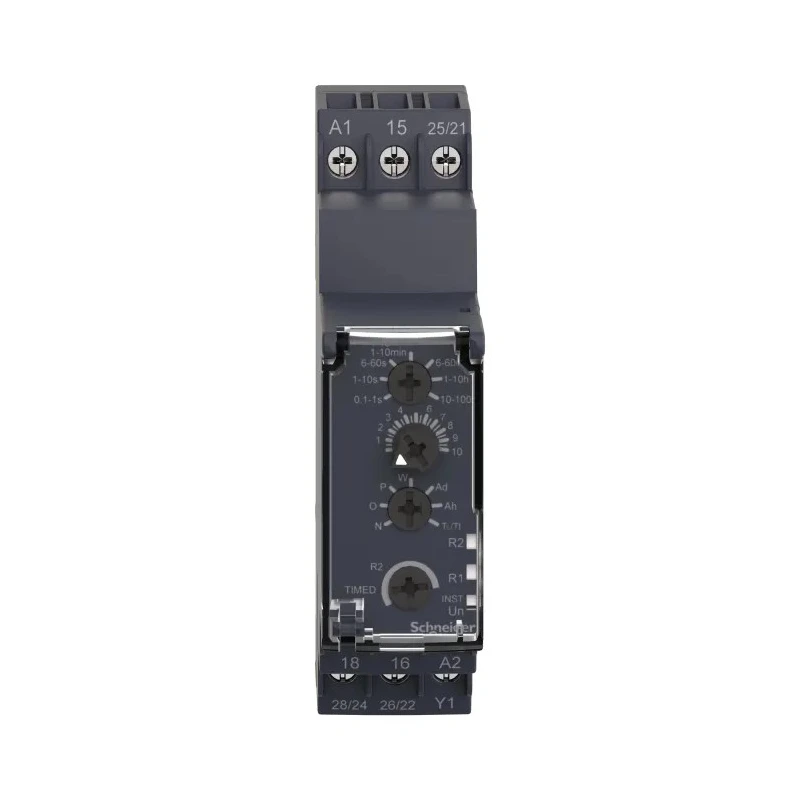

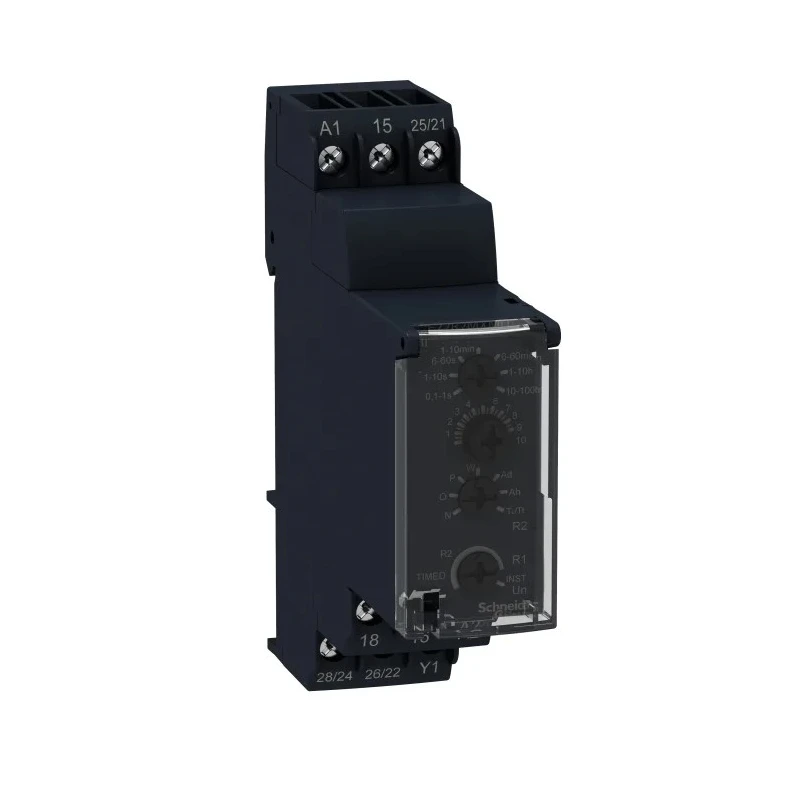

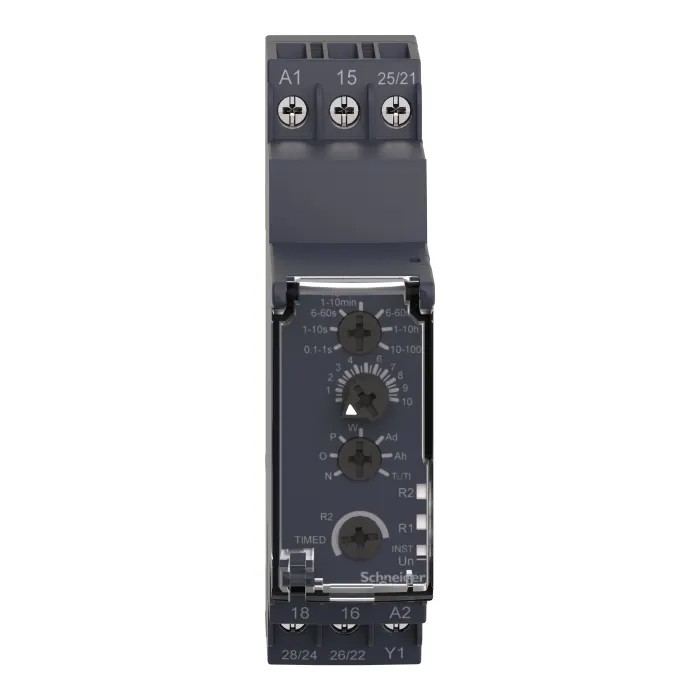

Schneider Electric Harmony Time Series Multifunction DIN Rail Timer Relay, 4-Contact, 24 to 240 V dc/ac, 0.1 s to RE22R2MXMU
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Multifunction |
| Length | 22.9mm |
| Model | RE22R2MXMU |
| IP Rating | IP40, IP50, IP20 |
| Mode | Star-Delta |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | Harmony Time |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.1 s to 100 h |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Number of Contacts | 4 |
| Number of Timer Functions | Multifunction |
| Contact Current | 8A |
| Supply DC Voltage | 24 to 240 V dc |
| Supply AC Voltage | 24, 240V ac |
Key Features
- This multifunction timer relay mounts easily on DIN rails for compact industrial setups.
- Features 4 contacts with DPDT configuration for versatile switching.
- Supports supply voltage from 24 to 240 V dc and 24, 240 V ac for broad compatibility.
- Time range adjustable between 0.1 seconds to 100 hours for diverse timing requirements.
- Equipped with screw terminal type to ensure secure, reliable connections.
- Operates in temperatures from -20°C up to 60°C for robust industrial use.
- Offers protection ratings IP40 housing, IP50 front panel, and IP20 terminal block conforming to IEC standards.
- Includes diagnostic button, external potentiometer, and rotary knob for quick setup and operation.
Product Description
Schneider Electric RE22R2MXMU Harmony Time Series multifunction DIN Rail timer relay is designed for precise timing control in industrial automation and electrical systems. This multifunction timer relay offers a flexible timing range from 0.1 seconds to 100 hours and supports supply voltages from 24 to 240 V dc and ac.
Its compact design allows effortless mounting on DIN rails, suitable for small panel or sub-panel applications. The relay has 4 contacts arranged in a DPDT configuration, enabling it to switch multiple loads or functions instantaneously.
The timer relay features a durable screw terminal connection type, ensuring secure and lasting wiring. It withstands operating temperatures from -20°C to 60°C and offers protection ratings with an IP40 housing, IP50 front panel, and IP20 terminal block, complying with international IEC standards.
Setup and diagnostics are simplified through the inclusion of an external potentiometer, rotary knob, and diagnostic button for rapid adjustments. The relay is shock and vibration resistant, suitable for demanding industrial environments.
Applications include controlling lighting circuits, motor start sequences, safety controls, conveyor belts, door locks, roller shutters, pumping and irrigation systems, and HVAC equipment. It supports both relay and solid-state outputs depending on configurations used in industrial automation systems.
This device offers multiple timing functions within one compact module. Designed for high-performance, quick setup, and flexibility in various industrial applications. RoHS compliant and manufactured to meet electrical safety and quality standards.
Constructed in Indonesia under Schneider Electric's Harmony Time series. Ideal for engineers and technicians requiring reliable, multifunctional time delay relays for automated processes and control panels. Explore related Timer Relays and components within the EnvMart catalog for tailored industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has a time range adjustable from 0.1 seconds to 100 hours, allowing for diverse timing requirements in industrial applications.
It supports a supply voltage range of 24 to 240 V dc and 24, 240 V ac, making it compatible with various electrical systems.
This model features 4 contacts arranged in a DPDT (Double Pole Double Throw) configuration, enabling versatile switching capabilities.
The timer relay operates effectively in temperatures ranging from -20°C to 60°C, suitable for robust industrial use.
It is designed for DIN rail mounting, facilitating easy installation in compact industrial setups.
The timer relay is equipped with screw terminal connections, ensuring secure and reliable wiring.
It features IP40 housing, IP50 front panel, and IP20 terminal block protection ratings, complying with IEC standards.
Yes, it includes a diagnostic button, external potentiometer, and rotary knob for quick setup and operation.
This model is manufactured in Indonesia, under Schneider Electric's Harmony Time series.
The contact current rating for this model is 8A, suitable for various applications.
It is RoHS compliant, ensuring adherence to environmental and safety standards.
It is suitable for applications such as controlling lighting circuits, motor start sequences, safety controls, and HVAC equipment.
