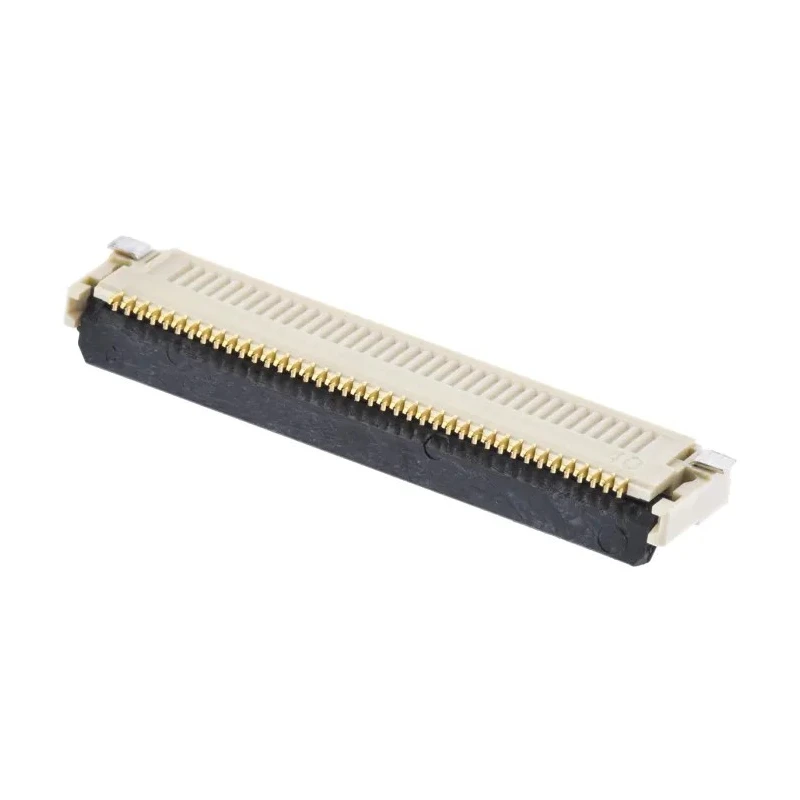

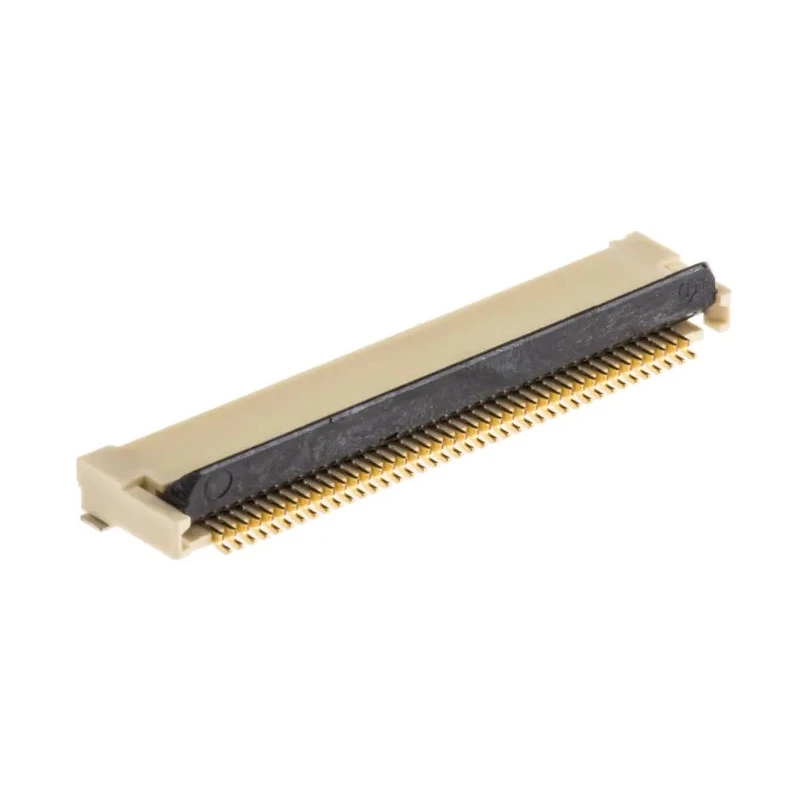

Omron 0.5 mm Pitch 40 Way Right Angle Female FPC Connector, Surface Mount, Solder Termination XF2M

Omron XF2M-4015-1A is a 0.5 mm pitch 40 way right angle female FPC (Flexible Printed Circuit) connector designed for high-performance surface mount applications. This connector features solder termination and supports a current rating of 500 mA at 50 V AC, making it suitable for intricate electronic devices requiring reliable interconnects.

The connector includes a rotary backlock mechanism which provides secure and robust connection with ease during assembly, ensuring improved contact reliability. Its low profile housing, measuring only 2 mm, is constructed from liquid crystal polymer (LCP) with UL94V-0 rating, offering excellent flame retardant properties and mechanical durability.

The 40 contacts are made from copper alloy with gold plating over nickel to guarantee consistent conductivity and resistance to corrosion. The connector supports dual contact positions and a locking mechanism facilitating a firm fit. It accommodates flexible printed circuits with a thickness of 0.3 mm and has a single row contact arrangement, positioned for right angle board connections.

This FPC Connector operates reliably within a temperature range of -30°C to 85°C, appropriate for various industrial and consumer electronics environments. Its compact footprint and low profile design make it an ideal choice for use in small mobile devices such as digital cameras, mobile phones, and digital audio/video equipment.

Features a 0.5 mm pitch for accurate contact spacing. Rated for 40 contacts with female connector gender. Copper alloy contacts plated with gold over nickel for enhanced conductivity. Rotary backlock mechanism ensures secure connections and ease of assembly.

Low 2 mm on-board profile suitable for space-constrained applications. Housing made from flame retardant liquid crystal polymer (LCP). Supports 0.3 mm thick flexible printed circuits with dual contact positions. Operating temperature range from -30°C to 85°C.

Voltage rating of 50 V AC and current rating of 500 mA. Ideal for use in compact consumer electronics like mobile phones and digital cameras.

Omron connectors like the XF2M-4015-1A series are widely used in electronics manufacturing and industrial applications, providing reliable and durable electrical connections for a range of high-tech devices. For further exploration of electronic components and connectors, browse related categories on EnvMart.
