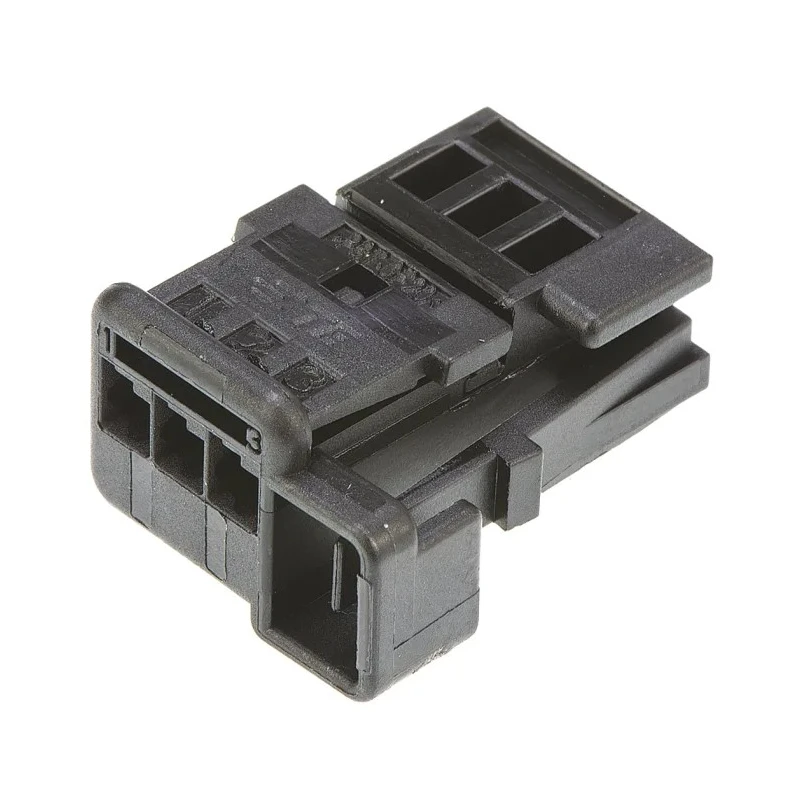

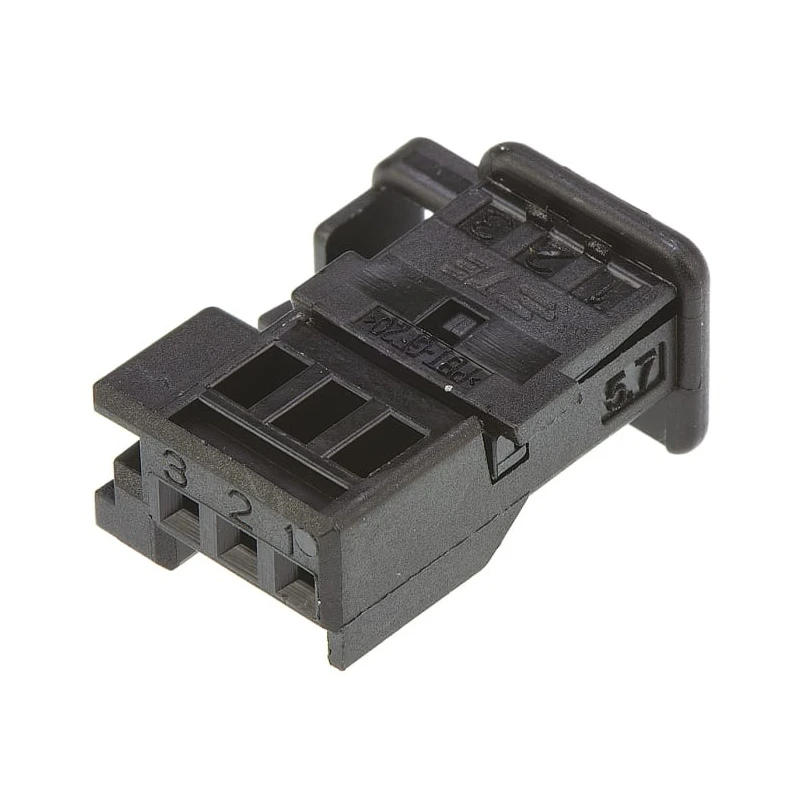

TE Connectivity Micro Quadlok System Automotive Connector Female Black Cable 3 Way Crimp Termination 953697-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 17.6mm |
| Model | 953697-1 |
| Depth | 17.6mm |
| Width | 13.9mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | ELV, REACH, RoHS, UL 94HB |
| Number of Contacts | 3 |
| • Pitch | 2.54mm |
Key Features
- The connector features a 3-contact female configuration with crimp termination.
- It uses a 2.54 mm pitch Micro Quadlok System for secure connections.
- The housing is constructed from polybutylene terephthalate for durability and reliability.
- Operating temperature range spans from -40°C to 80°C, suitable for automotive environments.
- The connector is designed with polarization and keying to prevent mismating during assembly.
- Its compact dimensions (17.6 mm height and depth, 13.9 mm width) allow use in space-constrained applications.
- Sealed versions are available for waterproof connections, enhancing protection.
- Stainless steel locking lances deliver high terminal locking force for contact security.
Product Description
TE Connectivity 953697-1 Micro Quadlok System Automotive Connector is a female cable connector with 3 contacts and crimp termination designed for automotive electrical applications requiring high reliability and compact solutions.
The Micro Quadlok System provides a pitch of 2.54 mm enabling high-density layouts while the polybutylene terephthalate housing material ensures chemical and thermal resistance necessary in automotive environments.
The connector operates from -40°C to 80°C and features built-in polarization and keying to prevent incorrect mating during assembly processes, maintaining system integrity.
Its compact size of 17.6 mm height and depth by 13.9 mm width makes it suitable for tight spaces in powertrain, safety, and driver information systems. The stainless steel locking mechanism secures the contacts firmly within the housing enhancing vibration resistance.
Sealed variants support waterproof requirements when additional sealing components are employed, ideal for harsh environmental exposure in automotive body and chassis systems. The connector supports a cable mount installation type with a single row of 3 female contacts.
It complies with standards including ELV, REACH, RoHS, and UL 94HB for automotive safety and environmental regulations. Applications include powertrain systems, convenience electronics, and body control modules in automotive manufacturing.
Package contents typically include the connector housing ready for assembly with compatible MQS contacts. Additional accessories such as covers and retainer housings can be sourced separately.
Explore the comprehensive range of automotive connectors and components available to support your design and production needs with reliable TE Connectivity solutions, ensuring industry compliance and long-term durability.
Explore more products in our Automotive Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 80°C.
The Micro Quadlok System features a pitch of 2.54 mm.
This connector has 3 contacts.
The connector has a height and depth of 17.6 mm and a width of 13.9 mm.
The housing is constructed from polybutylene terephthalate.
It uses a crimp termination type.
Yes, it operates within a temperature range of -40°C to 80°C, making it suitable for automotive environments.
Yes, it is designed with polarization and keying to prevent mismating during assembly.
It complies with ELV, REACH, RoHS, and UL 94HB standards.
The mount type for this connector is cable mount.
Yes, sealed versions are available for waterproof connections.
It is designed for use in powertrain systems, convenience electronics, and body control modules in automotive manufacturing.
