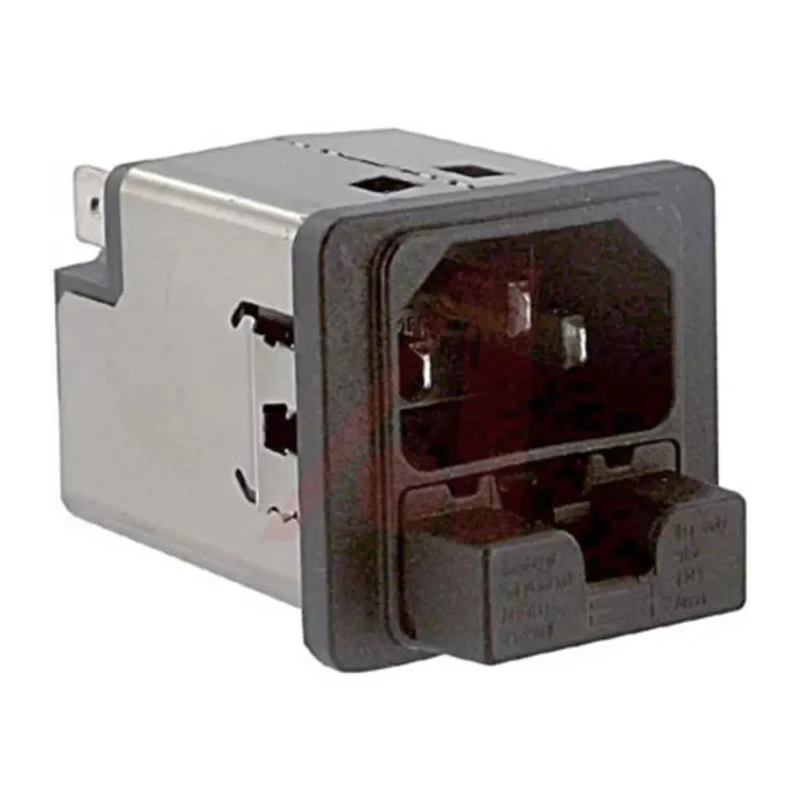

Schurter 250V AC 10A Panel Mount IEC Connector Male 2 Fuse Quick Connect 5220.1043.1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Schurter |
| Current | 10A |
| Height | 36mm |
| Filter Type | Line |
| Depth | 57.8mm |
| Width | 34mm |
| Mount Type | Panel Mount |
| Operating Frequency | 60Hz |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Gender | Male |
| Connector Gender | Male |
| Fuse Size | 5 x 20 mm |
| Number of Fuses | 2 |
| IEC Connector Type | C14 |
Key Features
- Nickel-plated steel body ensures durable and reliable performance.
- Quick connect terminals measure 6.3mm x 0.8mm for easy installation.
- Includes fuse-holder for two 5 x 20 mm fuse-links, facilitating safe protection.
- Operating temperature range from -25°C up to 85°C for diverse conditions.
- Designed to mount on panels and complies with C14 IEC connector type.
- Suitable for electrical, electronic, and household equipment applications.
- Acts as a line filter providing line and inlet protection with fuse holder functionality.
- Compact and ultra-reliable design intended for single-phase and switch-mode power supplies.
Product Description
Schurter 5220.1043.1 Panel Mount IEC Connector is engineered as a male type, ultra-compact inlet filter with C14 connector rated for 250V AC and 10A current. It integrates two fuse holders sized for 5 x 20 mm fuses and features quick connect terminals for efficient wiring. Its nickel-plated steel body provides robust mechanical strength and corrosion resistance.
This connector is specifically designed for panel mount applications in electrical and electronic equipment, including household devices and single-phase or switched-mode power supplies. It functions effectively as a line filter offering class I inlet protection as well as fuse holder capability to ensure overcurrent safety.
The operating temperature range of -25°C to 85°C ensures reliable use under various environmental conditions. The quick connect termination (6.3mm x 0.8mm) allows for convenient assembly and maintenance, including plug removal for fuse replacement.
Applications extend to industrial, laboratory, manufacturing, HVAC, and residential electrical equipment where secure and dependable AC power connectivity and protection are critical. This product is compliant with major electrical safety standards ensuring peace of mind in sensitive installations.
Nickel-plated steel body for durability and corrosion resistance. Quick connect terminals for 6.3mm x 0.8mm connections. Incorporates two fuse holders for 5 x 20 mm fuses. Operating temperature from -25°C to 85°C. C14 IEC Panel Mount male connector type.
Ideal for electrical, electronic, household, and power supply equipment. Provides line filtering and inlet protection with fuse holder functionality. Compact and reliable design suited for single-phase and switch-mode power supplies.
Explore more IEC Connectors and power entry modules to suitable industrial and commercial electrical wiring applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 250V AC and 10A current.
The operating temperature range is from -25°C to 85°C.
It is designed for panel mount applications.
It includes two fuse holders sized for 5 x 20 mm fuses.
The dimensions are 36mm in height, 34mm in width, and 57.8mm in depth.
It features quick connect terminals measuring 6.3mm x 0.8mm for efficient wiring.
Yes, it is intended for use with single-phase and switch-mode power supplies.
It is suitable for electrical, electronic, and household equipment applications.
It acts as a line filter providing line and inlet protection with fuse holder functionality.
The connector has a male contact gender.
The country of origin is India.
The maximum operating frequency is 60Hz.
