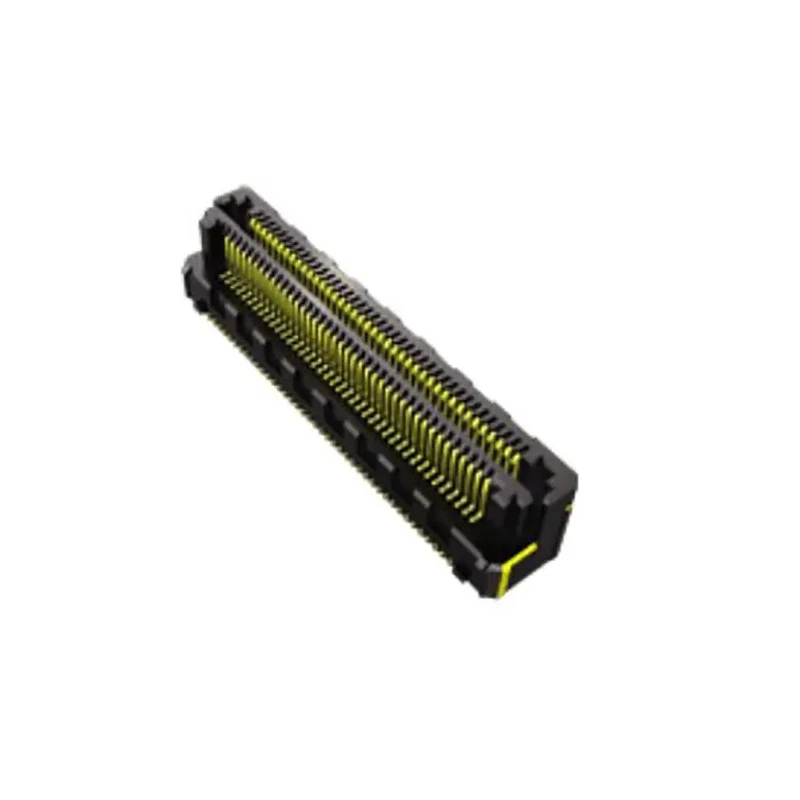

Samtec High-Density Right Angle Surface PCB Header 80 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-140-01-L-DH-A-S-K-TR

Samtec LSHM-140-01-L-DH-A-S-K-TR is a robust, high-density right angle surface mount PCB header designed for industrial electronic components and board-to-board connectivity applications. This connector features 80 gold-plated phosphor bronze contacts arranged in 2 rows with a fine 0.5 mm pitch. The housing is made from durable liquid crystal polymer, providing excellent mechanical strength and electrical insulation.

With a shrouded design, the connector offers enhanced protection against damage and contamination, making it well-suited for rugged environments. It supports a current rating of 2A and voltage ratings up to 226V AC, enabling it to handle moderate power signals safely. The operating temperature range from -55°C to 125°C ensures reliable performance in a wide spectrum of temperature conditions commonly encountered in industrial and commercial electronics.

This surface mount, solder termination connector system is optimized for high-density PCB applications where board-to-board connections are critical. Its right angle orientation facilitates compact PCB layouts and space-saving designs. The connector also delivers mating and unmating forces approximately 4 to 6 times greater than typical micro pitch connectors, ensuring stable and secure connections under demanding mechanical stress.

80 contacts arranged in 2 rows with 0.5 mm pitch. Liquid crystal polymer housing for mechanical stability. Gold-plated phosphor bronze contacts for excellent conductivity and corrosion resistance. Supports current up to 2A and voltage up to 226V AC.

Operating temperature range: -55°C to 125°C suitable for harsh environments. Right angle, surface mount header designed for board-to-board connections. Shrouded design provides additional protection and durability. Ideal for industrial, electronic, and laboratory circuit board applications.

This PCB header is an essential component for electronic assembly tasks requiring reliable, high-density interconnections. Explore the extensive Samtec connector range at EnvMart for compatible accessories and related products.
