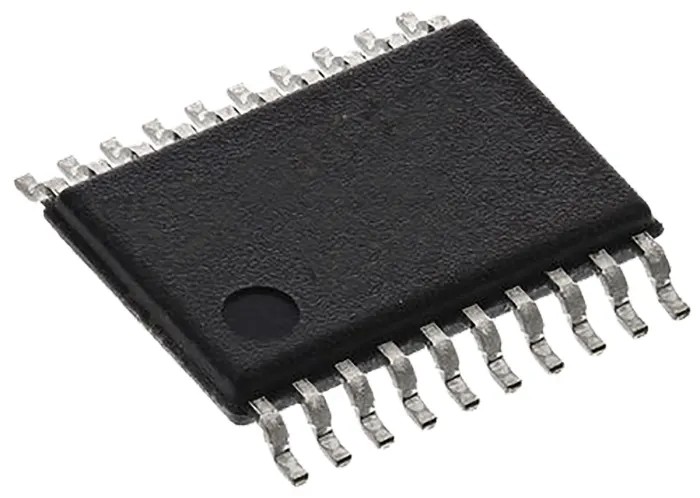

Renesas Electronics Digital Potentiometer 256 Positions, 10 kΩ, Linear, 3-Ch, TSSOP, Serial-I2C, X95840WV20IZ-2.7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 0.9mm |
| Length | 6.5mm |
| Model | X95840WV20IZ-2.7 |
| Width | 4.4mm |
| Mount Type | Surface |
| Memory type | Non-Volatile |
| Series | X9584 |
| Temperature Coefficient | 4 ppm/°C |
| Maximum Operating Temperature | 85°C |
| Number of Positions | 256 |
| Resistance | 10kΩ |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Taper Type | Linear |
| Number of Pots per Package | 3 |
Key Features
- 256-position digital potentiometer for precise resistance adjustment.
- 10 kΩ resistance with linear taper for uniform incremental changes.
- Three independent potentiometer channels per package.
- Surface-mount TSSOP form factor suitable for compact PCB designs.
- Serial-I2C interface simplifies integration into digital control systems.
- Non-volatile memory ensures retention of settings after power loss.
- Wide operating voltage range from 2.7V to 5.5V.
- Operating temperature range from -40°C to 85°C for industrial use.
Product Description
Renesas Electronics X95840WV20IZ-2.7 is a high-performance digital potentiometer ideal for advanced electronic applications requiring precise resistance control. This component features a 256-position linear taper, which allows for granular and accurate resistance adjustments in demanding designs such as instrumentation, calibration, and signal conditioning.
Equipped with three independent potentiometer channels within a single package, the X95840WV20IZ-2.7 supports multi-channel requirements, enabling designers to streamline layouts and reduce component count. The device’s 10 kΩ resistance value is well-suited for a wide range of analog signal circuits, providing both flexibility and reliability.
256-position digital potentiometer for fine control over resistance. Linear taper type enables predictable resistance increments. Three channels per device, simplifying parallel signal management. Surface-mount TSSOP-20 package is optimized for space-limited PCBs.
Serial-I2C interface allows easy digital communication and automation. Non-volatile memory ensures configuration retention during power cycles. Voltage operation from 2.7V to 5.5V supports diverse electronic platforms. Robust operation from -40°C to 85°C suitable for industrial and commercial environments.
Applications for this component include feedback circuits, digital volume controls, programmable filters, and precision calibration systems. Its compact size and low temperature coefficient (4 ppm/°C) assure stable performance even under challenging thermal conditions.
The X95840WV20IZ-2.7 digital potentiometer is widely used in industrial automation, laboratory instrumentation, medical electronics, and signal processing boards, bringing reliability to system design and manufacturing.
Explore Renesas Electronics’ range of advanced Digital Potentiometers at EnvMart for high-quality components engineered for demanding industrial, laboratory, and commercial electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The X95840WV20IZ-2.7 has a resistance value of 10 kΩ.
This model features three independent potentiometer channels per package.
It operates within a voltage range of 2.7V to 5.5V.
The operating temperature range is from -40°C to 85°C.
It uses a Serial-I2C interface for communication.
The dimensions are 6.5mm in length, 4.4mm in width, and 0.9mm in height.
It features a linear taper for uniform incremental changes in resistance.
Yes, it includes non-volatile memory to retain settings after power loss.
The temperature coefficient is 4 ppm/°C.
It comes in a surface-mount TSSOP package type.
It is suitable for applications such as feedback circuits, digital volume controls, and precision calibration systems.
This digital potentiometer supports 256 positions for precise resistance adjustment.
