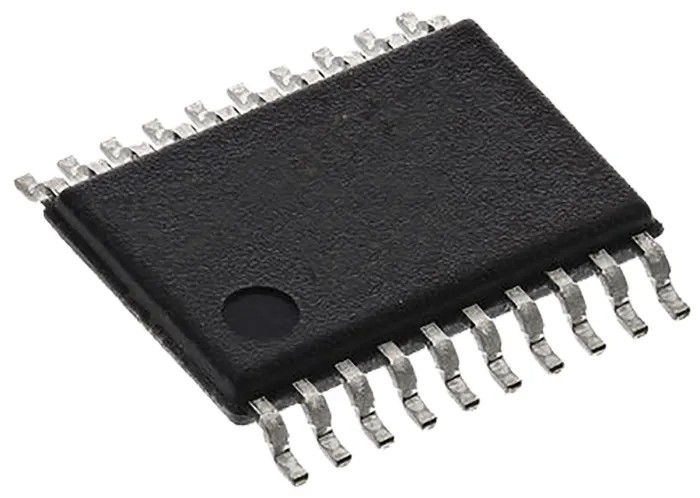

Renesas Electronics Digital Potentiometer 256-Position 10 kΩ Linear 3-Channel 20-Pin TSSOP X95840WV20IZ-2.7

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics Digital Potentiometer 256-Position 10 kΩ Linear 3-Channel 20-Pin TSSOP X95840WV20IZ-2.7

Name: Renesas Electronics Digital Potentiometer 256-Position 10 kΩ Linear 3-Channel 20-Pin TSSOP X95840WV20IZ-2.7
Brand: Renesas Electronics
SKU: 413610
Price: 12.33 USD
Availability: InStock



Category Digital Potentiometer Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	0.9mm
Length	6.5mm
Model	X95840WV20IZ-2.7
Width	4.4mm
Mount Type	Surface
Memory type	Non-Volatile
Series	X9584
Temperature Coefficient	4 ppm/°C
Maximum Operating Temperature	85°C
Number of Positions	256
Resistance	10kΩ
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Interface Type	Serial-I2C
Pin Count	20
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.7V
Taper Type	Linear
Number of Pots per Package	3

Key Features

Offers precise 256-position resolution for fine tuning.
Linear taper type for predictable resistance control.
Non-volatile memory preserves last settings.
Operates over a voltage range of 2.7 V to 5.5 V.
Temperature range from -40°C to 85°C supports harsh environments.
Compact 20-pin TSSOP surface mount package with dimensions 6.5 x 4.4 x 0.9 mm.
Interface supports serial I2C communication protocol.
Three potentiometers integrated in package suitable for multifunction applications.

Product Description

Renesas Electronics X95840WV20IZ-2.7 is a high-resolution digital potentiometer featuring 256-position 10 kΩ linear resistance arranged in a 3-channel configuration within a space-saving 20-pin TSSOP surface mount package.

This device provides precise resistance adjustments with a linear taper and retains settings thanks to its non-volatile memory. It supports supply voltages from 2.7 V minimum up to 5.5 V maximum, making it compatible with many electronic circuits including power management and signal conditioning.

The temperature operation range of -40°C to 85°C allows its use in industrial and automotive electronics where environmental robustness is critical. Its serial I2C interface simplifies integration and control in embedded systems and data converter assemblies.

The compact dimensions (6.5 mm length, 4.4 mm width, and 0.9 mm height) make it suitable for high-density PCB layouts in communication, HVAC, industrial automation, and laboratory instrumentation.

Precise 256-step digital resistance control. Linear taper for consistent resistance changes. Non-volatile memory retains potentiometer settings. I2C serial interface for ease of communication. Wide operating temperature range suitable for harsh conditions.

Surface mount TSSOP 20-pin package for compact PCB design. Three potentiometers in a single package for multifunction use. Low temperature coefficient ensures signal stability.

This Digital Potentiometer is a reliable component for designers working on electronic modules, control systems, and measurement instruments, offering enhanced precision and stability.
