Omron 0.5 mm Pitch 10 Way Right Angle Female FPC Connector with Solder Termination XF2M

Free Delivery in India | Lowest Global Shipping Charges

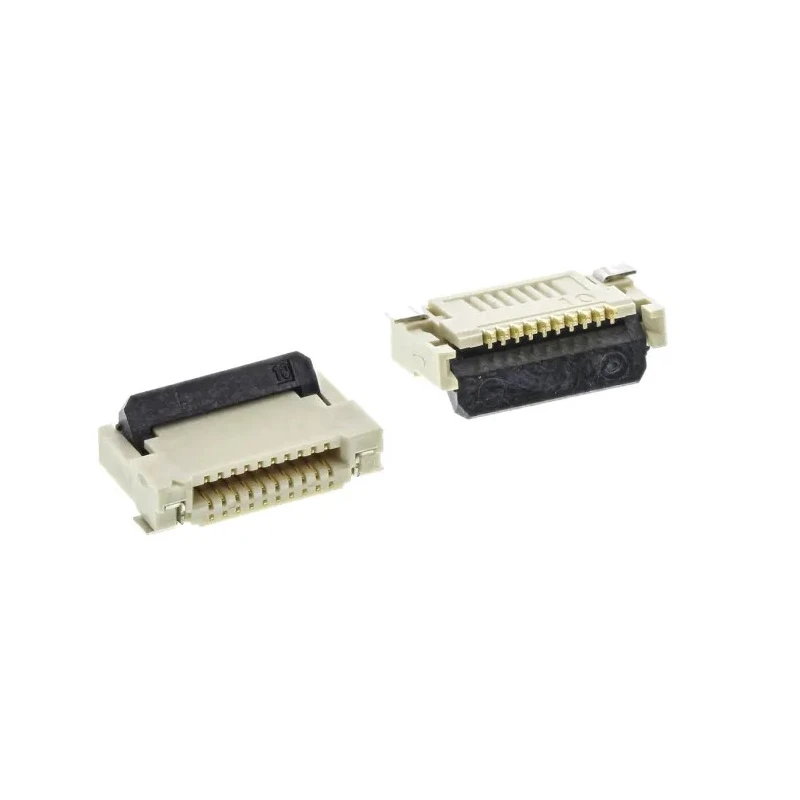

Omron 0.5 mm Pitch 10 Way Right Angle Female FPC Connector with Solder Termination XF2M

Name: Omron 0.5 mm Pitch 10 Way Right Angle Female FPC Connector with Solder Termination XF2M
Brand: Omron
SKU: 222439
Price: 1.03 USD
Availability: InStock



Category FPC Connector Brand Omron Condition New

Specifications

Country of Origin	China
Voltage	50, 50V ac
Brand	Omron
Orientation	Right Angle
Current	500mA
Model	XF2M
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	XF2M
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Easy-On FFC/FPC Connector
Minimum Operating Temperature	-30°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Gold over Nickel
Number of Contacts	10
Contact Gender	Female
Connector Gender	Female
Contact Position	Dual

Key Features

Features a 0.5 mm pitch with 10 contacts for precise connectivity.
Right angle, surface mount type suitable for compact PCB designs.
Equipped with a rotary backlock mechanism ensuring secure and reliable FPC mounting.
Constructed with liquid crystal polymer housing and gold-over-nickel plated copper alloy contacts for durability.
Operates reliably between -30°C and 85°C with a voltage rating of 50 V AC and current rating of 500 mA.
Compatible with FPC thicknesses up to 0.3 mm and includes dual contact positions for enhanced connection.
Locking mechanism enhances assembly ease and connection security.
Halogen-free materials contribute to environmental safety.

Product Description

Omron XF2M 0.5 mm Pitch 10 Way Right Angle Female FPC Connector with solder termination is designed for high-reliability and low-profile electronic applications. This connector features a 0.5 mm pitch and a compact 2 mm on-board profile, making it suitable for space-constrained devices.

The rotary backlock mechanism facilitates easy installation and provides a secure connection that resists disconnection under vibration and mechanical stress. The liquid crystal polymer housing complies with UL94V-0 flammability standards, ensuring electrical safety and resilience.

This connector has a surface mount type configuration with right angle orientation optimized for compact PCB layouts. Its contacts are made from a copper alloy and plated with gold over nickel to ensure stable electrical performance and corrosion resistance.

Operating voltage is rated at 50 V AC, supporting currents up to 500 mA, and the connector withstands temperatures from -30°C to 85°C, suitable for typical industrial and consumer electronic environments.

The single-row configuration with dual contact positions increases connection reliability, while the locking mechanism secures the FPC firmly, aiding assembly efficiency. 0.5 mm pitch with 10-way female contacts. Rotary backlock mechanism for reliable and secure mounting.

Liquid crystal polymer housing with UL94V-0 rating. Gold over nickel plated copper alloy contacts. Surface mounted, right angle orientation for compact PCB integration. Operating temperature range of -30°C to 85°C. Voltage rating of 50 V AC and current rating of 500 mA.

Halogen-free and environmentally compliant materials. Applications include mobile phones, cameras, and other small electronics.

This product is an ideal choice for industrial, laboratory, manufacturing, and consumer electronic applications requiring compact and reliable FPC connectors. Browse more FPC Connectors and related components on EnvMart for comprehensive electronic solutions.
