Omron 0.5 mm Pitch 20 Way Right Angle Female FPC Connector, Solder XF2M

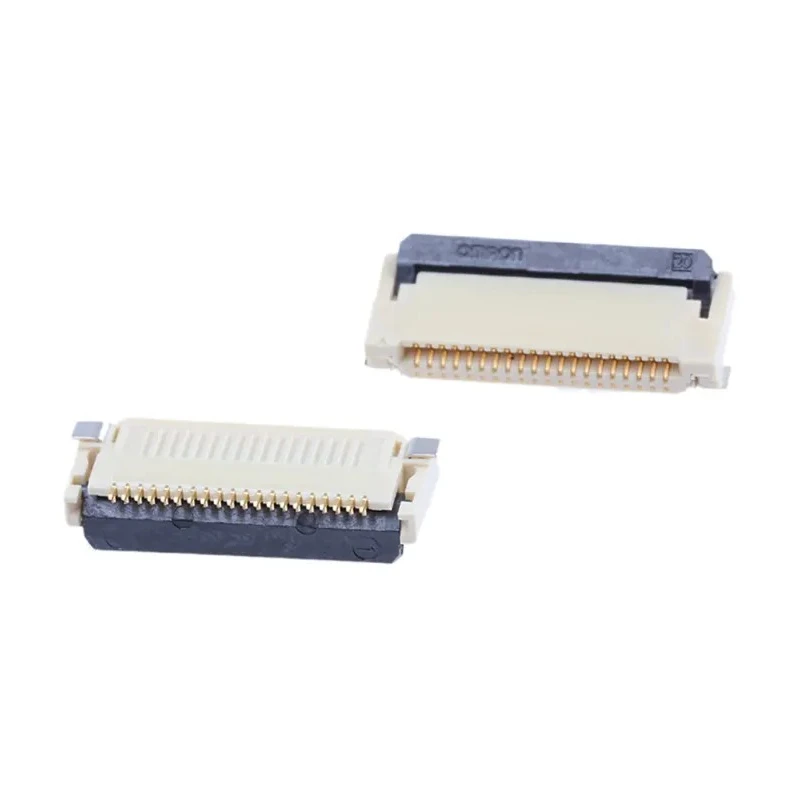

Omron XF2M-2015-1A is a 0.5 mm pitch, 20 way, right angle female FPC connector designed for compact and precise electronic component applications. Featuring solder termination and a rotary backlock mechanism, this connector ensures secure and reliable mounting of flexible printed circuits (FPCs) with enhanced contact reliability.

The 0.5 mm pitch connector has a low profile height of only 2 mm above the board, making it suitable for space-constrained designs in modern digital devices. The contact pins are double-sided in a single row and plated with gold over nickel to provide excellent electrical contact and durability. The housing is constructed from liquid crystal polymer (LCP) resin which offers mechanical strength and UL94V-0 flammability rating.

This female connector supports a current rating of 500 mA and can operate at voltages up to 50 V AC. Its operating temperature range from -30°C to 85°C allows usage in various environmental conditions. The connector also features a locking mechanism for secure assembly and side entry SMT mount style.

Common applications include small mobile electronic devices such as digital cameras, mobile phones, digital audio and video players, DVD players, and digital video cameras where low profile and secure connections are critical.

Rotary backlock mechanism for secure FPC connection. Low profile 2 mm height to save board space. Gold over nickel plated copper alloy contacts ensure conductivity. Liquid crystal polymer housing provides strength and flame resistance.

Operating voltage up to 50 V AC and current of 500 mA. Suitable for side entry SMT mounting and dual contact positions. Single row configuration with 20 contacts. Halogen free materials support eco-friendly applications.

Designed for small mobile and digital consumer electronics devices.

This connector is a component of the Omron XF2M series, known for reliable and compact FPC connectors. It is an ideal choice in electronics manufacturing categories such as PCB connectors for industrial, consumer electronics, and communication devices. Explore similar FPC Connectors and related components at EnvMart for your industrial and manufacturing needs.
