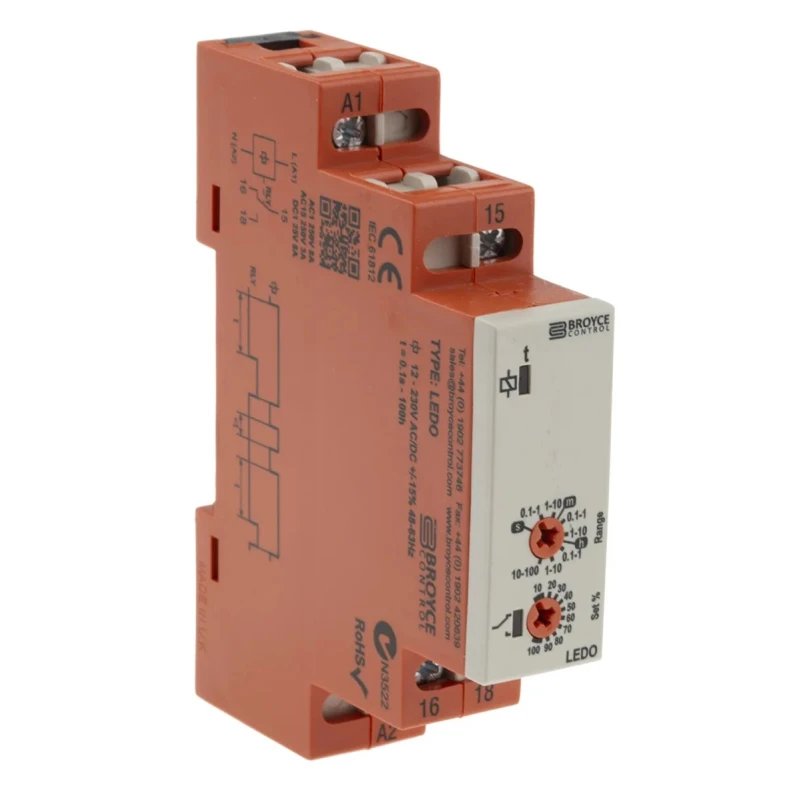

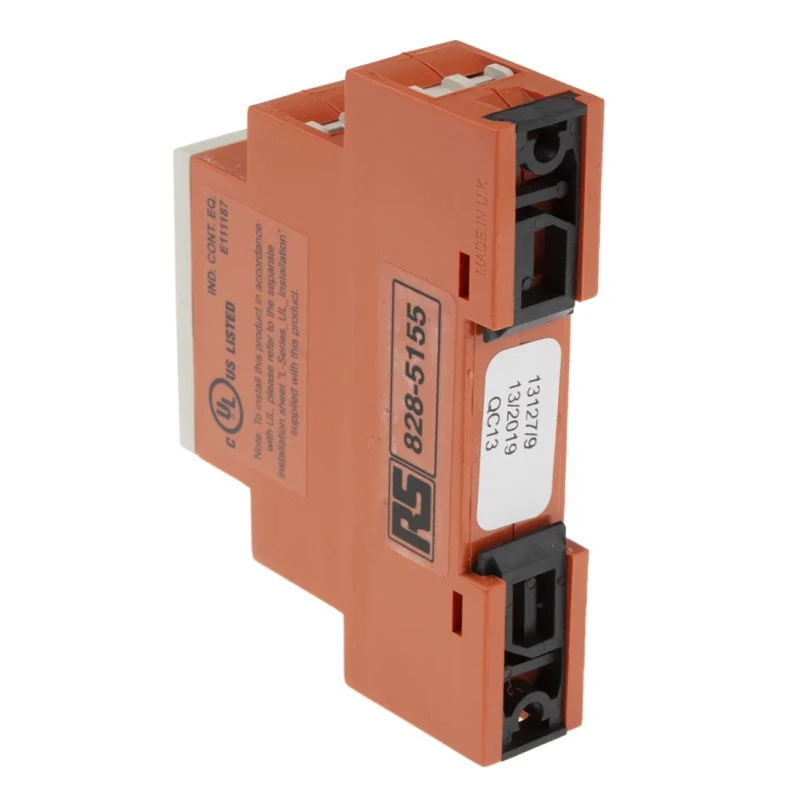

Broyce Control LEDO Series DIN Rail Timer Relay, 1-Contact, 230 V dc 12V ac, 230 V ac, 0.1 s to 100 h LEDO 12-230V AC/DC

Broyce Control LEDO 12-230V AC/DC DIN Rail Timer Relay is a high precision, solid-state single-function device designed to provide reliable ON operate delay timing between 0.1 seconds and 100 hours. This relay utilizes a compact 17.5mm housing suitable for DIN rail mounting in control panels.

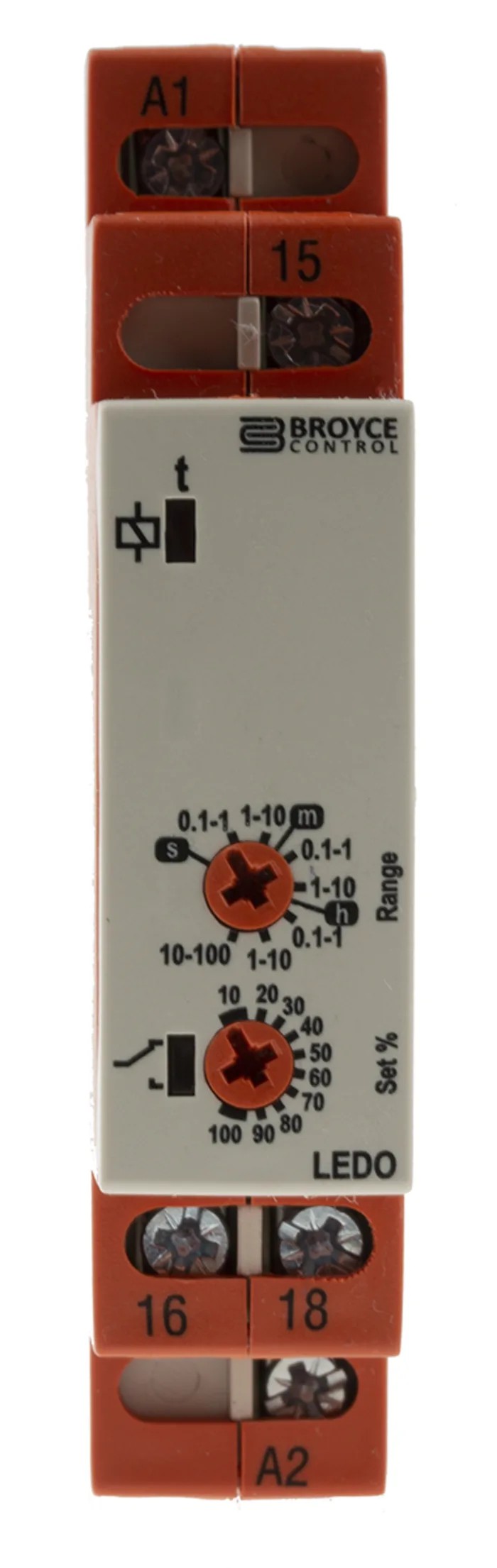

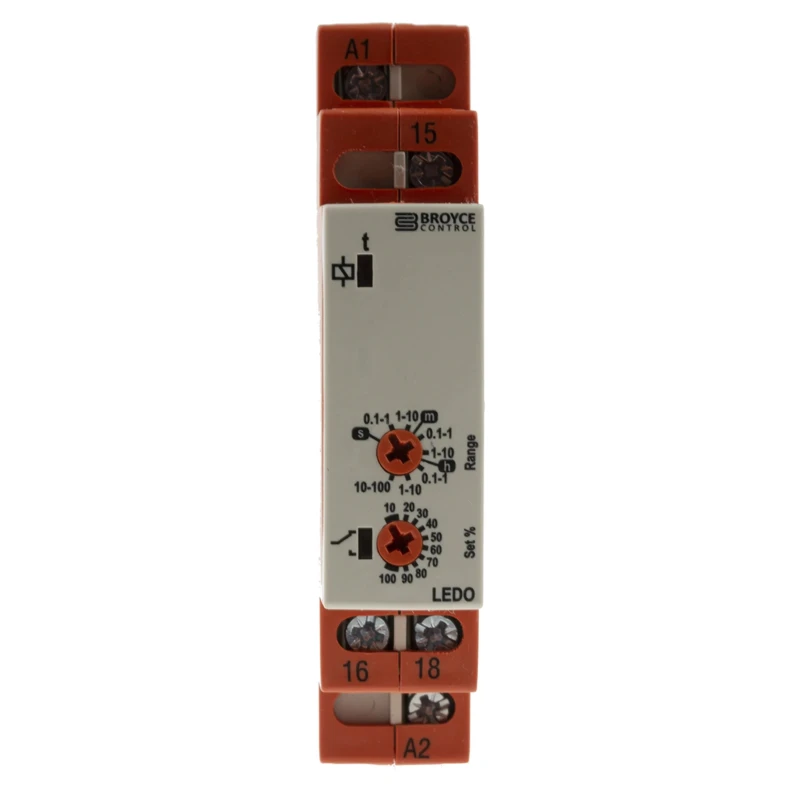

The timer features two selectable rotary switches on the front panel allowing users to easily select one of seven time ranges ranging from 0.1 seconds to 100 hours with fine adjustment capabilities via screwdriver slot. The relay output is configured as a single-pole double-throw (SPDT) contact rated for 8A.

Its supply voltage range spans from 12V AC to 230V AC and 12V DC to 230V DC, supporting versatile installation environments. The unit includes green LED indicators to display power and timing status, and a red LED to indicate relay activation. The operating temperature range from -20°C to 60°C ensures stable performance in industrial settings.

Typical industrial applications include process control in textiles, chemical and mining industries, irrigation systems, raw material handling, and food and beverage processing.

The relay complies with international standards including CE, IEC, UL, and is IP20 rated providing protection for terminals. Its screw terminal type allows secure and straightforward wiring.

The relay supports 7 selectable time ranges for versatile timing setups. Operates over a wide supply voltage range of 12V AC to 230V AC and 12V DC to 230V DC. Compact design with a 17.5mm housing for DIN rail mounting. Indicators include green LED for supply and timing, red LED for relay status.

Constructed for industrial environments with temperature compatibility from -20°C to 60°C. SPDT contact rated for 8A contact current ensures reliable switching. Timing adjustment available via screwdriver slot rotary switches for ease of programming.

Complies with CE, IEC, UL standards, and is IP20 rated for terminal protection. Ideal for use in textiles, chemical industry, mining, irrigation, raw material handling, food and beverages, and industrial process control.
