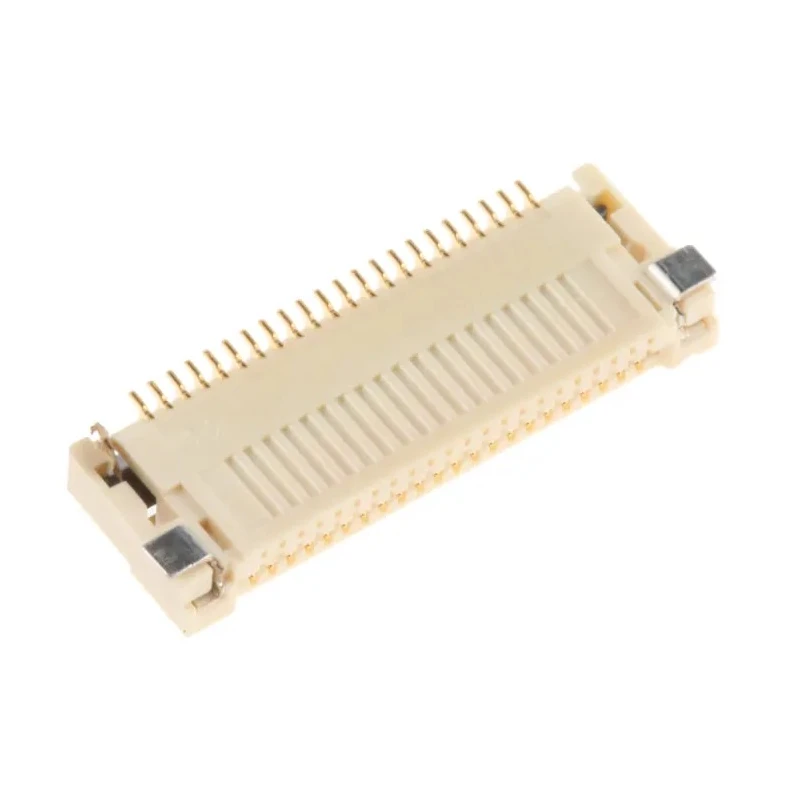

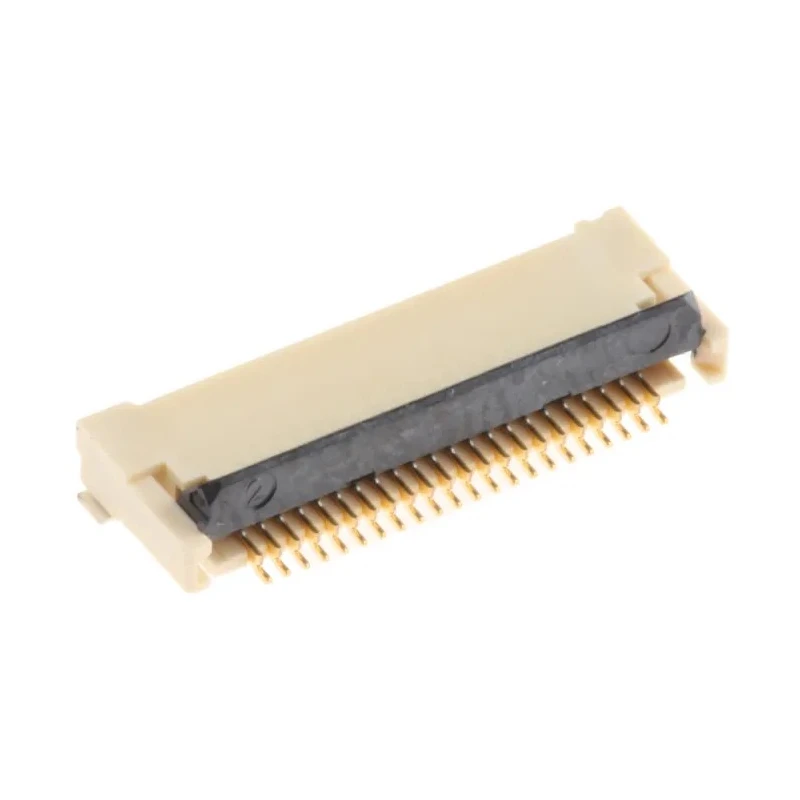

Omron 0.5 mm Pitch 22 Way Right Angle Female FPC Connector, Surface Mount Solder Termination XF2M

Omron XF2M-2215-1A is a 0.5 mm pitch female FPC connector designed for compact and reliable electronic connections in industrial and consumer electronics. This 22 way connector features a right-angle orientation and surface mount solder termination tailored for use on printed circuit boards.

The connector incorporates a rotary backlock mechanism enhancing contact reliability and simplifying assembly in tight spaces. Its low-profile design with a 2 mm on-board height makes it ideal for use in small mobile and portable devices such as digital cameras, mobile phones, DVD players, and digital video cameras.

The contact material is high-quality beryllium copper nickel plated with gold, ensuring excellent conductivity and resistance to corrosion. The housing is made from liquid crystal polymer (LCP) rated UL94V-0 for flame retardance, sturdiness, and longevity.

Operational specifications include a current capacity of 500 mA, voltage rating of up to 50 V AC, and reliable performance across a temperature range from -30°C to 85°C. The connector is designed for 0.3 mm flexible printed circuit (FPC) thickness with side entry SMT terminals, facilitating easy installation and maintenance.

Rotary backlock mechanism for secure connection. Low 2 mm on-board profile suitable for tight spaces. Beryllium copper nickel contact material with gold plating. UL94V-0 rated liquid crystal polymer housing. Halogen-free materials ensure safety and compliance.

Single row, dual-sided contacts with locking mechanism. 500 mA current rating and 50 V AC voltage rating. Operating temperature range from -30°C to 85°C. Side entry surface mount solder termination for PCB mounting. Ideal for mobile devices and consumer electronics applications.

This Omron FPC Connector is manufactured in China and supplied in new condition, ready for industrial, manufacturing, and electronic assembly applications. It supports precision, durability, and efficient production to meet modern electronics requirements.
