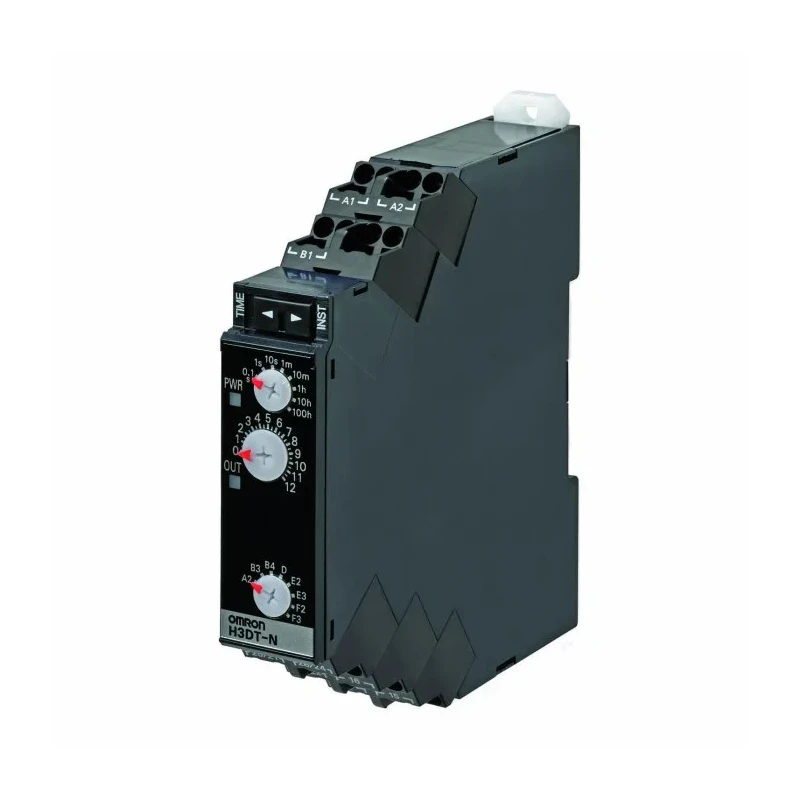

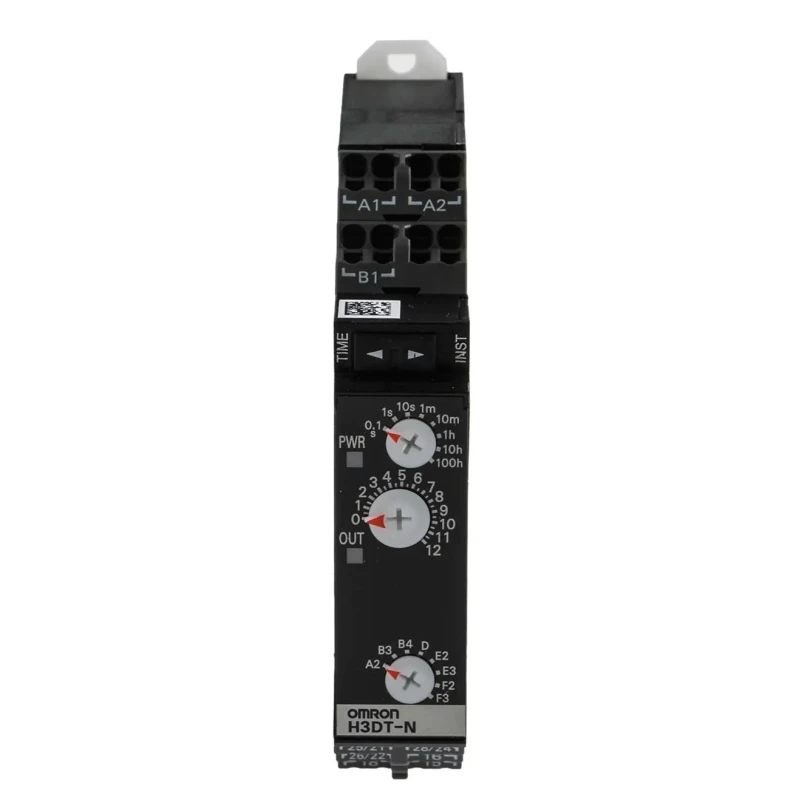

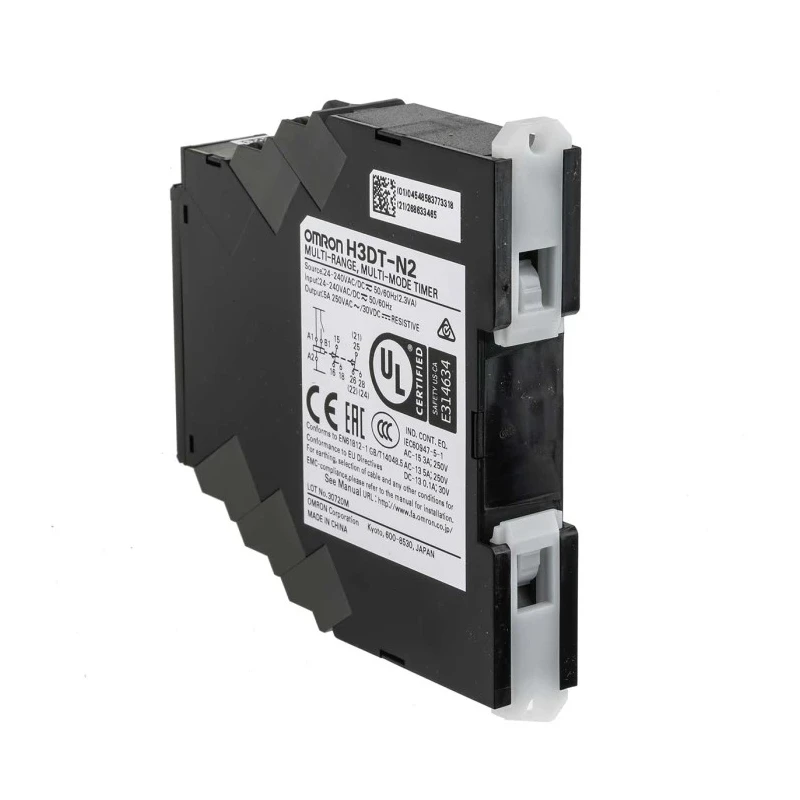

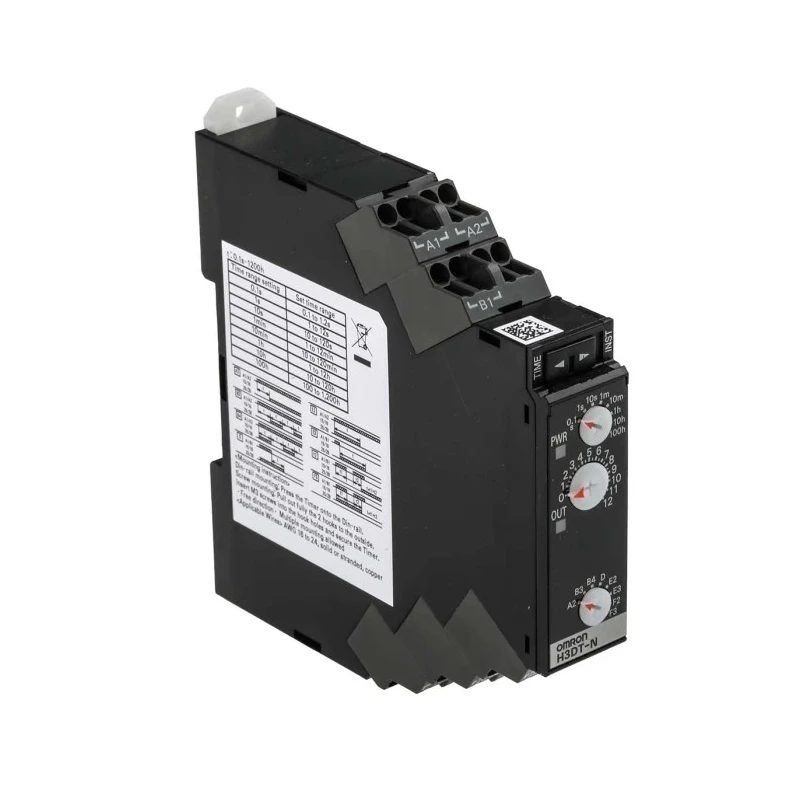

Omron Multifunction DIN Rail Timer Relay, 4-Contact DPDT, 24-240 V AC/DC, 0.1 s to 100 h Time Range H3DT

Free Delivery in India | Lowest Global Shipping Charges

Omron Multifunction DIN Rail Timer Relay, 4-Contact DPDT, 24-240 V AC/DC, 0.1 s to 100 h Time Range H3DT

Name: Omron Multifunction DIN Rail Timer Relay, 4-Contact DPDT, 24-240 V AC/DC, 0.1 s to 100 h Time Range H3DT
Brand: Omron
SKU: 138611
Price: 169.63 USD
Availability: InStock



Category Timer Relays Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	100mm
Function	Timer, Offset Double Ring End
Length	17.5mm
Model	H3DT
IP Rating	IP20, IP30
Mode	Multifunction
Width	90mm
Mount Type	DIN Rail
Series	H3DT
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-20°C
Time Range	0.1 s to 100 h
Terminal type	Screw
Number of Contacts	4
Number of Timer Functions	Multifunction
Switching Voltage	250V ac
Contact Current	5A
Supply DC Voltage	240 V dc
Timing Adjustment	Dial
Supply AC Voltage	24, 240V ac

Key Features

Designed for precise timing control in industrial automation systems.
Operates on both AC and DC supply voltages from 24 V to 240 V.
Time range adjustable via dial from 0.1 second up to 100 hours.
Features DPDT contact configuration for versatile switching applications.
Maximum contact current rating of 5A ensures reliable performance.
Screw terminal type for secure and easy wiring installation.
Compact DIN rail mount with dimensions 100mm (H) x 90mm (W) x 17.5mm (L).
IP20 and IP30 rated for protection in control panel environments.

Product Description

Omron H3DT multifunction DIN Rail Timer Relay offers precise control with a wide time range of 0.1 seconds to 100 hours, suitable for both AC and DC voltages from 24 to 240 V. This relay is engineered for diverse industrial automation applications where timing accuracy and reliable switching are paramount.

The device features 4 contacts with a DPDT configuration and a maximum contact current of 5A, compatible with various control circuits and automation processes. Its dial-adjustable timing range enhances ease of setting specific delays.

The relay is designed for installation on standard DIN rails, providing a compact footprint measuring 100mm in height, 90mm in width, and 17.5mm in length. The screw terminal connections facilitate secure wiring in electrical control panels.

With protection ratings of IP20 and IP30, the relay withstands typical industrial environmental conditions. Operating temperature ranges from -20°C to 60°C, making it versatile for various industrial settings.

Multi-voltage operation between 24V to 240V AC/DC ensures flexible system integration. DPDT contact switching accommodates diverse load requirements up to 5A. Time range from 0.1 s to 100 h caters to short-term and long-duration timing applications.

DIN rail mount simplifies installation and maintenance within electrical enclosures. Compliant with international standards such as UL 508, CSA C22.2 No. 14, EN 61812-1, CCC, IEC 60664-1, and certificated by DNV GL ensures safety and reliability.

This timer relay is ideal for use in industrial automation systems, manufacturing processes, machinery control, electrical control panels, and any applications requiring precise timed switching functionalities.

Explore EnvMart's wide range of Omron Timer Relays and automation components to support your control system needs.
