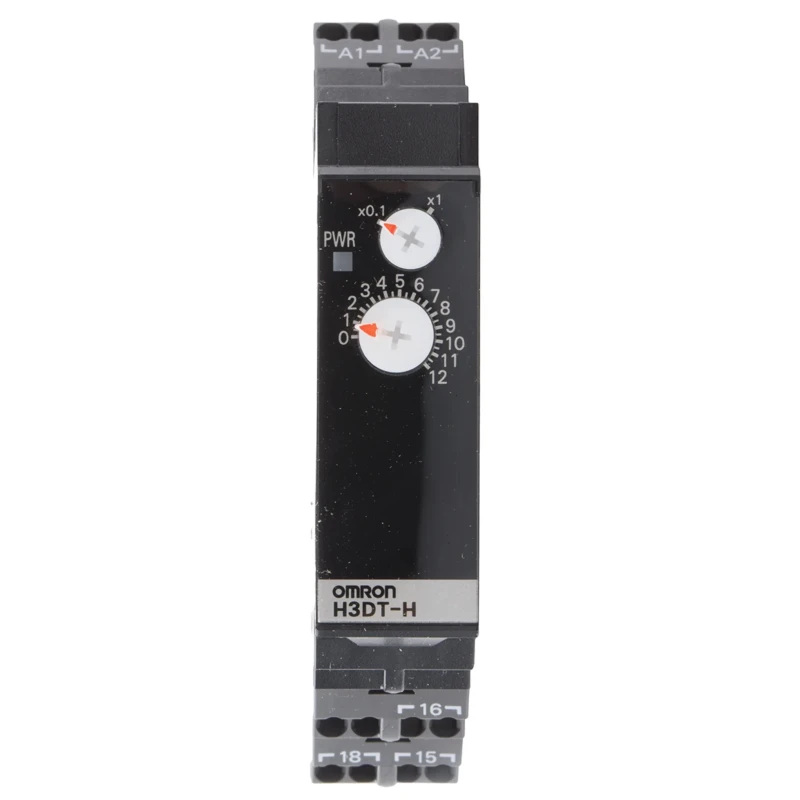

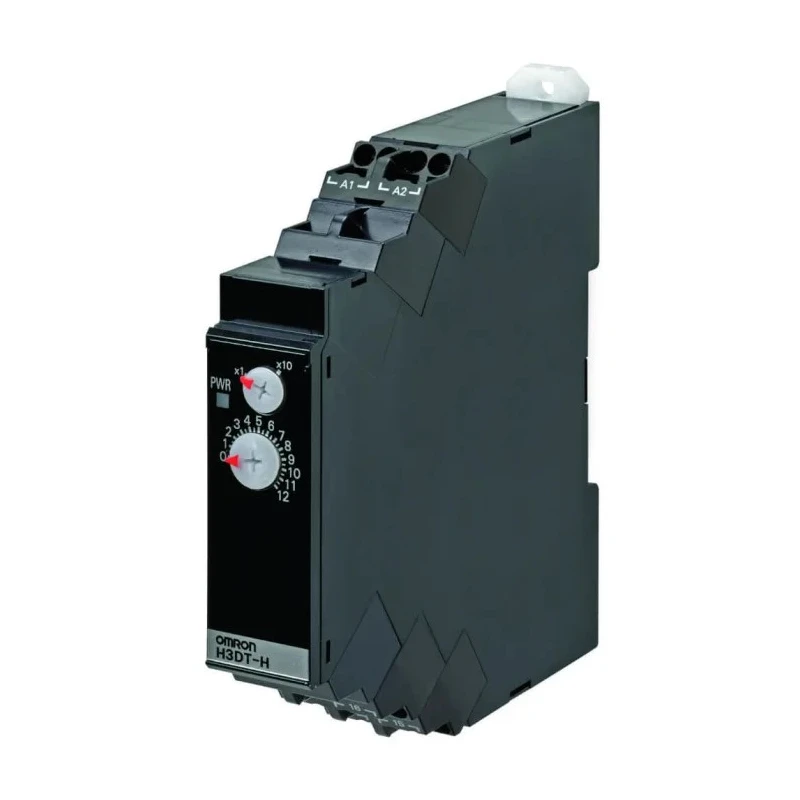

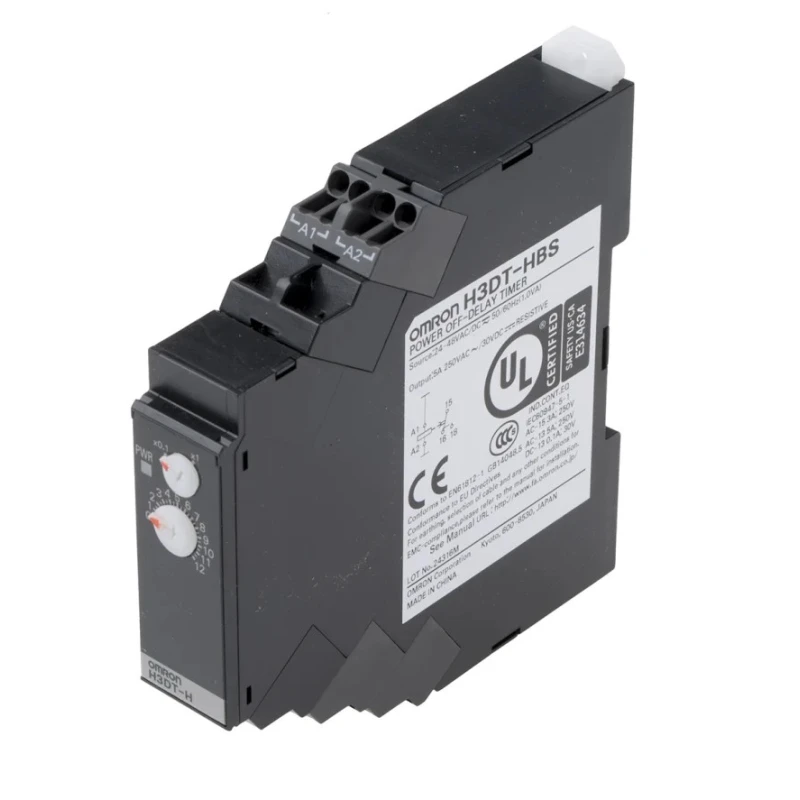

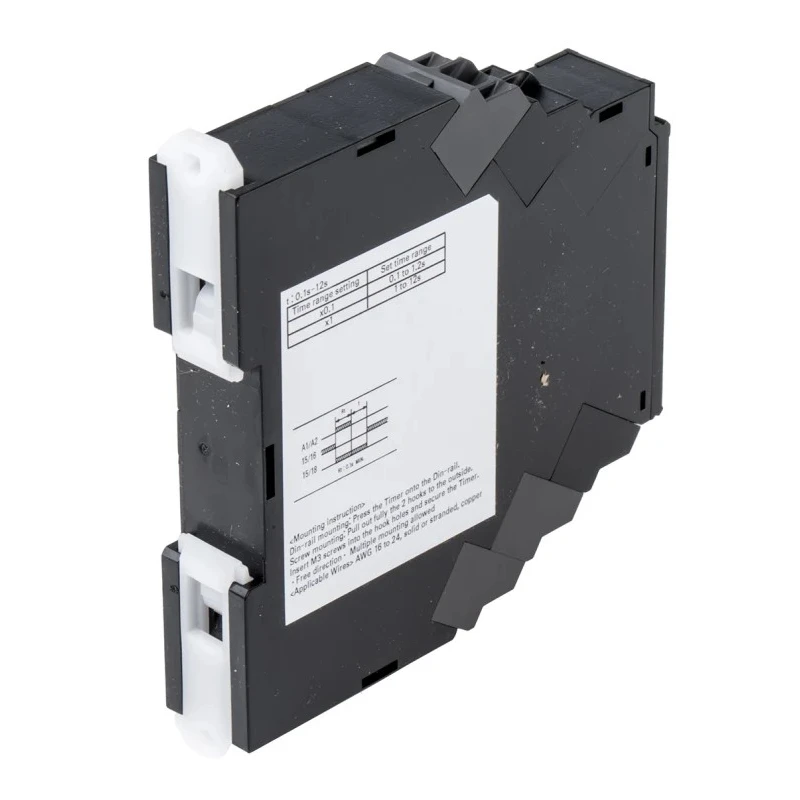

Omron DIN Rail Solid State Timer, Power Off Delay, 2-Contact, 240 V dc, 48 V ac, 1 to 120 s, SPDT Switch H3DT

Omron H3DT Series DIN Rail Solid State Timer is engineered for industrial automation and control panel applications. The timer offers reliable Power Off Delay operation with a time range adjustable from 1 to 120 seconds, suitable for precise control requirements.

This model supports wide supply voltage inputs, 240 V DC and 48 V AC, enabling flexible deployment in diverse electrical environments. Its 2-contact SPDT configuration allows robust switching capacity up to 5A and 250 V AC switching voltage, matching rigorous industrial standards.

The timer features a compact and slim design with a width of only 17.5 mm, ideal for space-saving panel layouts. Timing adjustment is conveniently managed through a dial, facilitating easy setup and maintenance.

Built to withstand challenging environments, it operates reliably within a temperature range of -20°C to 60°C. The IP20 and IP30 ratings provide adequate protection against dust and external ingress, enhancing durability.

Screw-type terminal connections ensure a secure and stable wiring interface, supporting efficient installation and serviceability. The device complies with multiple standards including LR:ENV1.2, CCC:GB 14048.5, RoHS, EN 61812-1, DNV GL, and UL 508/CSA C22.2 No. 14.

Omron's H3DT solid state timer is suitable for use in industrial automation, manufacturing processes, electrical control panels, and timing critical HVAC and commercial applications.

Designed for DIN rail mounting in control panels and electrical systems. Operates with a wide supply voltage range of 240 V DC and 48 V AC. Compact slim design measuring 17.5 mm width for efficient space utilization. Offers precise timing adjustment using a dial mechanism.

Supports contact current up to 5A with SPDT contact configuration. Rated switching voltage is 250 V AC suitable for various industrial applications. Features power-off delay mode ideal for timing control in automation processes.

Temperature operating range from -20°C to 60°C ensures reliable operation under harsh conditions. IP20 and IP30 rating provide protection against solid objects and limited ingress of objects. Terminals are screw type for secure and easy wiring installations.
